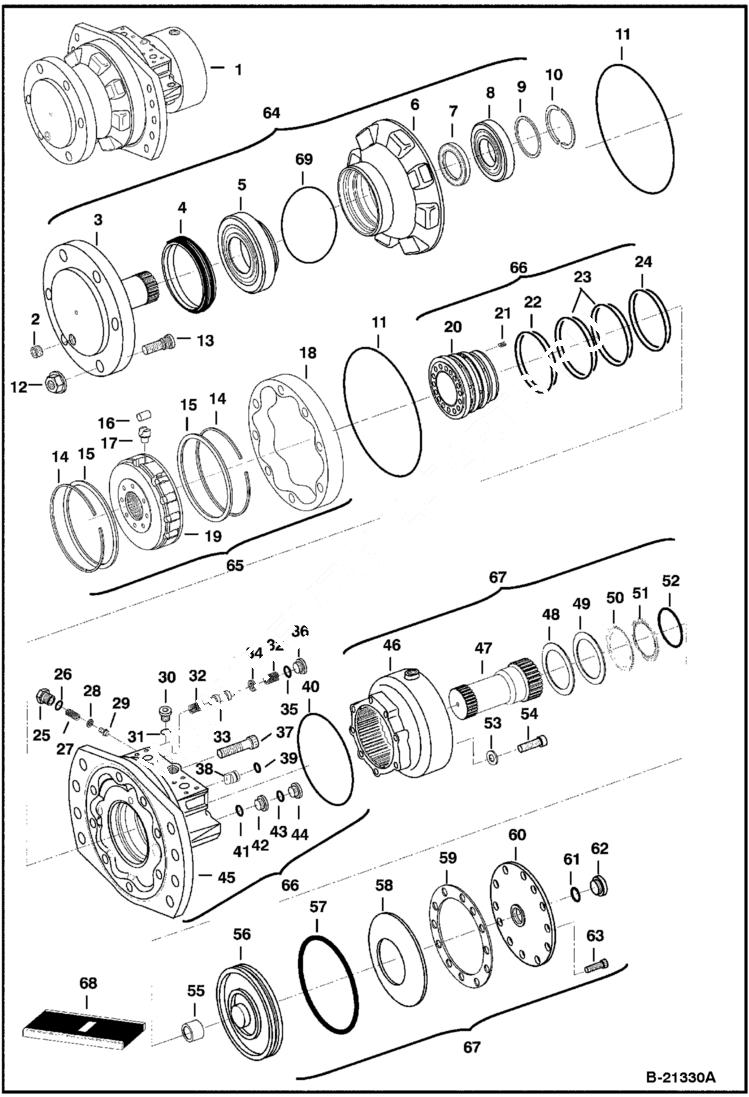

Запчасти Bobcat T-Series HYDROSTATIC MOTOR & BRAKE HYDROSTATIC SYSTEM

1

MOTOR See BTI378 NLA - model 80687532 or model 5840-003-079 - W/ twin distributor seals - Was 6680250 - A

2

6680019

PLUG

3

6681620

SHAFT

4

6674727

SEAL, OIL

5

6674725

BEARING

6

6681621

HOUSING

7

6691212

SEAL Was 6674056 - D

8

6660018

BEARING, MOTOR DRIVE

9

WASHER NLA - preload - .083'' (2,1mm) thick - Use Kit 6692444 - Was 6674058 - A

9

WASHER NLA - preload - .091'' (2,3mm) thick - Use Kit 6692444 - Was 6674059 - A

9

WASHER NLA - preload - .098'' (2,5mm) thick - Was 6689116 - A

9

WASHER NLA - preload - .108'' (2.75mm) thick- Use Kit 6692444 - Was 6674061 - A

10

6660016

RING, SPLIT

11

6676597

O-RING

12

6691215

NUT Was 6674724 - A

13

6674706

STUD

14

SNAP RING NSS - Order Ref. 19

15

RETAINER NSS - Order Ref. 19

16

ROLLER NSS - Order Ref. 19

17

PISTON NSS - Order Ref. 19

18

6674065

CAM Was 6675234 - A

19

BLOCK NLA - Order 6690156 or 6690156REM - W/Ref. 14-17 - Was 6676907 - A

20

6676909

DISTRIBUTOR

21

6660033

SPRING

22

6660034

SEAL W/ O-ring - Was 6674848 - A

23

6676910

SEAL W/ O-ring

24

6660037

SEAL W/ O-ring - Was 6674846 - A

25

6674345

PLUG

26

6674851

O-RING

27

6674344

SPRING

28

6674343

SHIM .024'' (0,6mm) thick

29

6674853

POPPET

30

6674839

PLUG W/Ref. 31

31

O-RING NSS

32

6674841

SPRING

33

6675866

SPOOL

34

6675867

WASHER

35

6671749

O-RING

36

6676952

PLUG W/Ref. 35 - Was 6674852 - A

37

6691217

SCREW Was 6674074 - A

38

6660032

PIN

39

6674850

O-RING some machines may not have this o-ring, it is not needed

40

6674066

SEAL

41

6671758

O-RING

42

6666364

PLUG W/Ref. 41

43

O-RING NSS - Order Ref. 44

44

6674017

PLUG W/Ref. 43

45

6676908

HOUSING

46

6678779

HOUSING

47

6681622

SHAFT

48

6674722

SHIM .004'' (0,1mm) thick

49

6674723

SHIM .012'' (0,3mm) thick

50

6674714

DISC outer brake

51

6674713

DISC inner brake

52

6677828

SEAL green W/ metal washer

53

6674708

WASHER

54

6691238

BOLT Was 6689127 - A

55

6674734

BUSHING

56

6681638

PISTON brake

57

6674728

SEAL Was 6691237 - A

58

6678780

WASHER

59

6674720

GASKET, MOTOR HYD

60

6674716

COVER

61

6674705

O-RING

62

6674707

PLUG

63

3GM820

SCREW Was 6674702 - A

64

HOUSING ASSY See BTI378 NLA - front - Ref. 2-10 & 69 - Was 6681585 - A

64

7024981

OIL, SYNTHETIC DRIVE MOTOR 4 236 ml (8 oz) - Was 7003026 - A

65

ROTATING GROUP NLA - Ref. 14-19 - Order Ref 1

66

HOUSING ASSY NLA - Rear - Ref. 20-45 - Order Ref. 1

67

6681637

BRAKE, HYD MOTOR Ref. 46-63

68

6678778

KIT, SEAL W/Ref. 7, 11, 22, 23 (2) (6676910 ), 24, 26, 30, 34, 35, 39-41, 52, 57 , 59 & 69

69

6689121

O-RING
