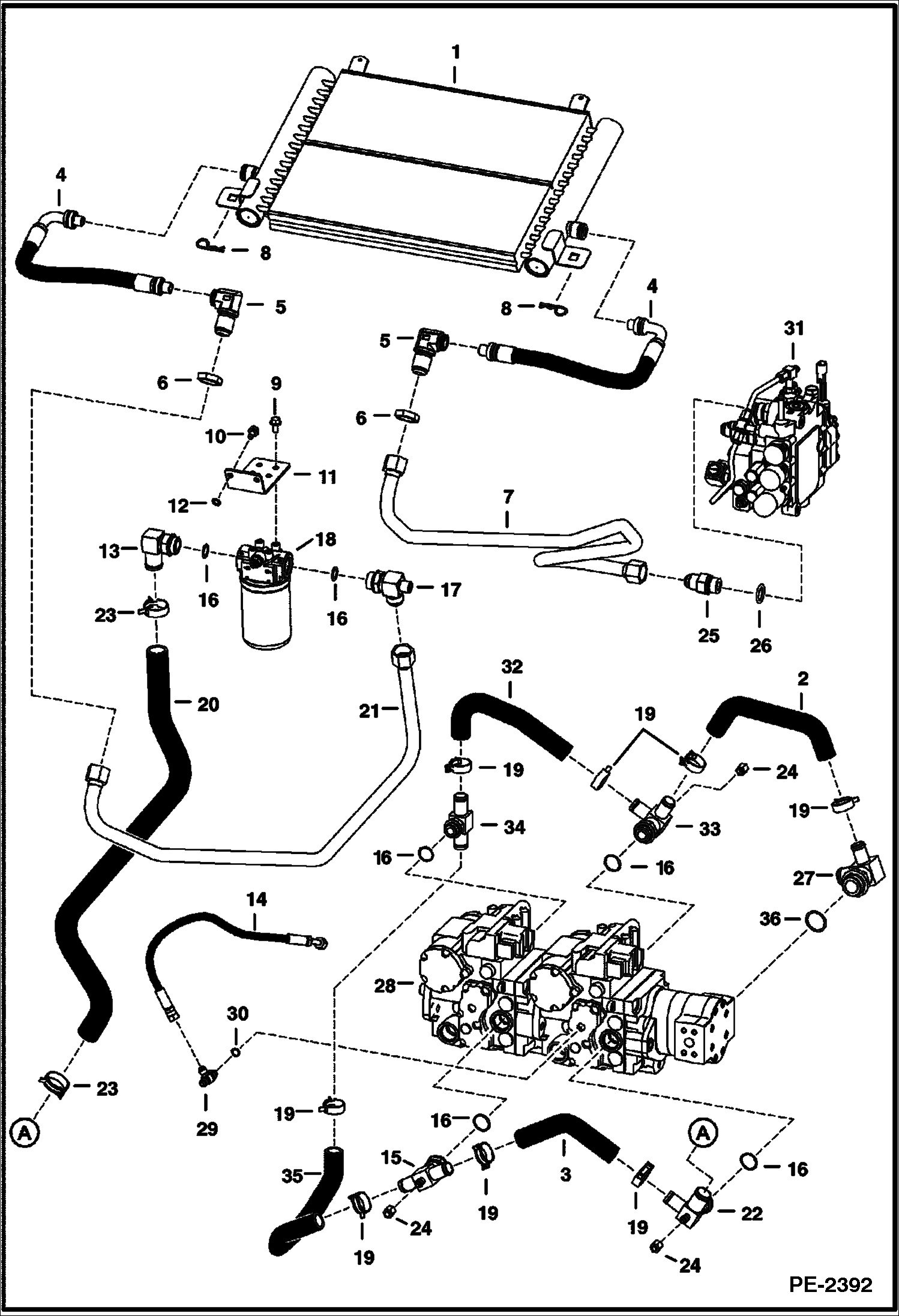

Запчасти Bobcat T-Series HYDROSTATIC CIRCUITRY (W/Cooler) (W/SJC) (S/N 525411052-13999, 525511004-11999) HYDROSTATIC SYSTEM

1

6684921

COOLER oil - female -12 STC connector 1.23'' (31,2 mm) O.D. .82'' (20,8 mm) I.D.

1

6681501

SEAL KIT

1

7103750

EXCHANGER, OIL COOLER See BTI391 oil - female -16 STC connector 1.61'' (40,9 mm) O.D. 1.06'' (26,9 mm) I.D.

1

6688523

SEAL KIT STC-16

2

6736417

HOSE

3

6729478

HOSE

4

6683276

HOSE -12 STC connector .82'' (20,8 mm) O.D.

4

6681501

SEAL KIT

4

7103751

HOSE male -16 STC connector 1.06'' (26,9 mm) O.D.

4

6688523

SEAL KIT STC-16

5

6678970

ELBOW female -12 STC connector 1.23'' (31,2 mm) O.D. .82'' (20,8 mm) I.D.

5

6690950

O-RING

5

6681501

SEAL KIT

5

7103749

ELBOW female - 16 STC connector 1.61'' (40,9 mm) O.D. 1.06'' (26,9 mm) I.D.

5

6690950

O-RING

5

6688523

SEAL KIT STC-16

6

86F10

NUT

7

6731110

TUBELINE

8

1318565

COTTER PIN

9

35C612

BOLT

10

84G3710

SCREW

11

6719446

MOUNT

12

6E6

WASHER

13

6697791

ELBOW W/ Ref. 16 - Was 6729306 - B

14

6717921

HOSE

15

6736405

TEE W/ Ref. 16

16

79K16

O RING 10

17

6731527

TEE W/ Ref. 16

18

6678155

FILTER ASSY See Illustration HYDROSTATIC OIL FILTER/ C2818

18

6661248

FILTER, OIL HYD 12 #3 media - 152,4 mm (6'') long

19

5HM35

HOSECLAMP

20

6736414

HOSE

21

7103170

TUBELINE Was 6731111

22

6736406

TEE W/ Ref. 16

23

5HM42

HOSECLAMP

24

24K5

PLUG not Use W/ rear aux. - Was 35K000005B - A

25

15KB1612

FITTING, HYD CONNECTOR W/ Ref. 26 - Was 6715878 - A

26

79K12

O RING 10

27

6736408

TEE W/Ref. 36

28

6679821

PUMP

29

17KB0606

FITTING W/ Ref. 30

30

79K6

O RING 10

31

VALVE See Illustration HYDRAULIC CONTROL VALVE/ PE1745

32

6736416

HOSE

33

6726992

TEE W/ Ref. 16

34

6736407

TEE W/ Ref. 16

35

6736415

HOSE

36

79K20

O RING 10
