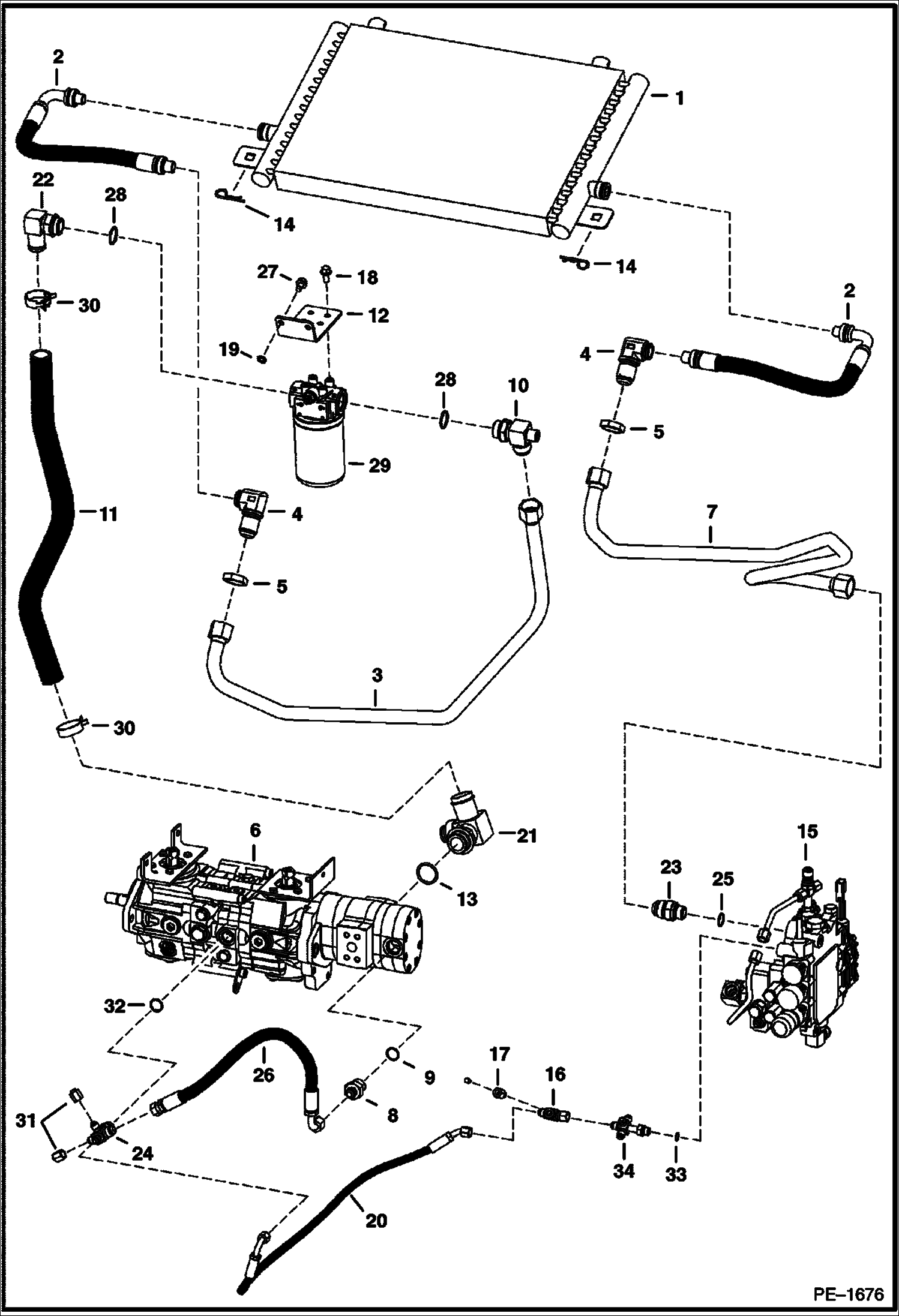

Запчасти Bobcat T-Series HYDROSTATIC CIRCUITRY (W/Cooler) (W/Manual Controls) (S/N 521911001, 522011001 & Above) (S/N 525411001-13999, 525511001-11999) HYDROSTATIC SYSTEM
№
Артикул
Название
Примечание
Количество
1
6678156
COOLER See BTI391 oil - female -12 STC connector 1.23'' (31,2 mm) O.D. .82'' (20,8 mm) I.D.
1
6681501
SEAL KIT
1
7103750
EXCHANGER, OIL COOLER See BTI391 oil - female -16 STC connector 1.61'' (40,9 mm) O.D. 1.06'' (26,9 mm) I.D.
1
6688523
SEAL KIT STC-16
2
6684457
HOSE, HYD ASSY STC male -12 STC connector .82'' (20,8 mm) O.D. - Was 6678969 - A
2
6681501
SEAL KIT
2
7103751
HOSE male -16 STC connector 1.06'' (26,9 mm) O.D.
2
6688523
SEAL KIT STC-16
3
7103170
TUBELINE Was 6731111 - A
4
6678970
ELBOW female -12 STC connector 1.23'' (31,2 mm) O.D. .82'' (20,8 mm) I.D.
4
6690950
O-RING
4
6681501
SEAL KIT
4
7103749
ELBOW female - 16 STC connector 1.61'' (40,9 mm) O.D. 1.06'' (26,9 mm) I.D.
4
6690950
O-RING
4
6688523
SEAL KIT STC-16
5
86F10
NUT
6
PUMP See Illustration HYDROSTATIC PUMP/ B26304 See Illustration HYDROSTATIC PUMP/ B21983
7
6731110
TUBELINE
8
15KB0812
FITTING, HYD CONNECTOR W/Ref. 9
10
6731527
TEE W/Ref. 28
11
6731923
HOSE
12
6719446
MOUNT
14
1318565
COTTER PIN
15
VALVE See Illustration HYDRAULIC CONTROL VALVE/ PE1729
16
6718660
TEE
16
6736258
TEE
17
6563922
SNUBBER .125'' Pipe Thread
17
6718948
SNUBBER .375'' UNF Thread
18
35C612
BOLT
19
6E6
WASHER
20
6725090
HOSE
20
6628810
HOSE
21
6732586
TEE W/Ref. 13
22
6697791
ELBOW W/Ref. 28 - Was 6729306 - B
23
15KB1612
FITTING, HYD CONNECTOR W/Ref. 25
24
6731925
TEE W/Ref. 32
26
6731935
HOSE
27
84G3710
SCREW
29
6678155
FILTER ASSY See Illustration HYDROSTATIC OIL FILTER/ C2818
30
5HM42
HOSECLAMP
31
36K5
CAP
33
79K6
O RING 10
34
6817553
CROSS W/Ref. 33 - Was 6805241 - A
