Запчасти Bobcat T-Series HYDROSTATIC CIRCUITRY (W/Motors) (W/SJC) (S/N 525613000, 525712000 & Above) HYDROSTATIC SYSTEM

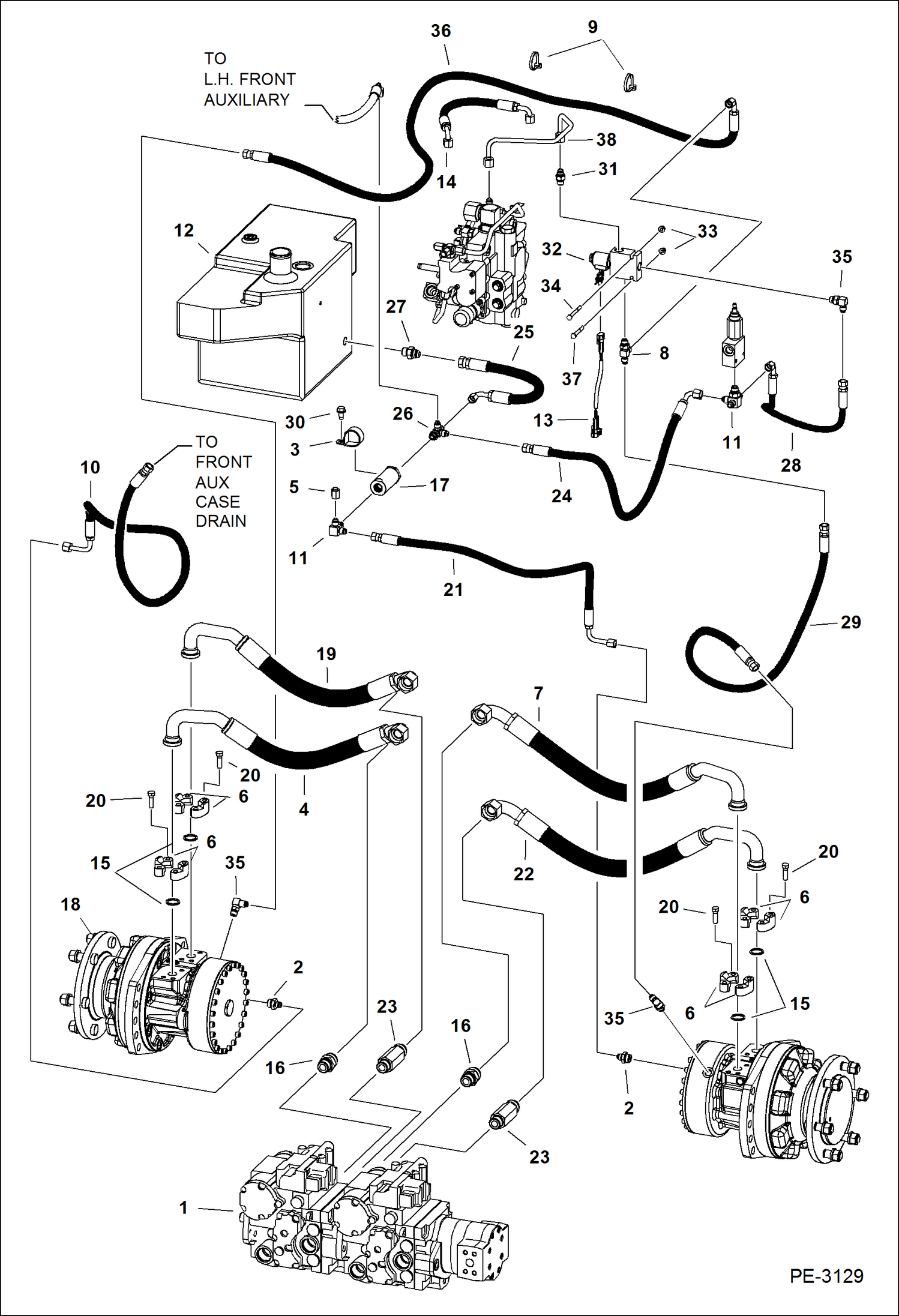

Схема запчастей Bobcat T-Series - HYDROSTATIC CIRCUITRY (W/Motors) (W/SJC) (S/N 525613000, 525712000 & Above) HYDROSTATIC SYSTEM

Артикул

Название

Примечание

Количество

1

PUMP See Illustration HYDROSTATIC PUMP/ B26305 See Illustration HYDROSTATIC PUMP/ B26304

2

743108

FITTING

2

79K6

O RING 10

3

30H79

CLAMP

4

6685342

HOSE mega seal

5

36K5

CAP

6

20J12

FLANGE

7

6684975

HOSE mega seal

8

21KB0606

FTG HYD STRAIGHT TEE

8

79K6

O RING 10

9

6624289

STRAP, TIE

10

6730326

HOSE

11

6725182

TEE

11

79K6

O RING 10

12

TANK See Illustration HYDROSTATIC CIRCUITRY/ PE3128 HYDRAULIC

13

6716789

HARNESS

14

HOSE NLA - Order Ref. 38 - Was 7103901 - A

15

55K214

O-RING

16

15KB1612

FITTING, HYD CONNECTOR

16

79K12

O RING 10

17

6661022

FILTER, OIL HYD IN-LINE - 90 micron

18

MOTOR See Illustration HYDROSTATIC MOTOR & BRAKE/ B21330

19

6685341

HOSE

20

17C620

BOLT

21

6730323

HOSE

22

6684974

HOSE

23

6716243

ADAPTER

23

79K12

O RING 10

24

6732483

HOSE

25

6733219

HOSE

26

6718031

TEE

26

79K6

O RING 10

27

15KB0808

FITTING, HYD CONNECTOR

27

79K8

O RING 10

28

6716463

HOSE

29

6736814

HOSE

30

84G3712

BOLT 5

31

6669676

CHECK VALVE in-line

31

79K6

O RING 10

32

6679103

VALVE, BRAKE See Illustration BRAKE VALVE/ MS1144

33

83D4

NUT 10

34

17C432

BOLT

35

17KB0606

FITTING

36

6730329

HOSE

37

17C428

BOLT

38

7173990

TUBELINE, HYD Was 7153578 - A

Выбрано товаров: 46
