Запчасти Bobcat T-Series HYDROSTATIC CIRCUITRY (W/Motors) (W/Manual Controls) S/N 523111001, 523011001 & Above) (S/N 525611001-12999, 525711001-11999) HYDROSTATIC SYSTEM

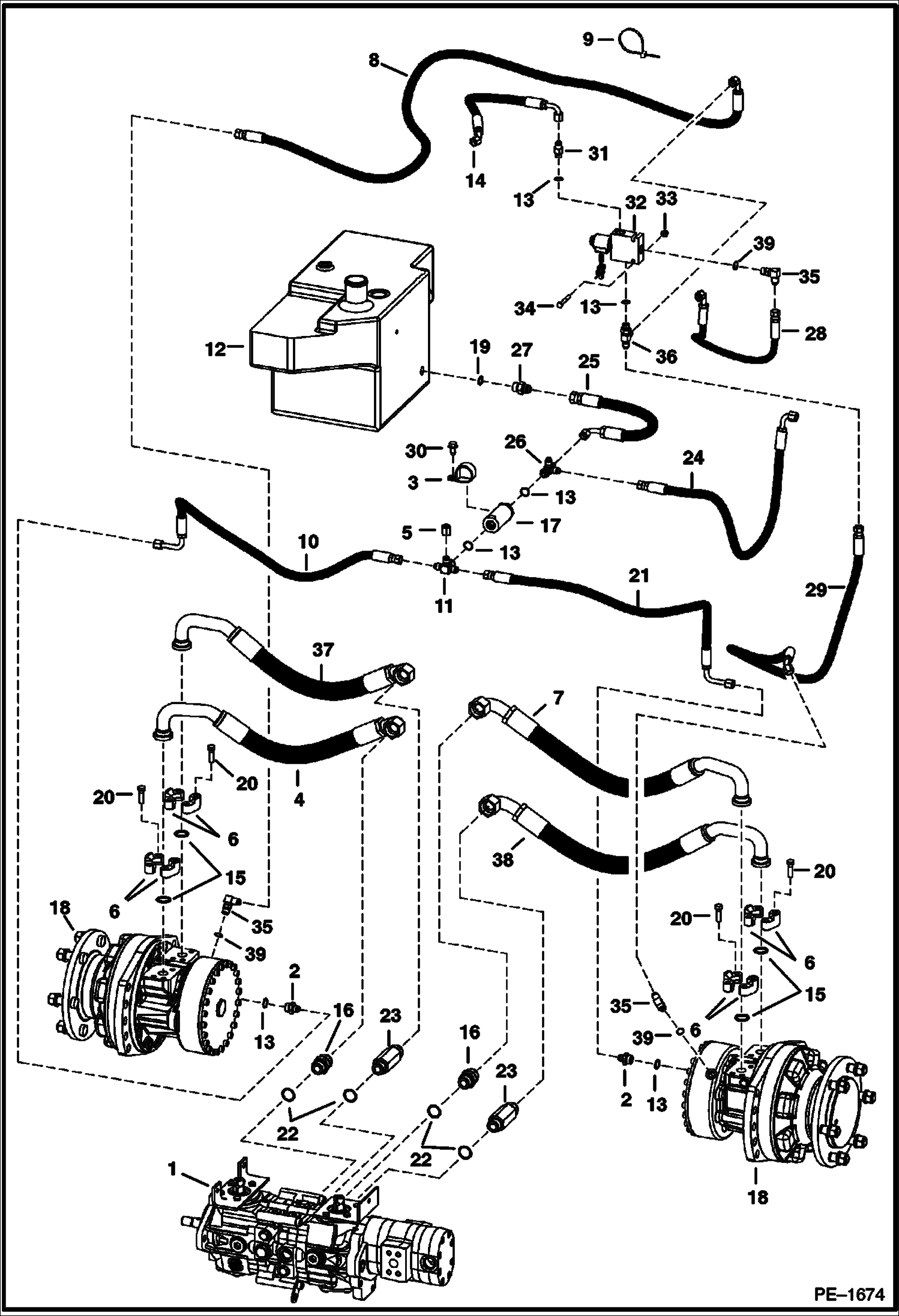

Схема запчастей Bobcat T-Series - HYDROSTATIC CIRCUITRY (W/Motors) (W/Manual Controls) S/N 523111001, 523011001 & Above) (S/N 525611001-12999, 525711001-11999) HYDROSTATIC SYSTEM

Артикул

Название

Примечание

Количество

1

PUMP See Illustration HYDROSTATIC PUMP/ B21984 See Illustration HYDROSTATIC PUMP/ B21983

2

743108

FITTING W/Ref. 13

3

30H79

CLAMP

4

6685342

HOSE mega seal - Was 6678955 - A

5

36K5

CAP

6

20J12

FLANGE

7

6685340

HOSE mega seal - Was 6678956 - A

8

6730329

HOSE

9

6624289

STRAP, TIE

10

6730326

HOSE

11

6725182

TEE W/Ref. 13

12

TANK See Illustration HYDROSTATIC CIRCUITRY/ PE1675 HYDRAULIC

13

79K6

O RING 10 tapered boss face

14

6627313

HOSE

15

55K214

O-RING

16

15KB1612

FITTING, HYD CONNECTOR W/Ref. 22

17

6661022

FILTER, OIL HYD IN-LINE See Illustration HYDROSTATIC OIL FILTER/ B13527 - 90 micron

18

MOTOR See Illustration HYDROSTATIC MOTOR & BRAKE/ B21330

19

79K8

O RING 10

20

17C620

BOLT

21

6730323

HOSE

22

79K12

O RING 10

23

6716243

ADAPTER W/Ref. 22

24

6732483

HOSE

25

6733219

HOSE

26

6718031

TEE W/Ref. 13

27

15KB0808

FITTING, HYD CONNECTOR W/Ref. 19

28

6716463

HOSE

29

6736814

HOSE Was 6719460 - A

30

84G3712

BOLT 5

31

6669676

CHECK VALVE in-line - W/Ref. 13

32

6679103

VALVE, BRAKE See Illustration BRAKE VALVE/ MS1144

33

83D4

NUT 10

34

17C432

BOLT

35

17KB0606

FITTING W/Ref. 39 - Was 17KN00005B - B

36

21KB0606

FTG HYD STRAIGHT TEE W/Ref. 13

37

6685341

HOSE Was 6678954 - A

38

6685339

HOSE, HYD ASSY Was 6718781 - A

39

79K6

O RING 10 Was 99K000006B - B

Выбрано товаров: 39
