Запчасти Bobcat T-Series HIGH FLOW HYDRAULICS (40 GPM) (Selectable Joystick Controlled) (S/N 525613400, 525712100 & Above) HIGH FLOW HYDRAULICS

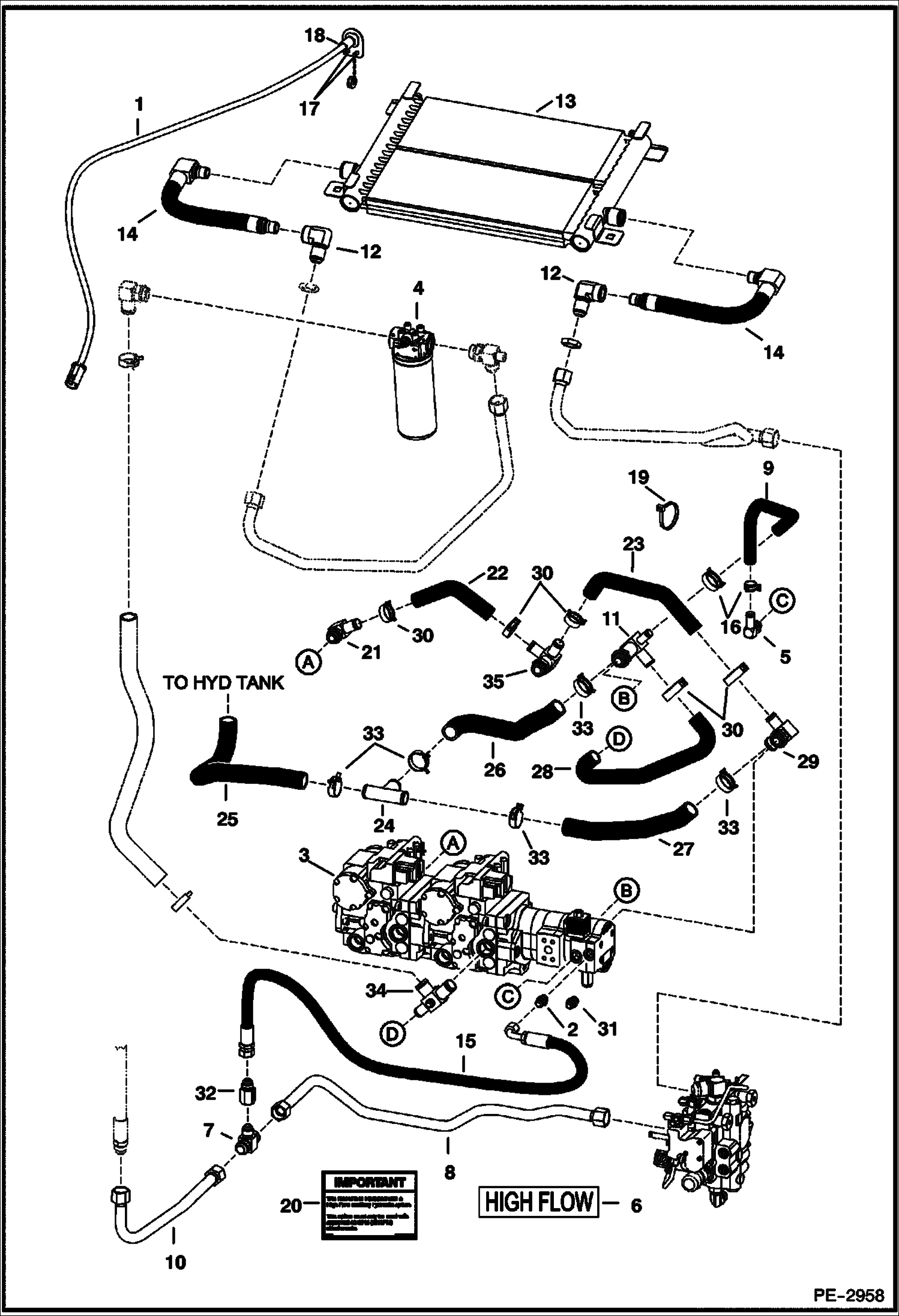

Схема запчастей Bobcat T-Series - HIGH FLOW HYDRAULICS (40 GPM) (Selectable Joystick Controlled) (S/N 525613400, 525712100 & Above) HIGH FLOW HYDRAULICS

Артикул

Название

Примечание

Количество

1

6718426

HARNESS, LIFT ARM attachment control

2

15KB1008

FITTING, HYD CONNECTOR

3

HYDRO PUMP See Illustration HYDROSTATIC PUMP/ B26305 See Illustration HYDROSTATIC PUMP/ B26304

4

FILTER ASSY See Illustration HYDROSTATIC OIL FILTER/ C2818

5

6717885

ELBOW

5

79K10

O RING 10

6

6727913

DECAL high flow

7

6730143

TEE

8

6732993

TUBELINE

9

6733164

HOSE

10

6735866

TUBELINE

11

7113593

FITTING Was 7102399 - A

11

79K16

O RING 10

12

7103749

ELBOW female - 16 STC connector 1.61'' (40,9 mm) O.D. 1.06'' (26,9 mm) I.D.

12

6690950

O-RING

12

6688523

SEAL KIT STC-16

13

7103750

EXCHANGER, OIL COOLER See BTI391 oil - female -16 STC connector 1.61'' (40,9 mm) O.D. 1.06'' (26,9 mm) I.D.

13

6688523

SEAL KIT STC-16

14

7103751

HOSE male -16 STC connector 1.06'' (26,9 mm) O.D.

14

6688523

SEAL KIT STC-16

15

7109144

HOSE

16

5HM24

CLAMP

17

84G3112

BOLT 5

18

30H35

CLAMP 10

19

6624289

STRAP, TIE

20

7113512

DECAL approved attachments only

21

6727182

ELBOW

22

6729478

HOSE

23

6729477

HOSE

24

6817459

FITTING

25

6732502

HOSE

26

6727426

HOSE

27

6729476

HOSE

28

7106241

HOSE Was 6729475 - A

29

6733809

TEE

30

5HM35

HOSECLAMP

31

CHECK VALVE NLA - male/male - Order Ref. 2 & 32 - Was 6679943 - A

32

7010242

VALVE, CHECK in-line - Was 7113552 - A

33

5HM42

HOSECLAMP

34

6736508

TEE

35

6726992

TEE

Выбрано товаров: 41
