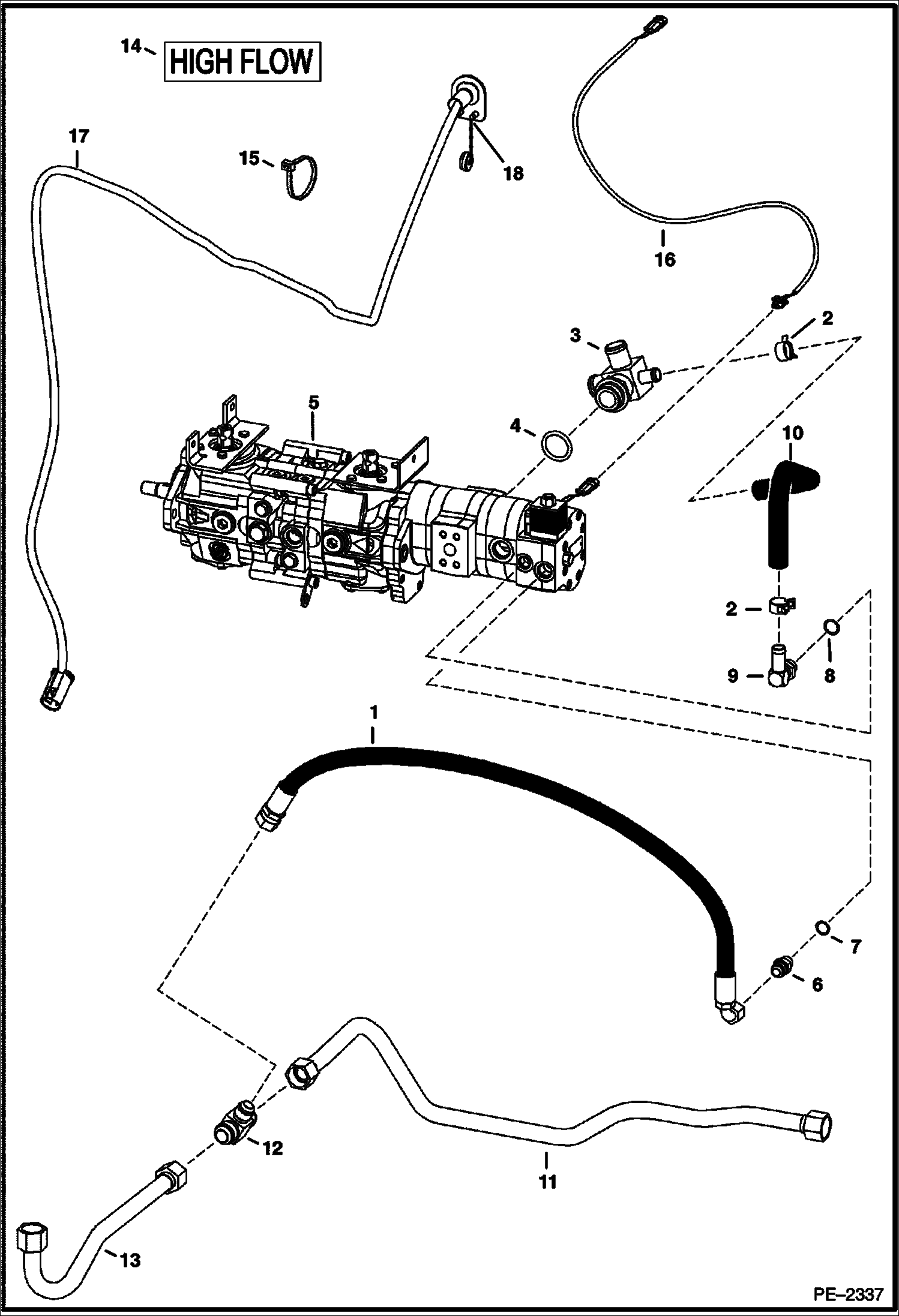

Запчасти Bobcat T-Series HIGH FLOW HYDRAULICS (S/N 523111001, 523011001 & Above) (S/N 525613399, 525712099 & Below) HIGH FLOW HYDRAULICS

1

7109144

HOSE Was 6737190 - A

2

5HM24

CLAMP

3

6733163

TEE W/Ref. 4 - for manual controls

3

6736409

TEE W/Ref. 4 - for selectable joystick controls

4

99K16

O-RING

5

PUMP See Illustration HYDROSTATIC PUMP/ B26304 See Illustration HYDROSTATIC PUMP/ B21983

6

CHECK VALVE NLA - W/Ref. 7 - Order 7010242 valve and 15KB1008 adapter - Was 6679943 - A

6

7010242

VALVE, CHECK

6

15KB1008

FITTING, HYD CONNECTOR

7

79K8

O RING 10

8

79K10

O RING 10

9

6717885

ELBOW W/Ref. 8

10

6733164

HOSE

11

6733308

TUBELINE

12

6730143

TEE bulkhead

13

6735866

TUBELINE

14

6727913

DECAL high flow

15

6624289

STRAP, TIE

16

6733137

HARNESS

17

HARNESS See Illustration ELECTRICAL CONTROLS KIT/ MS1395 ATTACHMENT CONTROL

18

84G3112

BOLT 5
