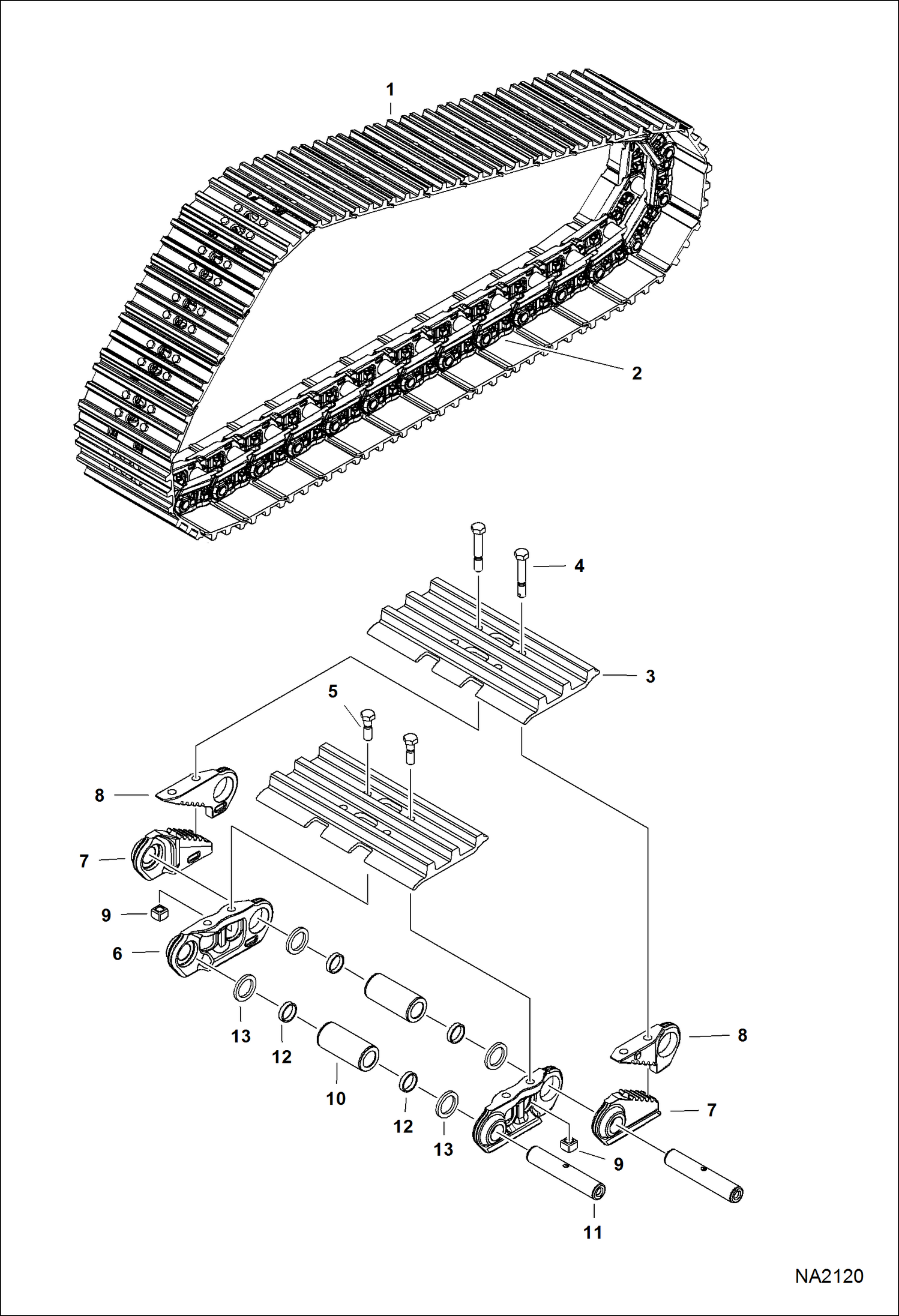

Запчасти Bobcat T-Series TRACKS (Steel) ACCESSORIES & OPTIONS

1

7166087

TRACK, STEEL See Illustration DRIVE TRAIN/ NA2101 - requires steel track factory option

2

7009339

CHAIN

3

7009237

SHOE, TRACK

4

7009794

BOLT master track bolt

5

7009793

BOLT

6

7009334

LINK, TRACK LH

6

7009335

LINK, TRACK RH

7

7009336

LINK, TRACK MASTER LH pin end

7

7009337

LINK, TRACK MASTER RH pin end

8

7009338

LINK, TRACK MASTER LH bushing end

8

7009342

LINK, TRACK MASTER RH bushing end

9

7009792

NUT

10

7009332

BUSHING

11

7009333

PIN

11

7010677

PLUG

11

7010678

PLUG

12

7009341

SPACER

13

7009340

SEAL
