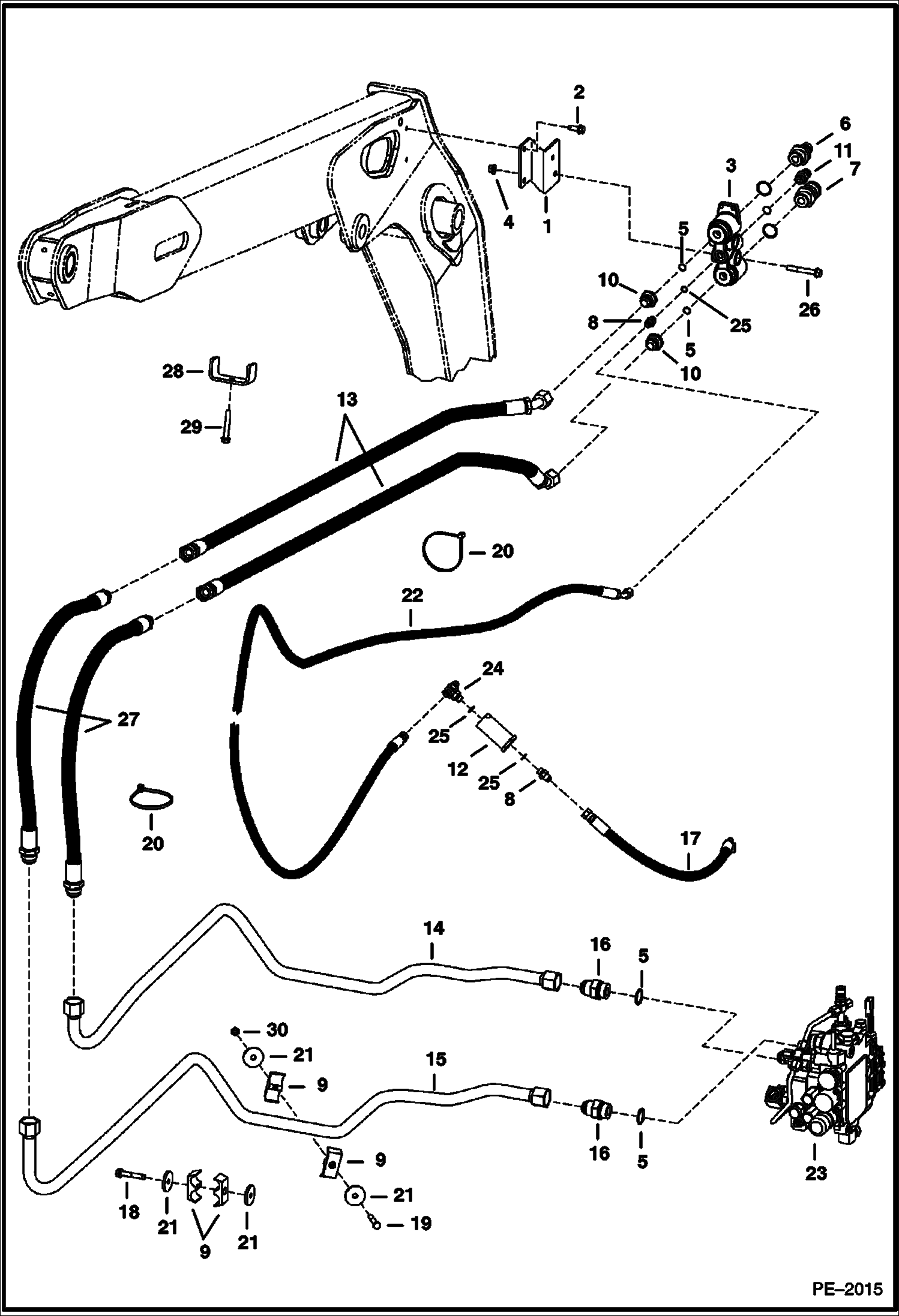

Запчасти Bobcat T-Series AUXILIARY HYDRAULICS (5231 11001-99999, 5230 11001-99999) (5256 12999, 5257 11999 & Below) HYDRAULIC SYSTEM

1

7102414

BRACKET Was 6731199 - A

2

84G3716

SCREW 5

3

6678076

BLOCK Ref. 6, 7 & 11 & (2) of Ref. 10

4

83D6

NUT 5

5

79K12

O RING 10

6

6679837

COUPLER male

6

6679841

SEAL blue - front

6

6680020

SEAL KIT (3) O-rings & (3) back-up washers

7

KIT coupler - female - FF - Order 6680018 coupler kit - Was 6679839 - A

7

6680020

SEAL KIT (3) O-rings & (3) back-up washers

7

6680018

COUPLER, KIT female - Use W/hydraulic breaker

8

15KB0606

FITTING, HYD CONNECTOR W/Ref. 25

9

6729320

CLAMP

10

6679836

ADAPTER & Ref 5 W/spring

11

6679838

KIT, COUPLER male casedrain - W/valve, spring, seal & O-ring

11

6679840

SEAL blue - front

12

6661022

FILTER, OIL HYD IN-LINE See Illustration HYDROSTATIC OIL FILTER/ B13527

13

6736351

HOSE

14

6733823

TUBELINE

15

6733824

TUBELINE

16

15KB1612

FITTING, HYD CONNECTOR W/Ref 5 Was 6715878 - A

17

6702079

HOSE

18

84G3736

BOLT

19

17C640

BOLT 5

20

6624289

STRAP, TIE

21

872229

WASHER

22

7101377

HOSE Was 6729746 - B

23

VALVE See Illustration HYDRAULIC CONTROL VALVE/ PE2443 See Illustration HYDRAULIC CONTROL VALVE/ PE2017 CONTROL

24

6725182

TEE W/Ref 25

25

79K6

O RING 10

26

31C644

BOLT

27

6736350

HOSE

28

6735796

CLAMP

29

84G3740

BOLT

30

85D6

NUT, 5
