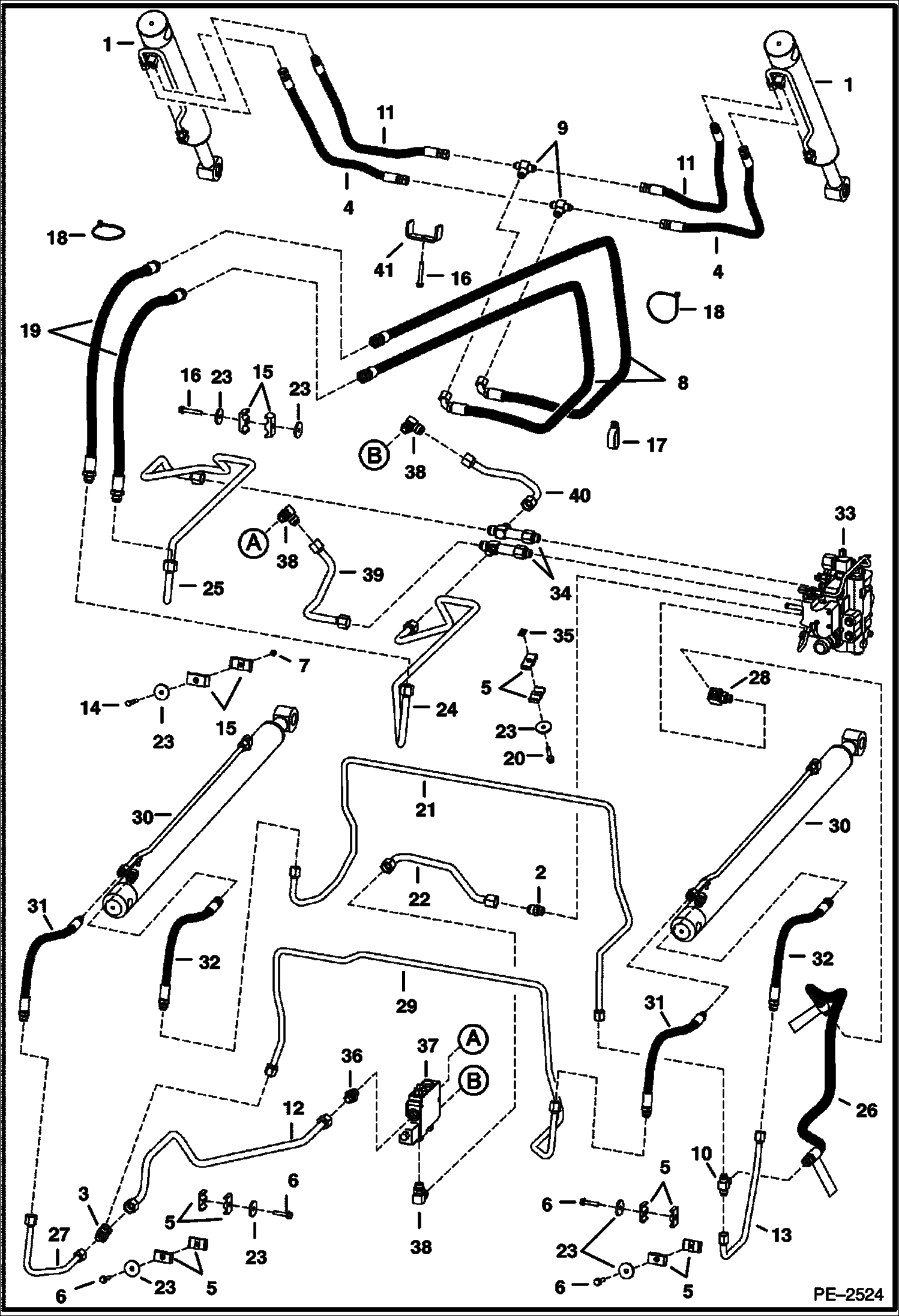

Запчасти Bobcat T-Series HYDRAULIC CIRCUITRY (W/Bucket Positioning Valve) (S/N 5256 13000, 5257 12000 & Above) HYDRAULIC SYSTEM

1

CYLINDER See Illustration TILT CYLINDER/ PE1520 - tilt

2

6682411

ADAPTER

2

79K10

O RING 10

3

6729686

TEE

4

7102090

HOSE

5

6701893

CLAMP

6

84G3732

BOLT Was 84G003728B - A

7

61D5

NUT

8

6736353

HOSE

9

6716061

TEE

10

6729694

TEE

11

7102089

HOSE

12

7114823

TUBELINE Was 6734208 - A

13

6730858

TUBELINE

14

17C536

BOLT

15

6592506

CLAMP

16

84G3740

BOLT

17

31H49

CLAMP

18

6624289

STRAP, TIE

19

6736352

HOSE

20

84G3728

BOLT

21

7114821

TUBELINE Was 6734202 - A

22

6732992

TUBELINE lift

23

872229

WASHER

24

7106758

TUBELINE tilt

25

7106759

TUBELINE tilt

26

6729604

HOSE available only as an assembly W/two danger decals installed

26

6809511

DECAL, DANGER

26

79K10

O RING 10

27

6734201

TUBELINE lift

28

7109623

ELBOW Was 6817335 - A

28

79K10

O RING 10

29

6732951

TUBELINE lift

29

7114813

TUBELINE lift

30

CYLINDER See Illustration LIFT CYLINDER/ PE2016 lift

31

7100626

HOSE

32

7100627

HOSE

33

VALVE See Illustration HYDRAULIC CONTROL VALVE/ PE2017 - control

34

6730914

TEE

34

79K10

O RING 10

35

6684033

NUT

36

15KB1210

FITTING, HYD CONNECTOR

36

79K10

O RING 10

37

VALVE See Illustration BUCKET POSITIONING VALVE/ MS1943A See Illustration BUCKET POSITIONING VALVE/ MS1943 - BPV

38

17KB1210

FITTING, HYD ELBOW

38

79K10

O RING 10

39

6732991

TUBELINE

40

7108458

TUBELINE Was 6734200 - B,D

41

6735796

CLAMP
