Запчасти Bobcat T-Series HYDRAULIC CIRCUITRY (W/ Bucket Positioning Valve) (5231 11001-99999, 5230 11001-99999) (5256 12999, 5257 11999 & Below) HYDRAULIC SYSTEM

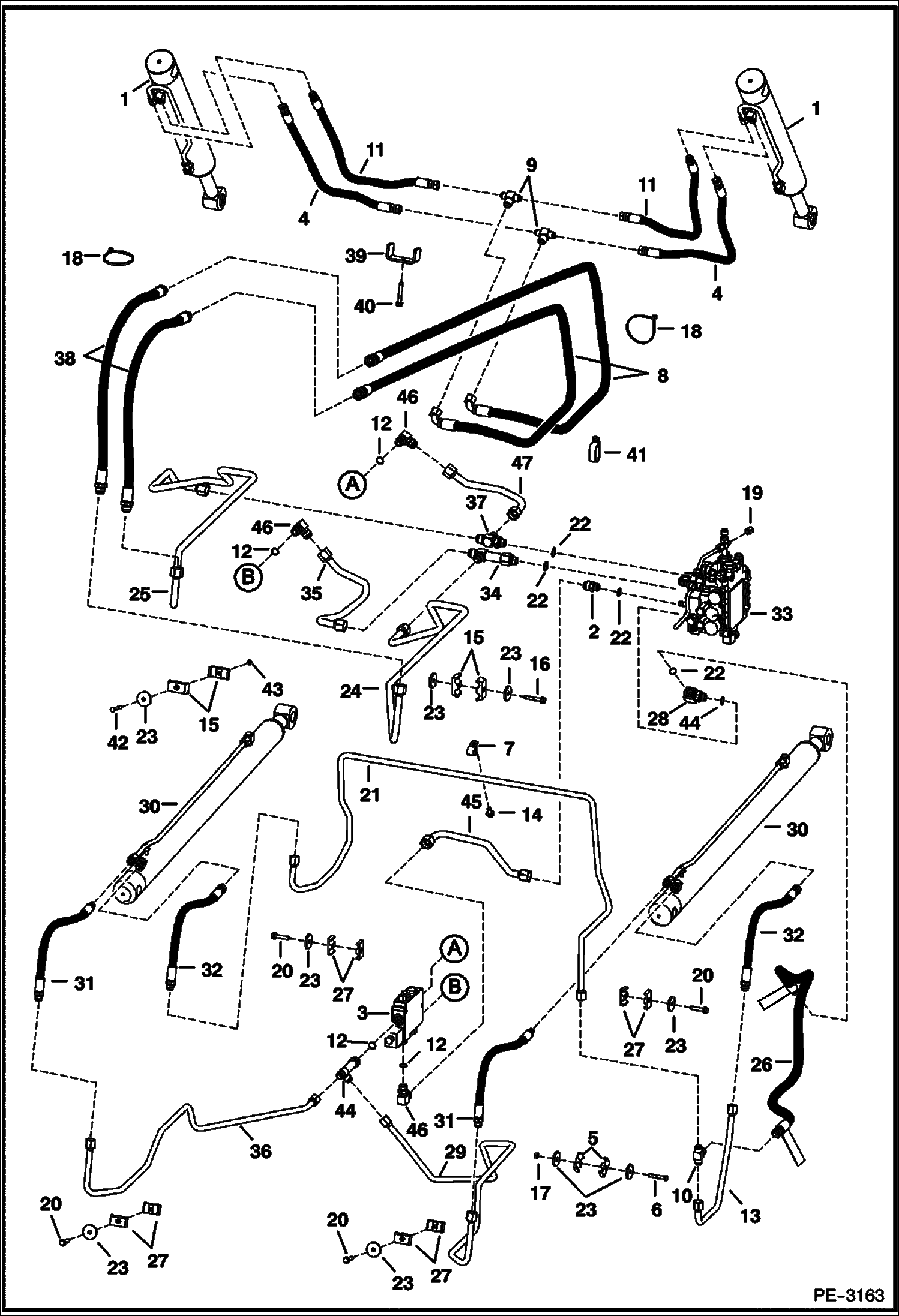

Схема запчастей Bobcat T-Series - HYDRAULIC CIRCUITRY (W/ Bucket Positioning Valve) (5231 11001-99999, 5230 11001-99999) (5256 12999, 5257 11999 & Below) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

CYLINDER TILT

2

6682411

ADAPTER W/Ref. 22

3

6673959

VALVE, BPV painted primer red

4

7102090

HOSE Was 6729729 - A

5

6729702

CLAMP

6

17C632

BOLT 5

7

30H38

CLIP

8

6736353

HOSE

9

6716061

TEE

9

97K8

O-RING flared end

9

97K10

O-RING 10 flared end

10

6729694

TEE

11

7102089

HOSE Was 6729728 - A

12

79K10

O RING 10

13

6730858

TUBELINE

14

84G3712

BOLT 5

15

6592506

CLAMP

16

84G3740

BOLT Was 84G003736B - B

17

85D6

NUT, 5

18

6624289

STRAP, TIE

19

36K5

CAP

20

84G3732

BOLT Was 84G003728B - A

21

6730857

TUBELINE

22

79K10

O RING 10

23

872229

WASHER

24

6733819

TUBELINE tilt

25

6733818

TUBELINE tilt

26

6729604

HOSE W/Ref. 22 - available only as an assembly W/two danger decals installed

26

6809511

DECAL, DANGER

27

6701893

CLAMP

28

7109623

ELBOW W/Ref. 22 - flat boss face - Was 6817335 - A

29

6734761

TUBELINE lift

30

CYLINDER lift

31

7100626

HOSE Was 6733815 - A

32

7100627

HOSE Was 6733816 - A

33

VALVE

34

6730914

TEE W/Ref. 22

34

97K12

O'RING flared end

35

6728180

TUBELINE

36

6730836

TUBELINE lift

37

21KB1210

FITTING, HYD TEE W/Ref. 22

38

6736352

HOSE

39

6735796

CLAMP

40

84G3740

BOLT

41

31H49

CLAMP

42

17C536

BOLT

43

61D5

NUT

44

6730077

TEE W/Ref. 50

45

6730812

TUBELINE

46

17KB1210

FITTING, HYD ELBOW W/Ref. 50

47

6730810

TUBELINE

Выбрано товаров: 51
