Запчасти Bobcat T-Series CONTROLS ELECTRICAL (Selectable Joystick Controls) (S/N A5GT20001 & Above, A5GS20001 & Above) ELECTRICAL SYSTEM

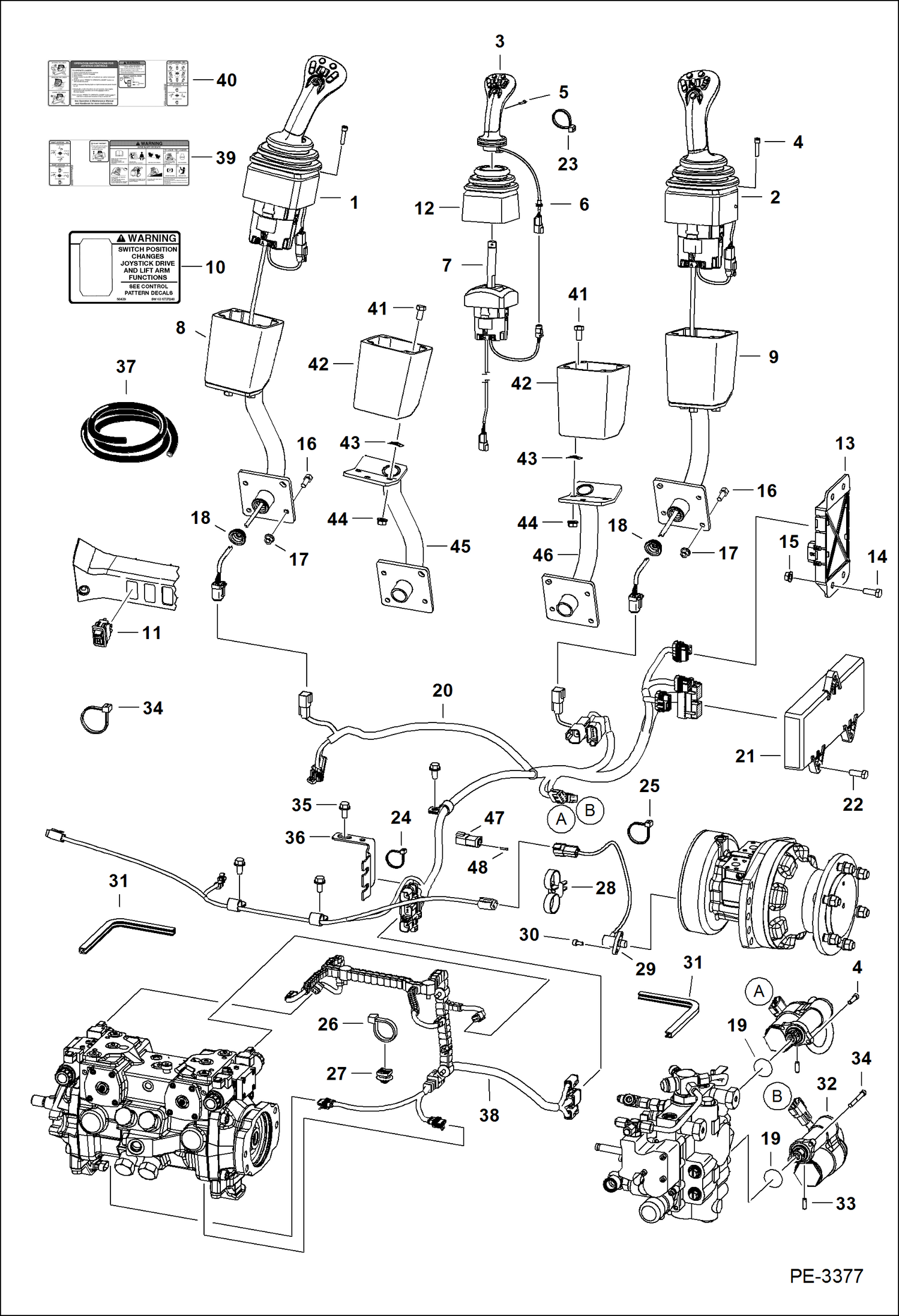

Схема запчастей Bobcat T-Series - CONTROLS ELECTRICAL (Selectable Joystick Controls) (S/N A5GT20001 & Above, A5GS20001 & Above) ELECTRICAL SYSTEM

Артикул

Название

Примечание

Количество

1

6697904

JOYSTICK, LH Ref. 3, 5-7 & 12

2

6697905

JOYSTICK, RH Ref. 3, 5-7 & 12

3

6689922

HANDLE LH - W/Ref. 6

3

6689923

HANDLE RH - W/Ref. 6

4

29G416

BOLT

5

6689927

BOLT

6

HARNESS NSS - Order Ref. 3

7

6697939

BASE, JOYSTICK RH

7

6697938

BASE, JOYSTICK LH

8

HANDLE NLA - LH - Order Ref. 18 & 41-45 - A

8

SENSOR See Illustration CONTROLS ELECTRICAL/ PE1553 - foot pedal - LH

9

HANDLE NLA - RH - Order Ref. 18, 41-44 & 46 - A

10

6737248

DECAL, WARNING selectable joystick control

11

6683812

SWITCH H/ISO

12

6689926

BOOT

13

6680410

CONTROLLER plastic - W/ 3-connector plug

14

17C616

BOLT 5

15

97D6

NUT 10

16

35C512

BOLT

17

97D5

NUT

18

6684294

GROMMET

19

58K120

O-RING Use W/Ref. 32 - Was 6686220 - B,D

20

HARNESS, SJC See BTI419 - NLA - W/Speed sensor connectors - Was 7159451 - A

20

7159451

HARNESS W/O speed sensor connectors

21

6679485

CONTROLLER SJC drive - W/single 50-pin connector

22

43C616

BOLT

23

6691589

100 TIE packaged as 100 pieces

24

6624289

STRAP, TIE

25

6678669

STRAP

26

6690690

STRAP, TIE

27

6690688

TREE MOUNT

28

6678668

STRAP, DUAL TIE dual strap

29

SENSOR, SPEED See BTI419 - NLA - Was 7139902

29

25K20016

O RING 10 Was 25K20100 - B,D

30

7102184

SCREW

31

MOULDING NLA - 10.5'' (267 mm) long - Order Ref. 37

32

7101672

ACTUATOR W/Ref. 19

33

7108236

PIN

34

69G436

BOLT

35

84G3712

BOLT 5

36

7122359

BRACKET

37

6654139

MOULDING bulk - sold per foot

38

7198706

HARNESS, PUMP Use W/hydrostatic pump Model R902095064 - W/ 3-pin oval connectors - Was 7139761 - A

38

7188448

HARNESS, PUMP Use W/hydrostatic pump Model R902136745 - W/ 3-pin triangle connectors - Was 7169309 - A

38

6664969

CONNECTOR 8-pin

38

6664185

CONNECTOR 2-pin

38

6687268

FEMALE CONNECTOR 3-pin oval - Use W/Ref. 38 (7198706 harness)

38

6664801

CONNECTOR 3-pin triangle - Use W/Ref. 38 (7188448 harness)

38

6691421

FEMALE CONNECTOR grey - 4-pin rectangular

38

6662248

4 PIN PLUG black

39

7131520

DECAL

40

7131521

DECAL

41

17C612

BOLT 5

42

7124929

BASE

43

6684033

NUT retaining

44

97D6

NUT 10

45

7123817

MOUNT LH

46

7123816

MOUNT RH

47

6691419

CONNECTOR, ELECTRICAL

48

6665370

PLUG
