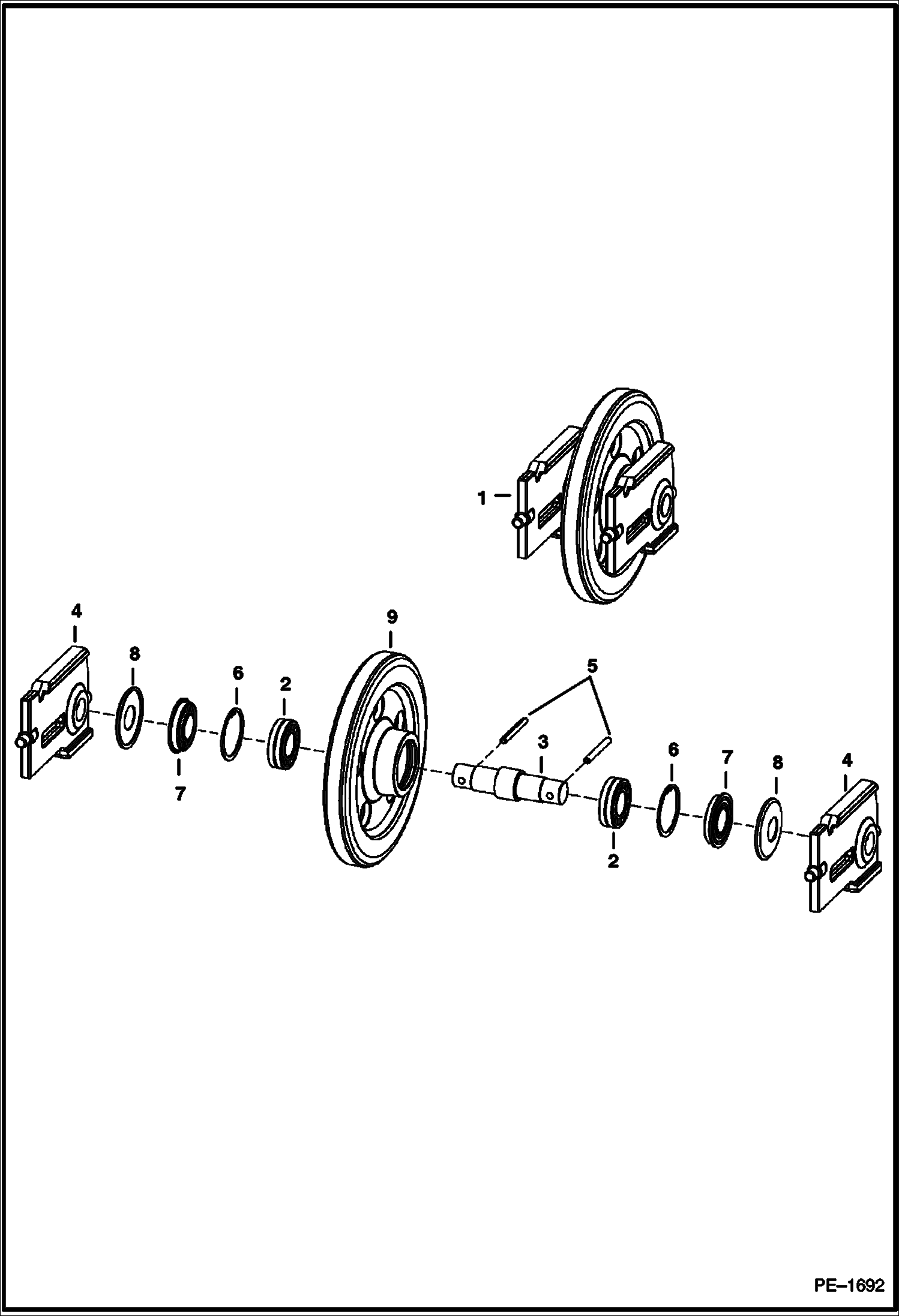

Запчасти Bobcat T-Series FRONT IDLER DRIVE TRAIN

1

IDLER ASSY See Illustration FRONT IDLER/ PE2554 NLA - front - Ref. 2-9 - Order 6686903 - Was 6732902 - A

2

BEARING NLA - Order 6686728 (2), also Order Ref 3 (7108789) - Was 6679884 - A

2

6686728

BEARING

3

AXLE NLA - shaft - 1.97 in. Dia. - Order 7108789, Also order Ref. 2 6686728 bearing (2) - Was 6732875 - A

3

7108789

AXLE shaft - 1.73 in.

4

6730967

BRACKET Use W/Ref. 8

5

2JM1090

ROLL PIN

6

7JM80

SNAP RING

7

6679882

SEAL, OIL

8

6730227

COVER seal

9

6732905

IDLER
