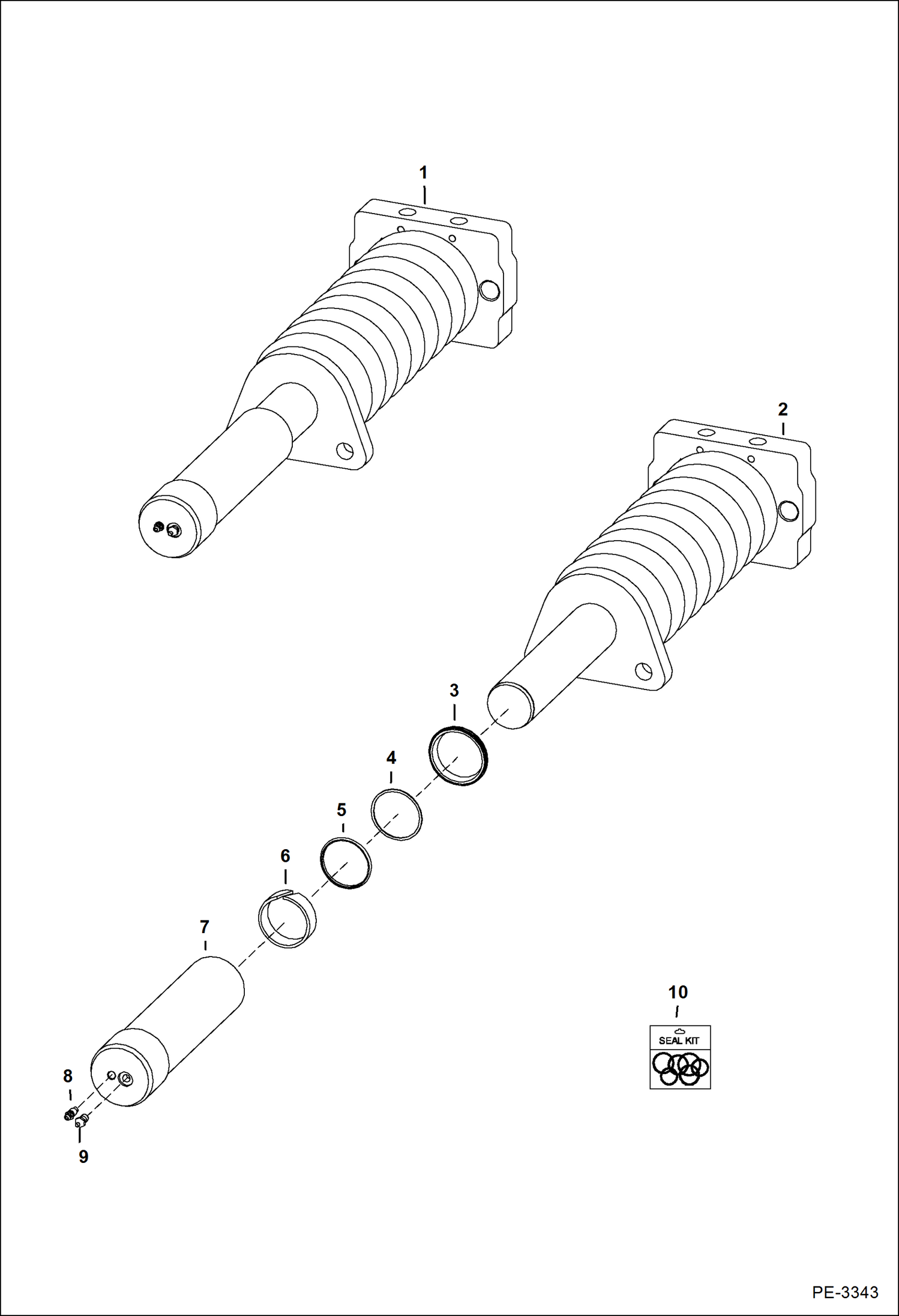

Запчасти Bobcat T-Series TRACK TENSIONER DRIVE TRAIN

1

TRACK TENSIONER See Illustration TRACK TENSIONER/ PE3812 - NLA - Ref. 2-9 - Was 7141595 - A

2

COIL SPRING ASSY NSS - Order Ref. 1

3

6686968

SEAL, WIPER ROD

4

6685154

RING, BACK-UP back-up

5

6672338

O-RING

6

7000773

RING, WEAR .75'' (19,05 mm) wide

7

7141441

TUBE, GREASE

8

6655752

FITTING 68,900 kpa (10,000 psi) - DO NOT SUBSTITUTE

9

6645812

SCREW, BLEED

10

7163219

KIT, SEAL W/Ref. 3-6
