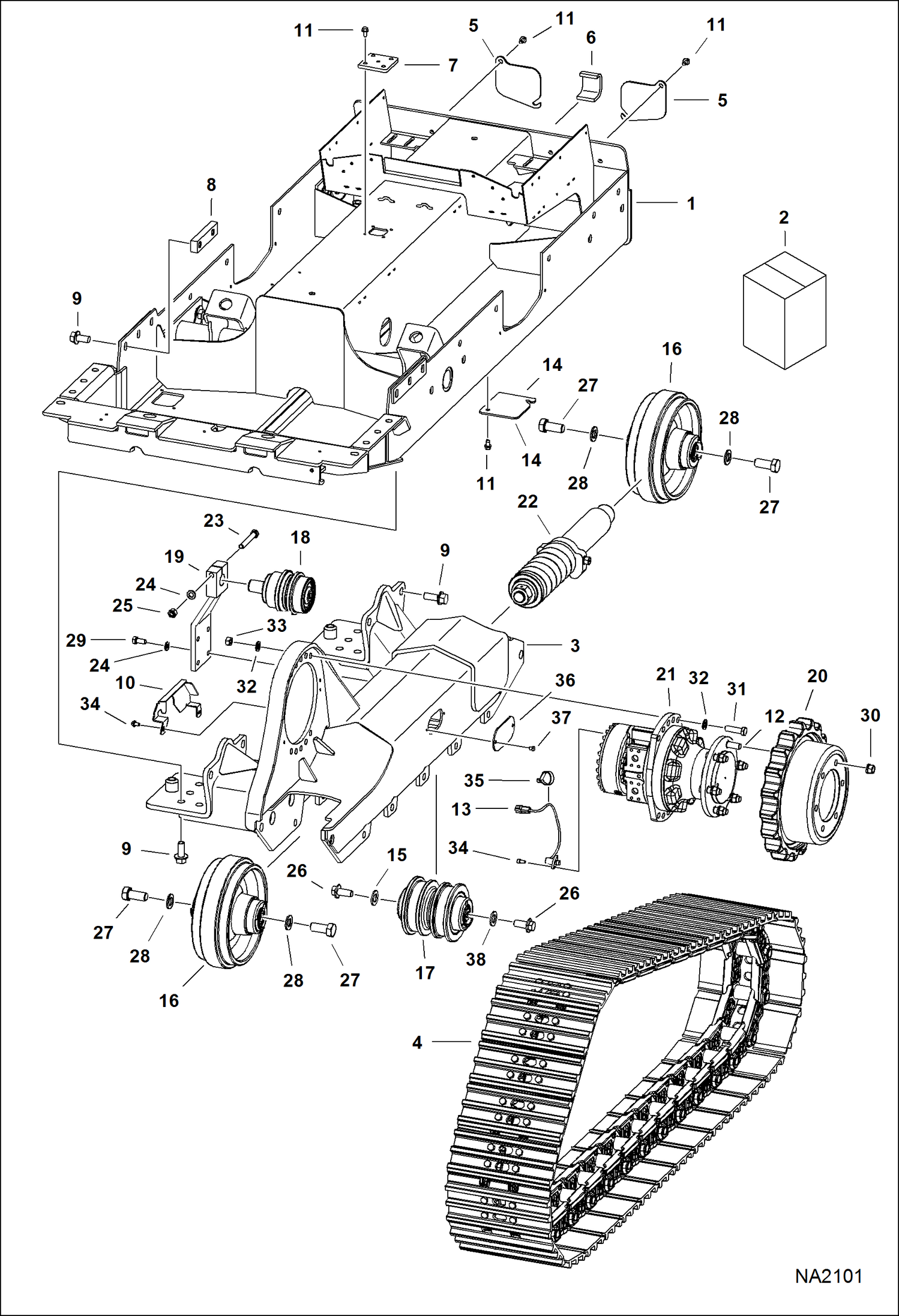

Запчасти Bobcat T-Series DRIVE TRAIN (Steel Tracks) DRIVE TRAIN

1

6730373

DRIVECASE

2

7160424

FRAME, TRACK assy - LH - Ref. 3, 12 & 16-33

2

7160423

FRAME, TRACK assy - RH - Ref. 3, 12 & 16-33

3

FRAME, TRACK NLA - RH - Order Ref. 2 (7160423 frame assy) - Was 7009217 - A

3

FRAME, TRACK NLA - LH - Order Ref. 2 (7160424 frame assy) - Was 7009218 - A

4

TRACK, STEEL See Illustration TRACKS/ NA2120

5

6737088

COVER, ACCESS irregular shape - 146 x 127 mm (5.75 x 5'')

5

7240780

COVER, ACCESS 159 x 127 mm (6.25 x 5'') - Was 6716010 - A

6

6706485

HOOK tie down - weld-on

7

6730378

COVER

8

7124840

BAR

9

31C1228

BOLT

10

7166712

COVER SJC

11

84G3712

BOLT 5

12

6674706

STUD

13

SENSOR, SPEED See BTI419 - NLA - Was 7139902

13

75K5

O-RING

14

7240780

COVER, ACCESS Was 6716010 - A

15

7010566

WASHER Use W/Ref. 26 (7010567 bolt)

16

7009219

IDLER, ASSY

17

ROLLER, LOWER NLA - Use W/Ref. 26 (7009224 bolt) - Order 7011072 roller, & (2) each of Ref. 26 (7010567 bolt) & Ref. 38 - enlarge bolt holes in track frames to .905'' (23 mm) dia to accept Ref

17

7011072

ROLLER, TRACK Use W/Ref. 26 (7010567 bolt) & Ref. 38

18

7009226

ROLLER, UPPER

19

7009225

SUPPORT

20

7009231

SPROCKET, MOTOR DRIVE TRACK

21

6690156

MOTOR, DRIVE HYD See Illustration HYDROSTATIC MOTOR & BRAKE/ MS2290

22

7009222

TENSIONER, TRACK ASSY See Illustration TRACK TENSIONER/ NA2119

23

7009228

BOLT

24

7009229

WASHER

25

7009230

NUT

26

7009224

BOLT 3/4'' dia - Use W/Ref. 17 (NLA/ 7009223 roller)

26

7010567

BOLT 7/8'' dia - Use W/Ref. 17 (7011072 roller) & Ref. 38

27

7009221

BOLT

28

7009220

WASHER

29

7009227

BOLT

30

6691215

NUT

31

7009233

BOLT

32

7009232

WASHER, LOCK

33

7009234

NUT

34

7102184

SCREW SJC

35

6624289

STRAP, TIE SJC - Was 6678669 - B

36

7010243

COVER, ACCESS

37

7010244

SCREW
