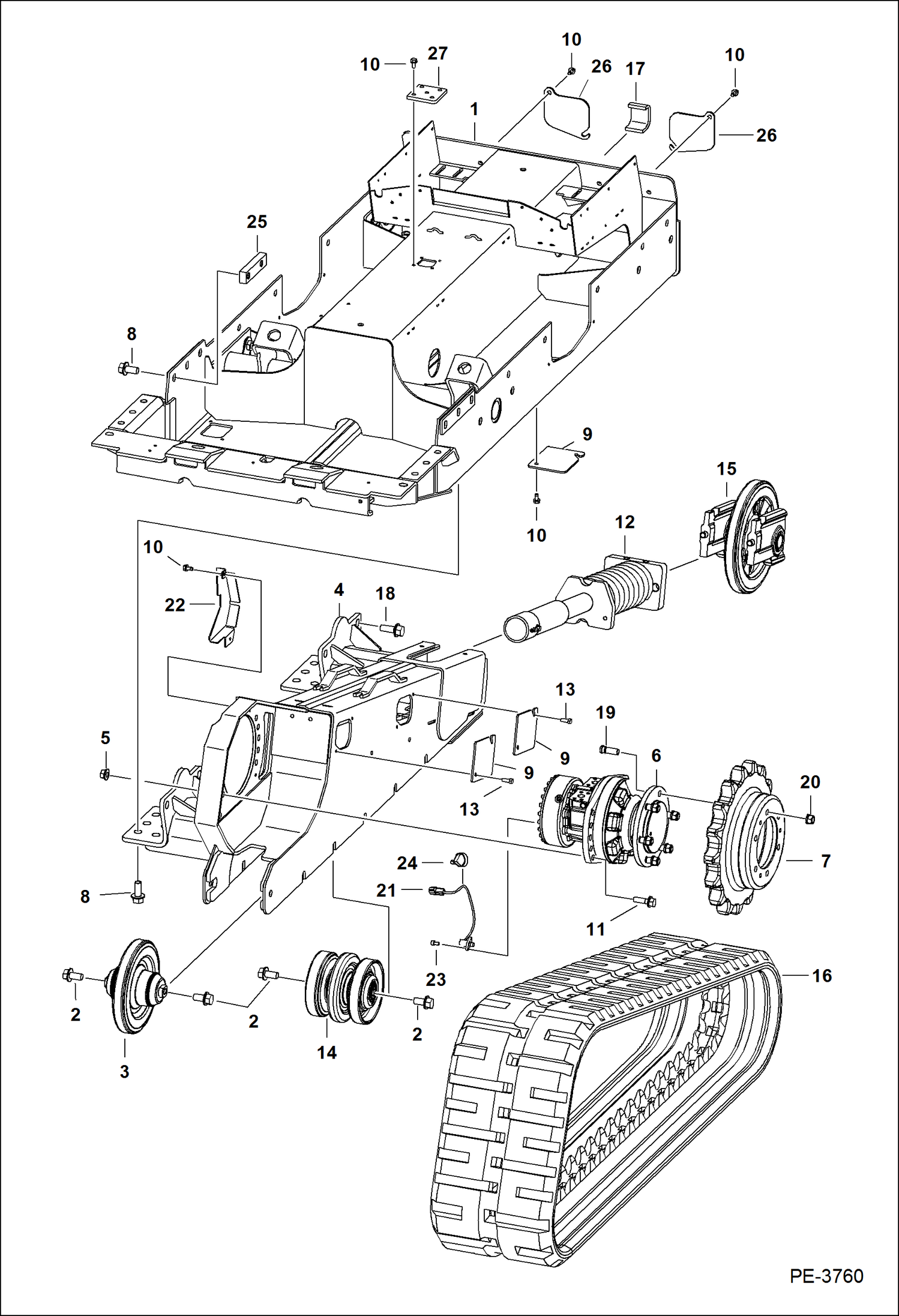

Запчасти Bobcat T-Series DRIVE TRAIN (Solid-Mounted Undercarriage) (S/N A5GS11001 - 20261, A5GT11001 - 20079) DRIVE TRAIN

1

DRIVECASE See Illustration ENGINE & ATTACHING PARTS/ PE3755 - NLA - Order 6730373 drivecase, (4) each of 7116850 spacer, 43C860 bolt & (8) each of 7116851 cup, 7161717 mount - Was 6730373 - A

1

6730373

DRIVECASE frame only

2

31C1224

BOLT services 31C1228 in this application

3

IDLER, REAR 2 See Illustration REAR IDLER/ PE2555 - NLA - W/threaded holes - 1.38'' (35 mm) deep threads - Was 6693238 - B

3

6693238

IDLER, REAR 2 See Illustration REAR IDLER/ PE2555 - W/threaded holes - 1.77'' (45 mm) deep threads

4

7120454

FRAME, TRACK RH RH

4

7120455

FRAME, TRACK LH LH

5

53D10

NUT

6

MOTOR See Illustration HYDROSTATIC MOTOR & BRAKE/ MS2290

7

7165109

SPROCKET, MOTOR DRIVE TRACK Was 7107787 - A

8

31C1228

BOLT

9

7240780

COVER, ACCESS Was 6716010 - A

10

84G3712

BOLT 5

11

31C1032

BOLT

12

TENSIONER, TRACK ASSY See Illustration TRACK TENSIONER/ PE1223

13

17C616

BOLT 5

14

ROLLER, TRACK 2 See Illustration TRACK ROLLER/ PE2556 - NLA - W/threaded holes - 1.38'' (35 mm) deep threads - Was 6689371 - B

14

6689371

ROLLER, TRACK 2 See Illustration TRACK ROLLER/ PE2556 - W/threaded holes - 45 mm (1.77'') deep threads

15

6693237

IDLER, FRONT 2 See Illustration FRONT IDLER/ PE2554

16

TRACK, RUBBER See Illustration TRACKS/ NA6162

17

6706485

HOOK tie down - weld-on

18

31C1232

SCREW

19

6674706

STUD

20

6691215

NUT Was 6674724 - A

21

SENSOR, SPEED See BTI419 - NLA - Was 7139902

21

75K5

O-RING

22

6737543

COVER RH - selectable joystick controls

22

6737417

COVER LH - selectable joystick controls

23

7102184

SCREW selectable joystick controls

24

6624289

STRAP, TIE selectable joystick controls - Was 6678669 - B

25

7124840

BAR 2 hole threaded

26

6737088

COVER, ACCESS

27

6730378

COVER
