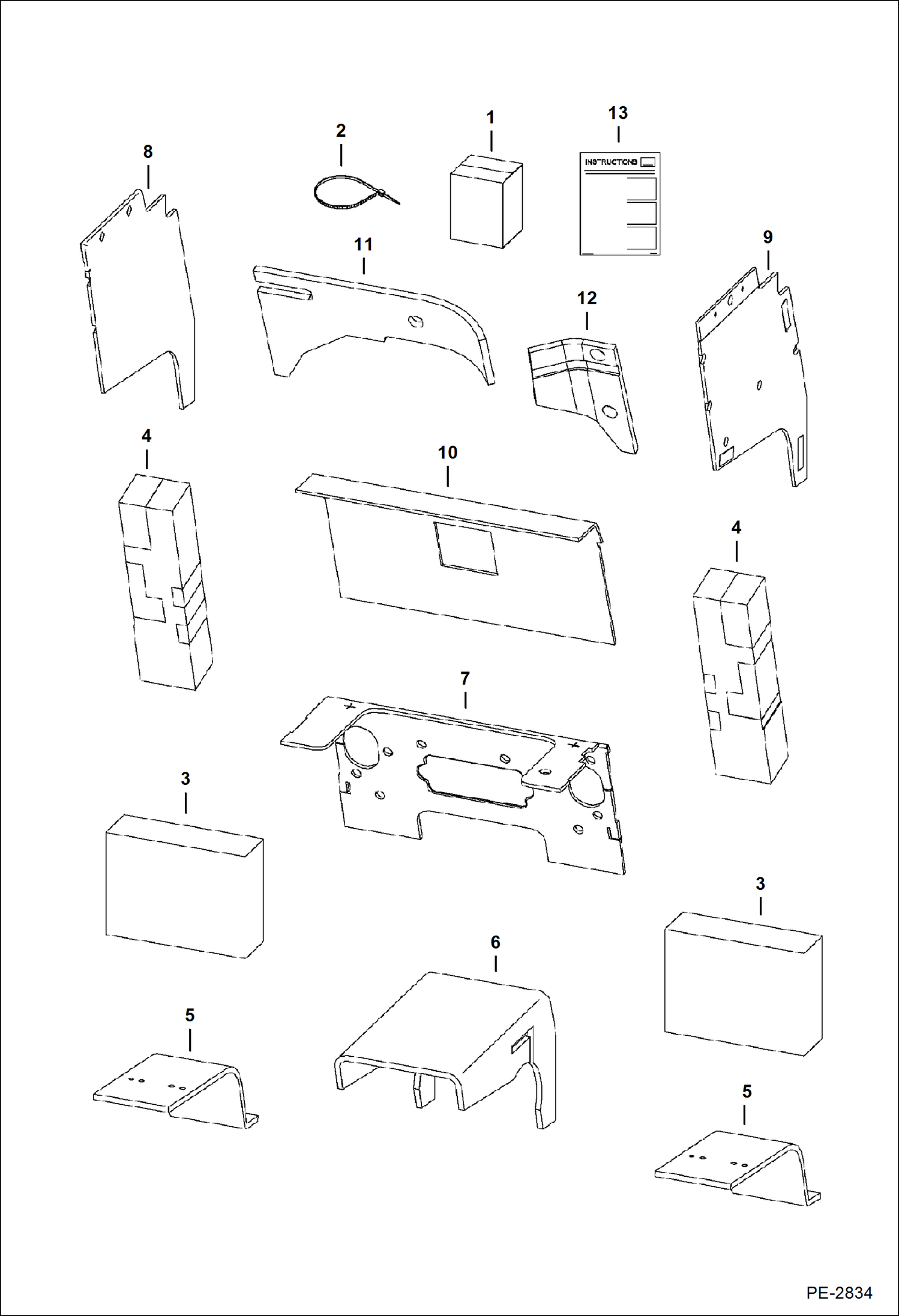

Запчасти Bobcat T-Series SOUND/NOISE REDUCTION OPTION (Manual Controls, AHC & ACS) (S/N 531813473 & Below, 531911429 & Below) ACCESSORIES & OPTIONS

1

7139040

KIT Ref. 2-13

2

6624289

STRAP, TIE

3

6703967

INSULATION fender - Was 7152242 - B,D

4

6730573

INSULATION transmission

5

6732583

INSULATION pedal shield

6

7101533

INSULATION transmission

7

7101535

INSULATION steering panel

8

7101536

INSULATION panel - LH

9

7101537

INSULATION panel - RH

10

7101538

INSULATION crossmember

11

6719332

INSULATION blower housing - Was 7123854 - D

12

7140616

INSULATION blower housing - Was 6719333 - A

13

6986528

INSTRUCTIONS
