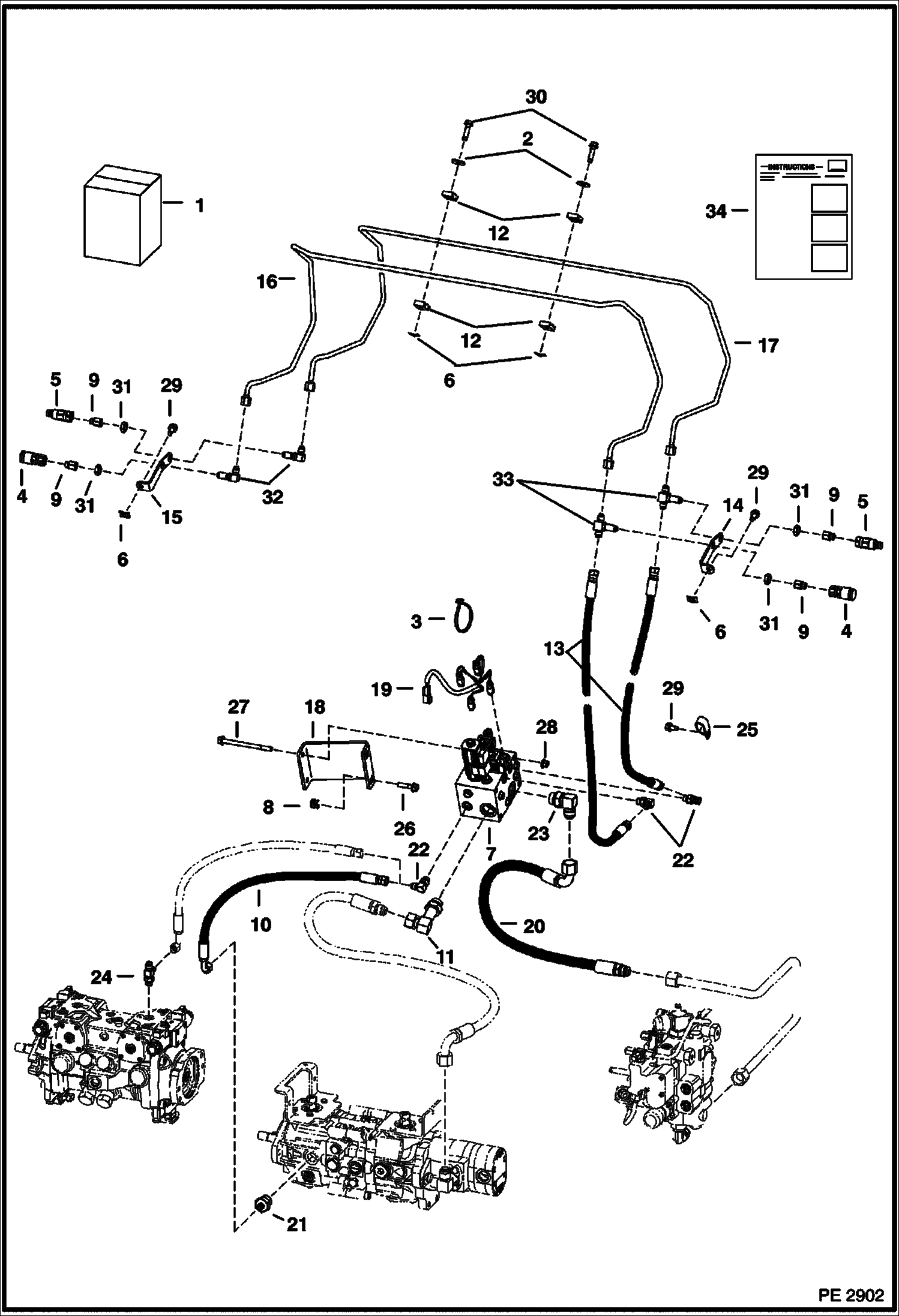

Запчасти Bobcat T-Series REAR AUXILIARY HYDRAULIC KIT ACCESSORIES & OPTIONS

1

7116600

KIT, AUX REAR

2

619021

WASHER, 5

3

6624289

STRAP, TIE

4

6667803

COUPLER, FF FEMALE

5

6667804

COUPLER, FF MALE

6

6684033

NUT

7

6685624

VALVE, AUX REAR

8

6685663

NUT, RETAINING

9

6706633

ADAPTER

10

6711166

HOSE

11

6691055

ELBOW Was 7124922 - A

12

6726277

CLAMP

13

6735684

HOSE

14

6736438

MOUNT

15

6736440

MOUNT

16

6736442

TUBELINE

17

6736443

TUBELINE

18

6737201

MOUNT

19

7102338

HARNESS jumper - W/ 6-pin connector & 2-pin connectors (4) - Use W/Ref. 1 (7116600 kit)

20

7120956

HOSE

21

15KB0612

FITTING, HYD CONNECTOR

22

17KB0606

FITTING

23

17KB1212

FITTING, HYD ELBOW

24

21KB0606

FTG HYD STRAIGHT TEE

25

31H38

CLAMP

26

35C624

BOLT

27

17C680

BOLT

28

83D6

NUT 5

29

84G3712

BOLT 5

30

84G3724

BOLT

31

86F5

NUT

32

88F5

ELBOW

33

90F5

TEE

34

6904734

INSTRUCTIONS Use W/Ref. 1 (7116600 kit)
