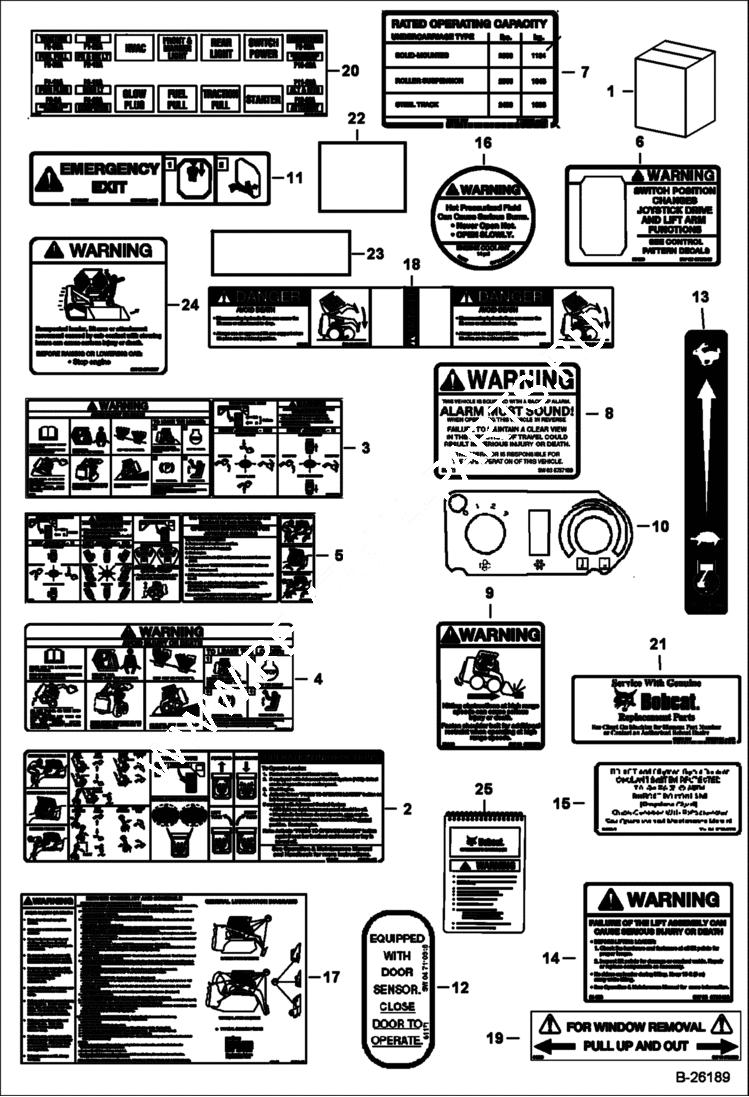

Запчасти Bobcat T-Series DECALS (Inside) ACCESSORIES & OPTIONS

1

6904767

DECAL KIT Except where noted, includes decals from this ILL. & ILL. B26190

1

7120292AR

KIT, TRANSLATION T250 SPANISH Argentina

1

7120292BR

KIT, TRANSLATION T250 PORTUGUESE Brazil

1

7120293AR

KIT, DECAL Argentina

1

7120293BR

KIT, DECAL Brazil

1

7120293JP

KIT, DECAL Japan

2

6727926

DECAL, OPERATION hand & foot controls - not in kit

3

6735255

DECAL, WARNING selectable joystick controls - not in kit

4

6728540

DECAL, WARNING

5

6735256

DECAL, OPERATION seat & seat bar operation - selectable joystick controls

6

6737248

DECAL, WARNING selectable joystick control

7

7177804

DECAL, ROC Was 7170648 - A

8

6737189

DECAL, WARNING backup alarm

9

6725370

DECAL 3-pt seat belt - Not In Kit

10

6718579

DECAL heater control - Not In Kit

11

6707852

DECAL, EXIT emergency

12

DECAL, SAFETY NLA - door sensor - Was 7110316 - A

13

6735140

DECAL, THROTTLE

14

6726423

DECAL, WARNING check before lifting

15

6708929

DECAL, COOLANT propylene glycol

16

6733996

DECAL, WARNING engine coolant - 14 psi

17

6734534

DECAL, SERVICE service checklist & schedule - Was 7124877 - A

18

6809511

DECAL, DANGER hose & tube

19

6726303

DECAL, OPERATION removeable rear window

20

7117407

DECAL, FUSE inside fuse cover - 51 x 178 mm (2 x 7'')

21

6565200

DECAL, FILTER

22

6553976

SAFETY TREAD 127 x 203 mm (5 x 8'')

23

6554100

TREAD 76,2 x 152,4 mm (3 x 6'')

24

6718397

DECAL, WARNING no riders

25

6902808

HANDBOOK, OPERATOR'S W/WIRE ROPE not in kit - Was 6728607 - A

25

6558309

WIRE ROPE bulk - sold per foot

25

6558310

SLEEVE wire rope
