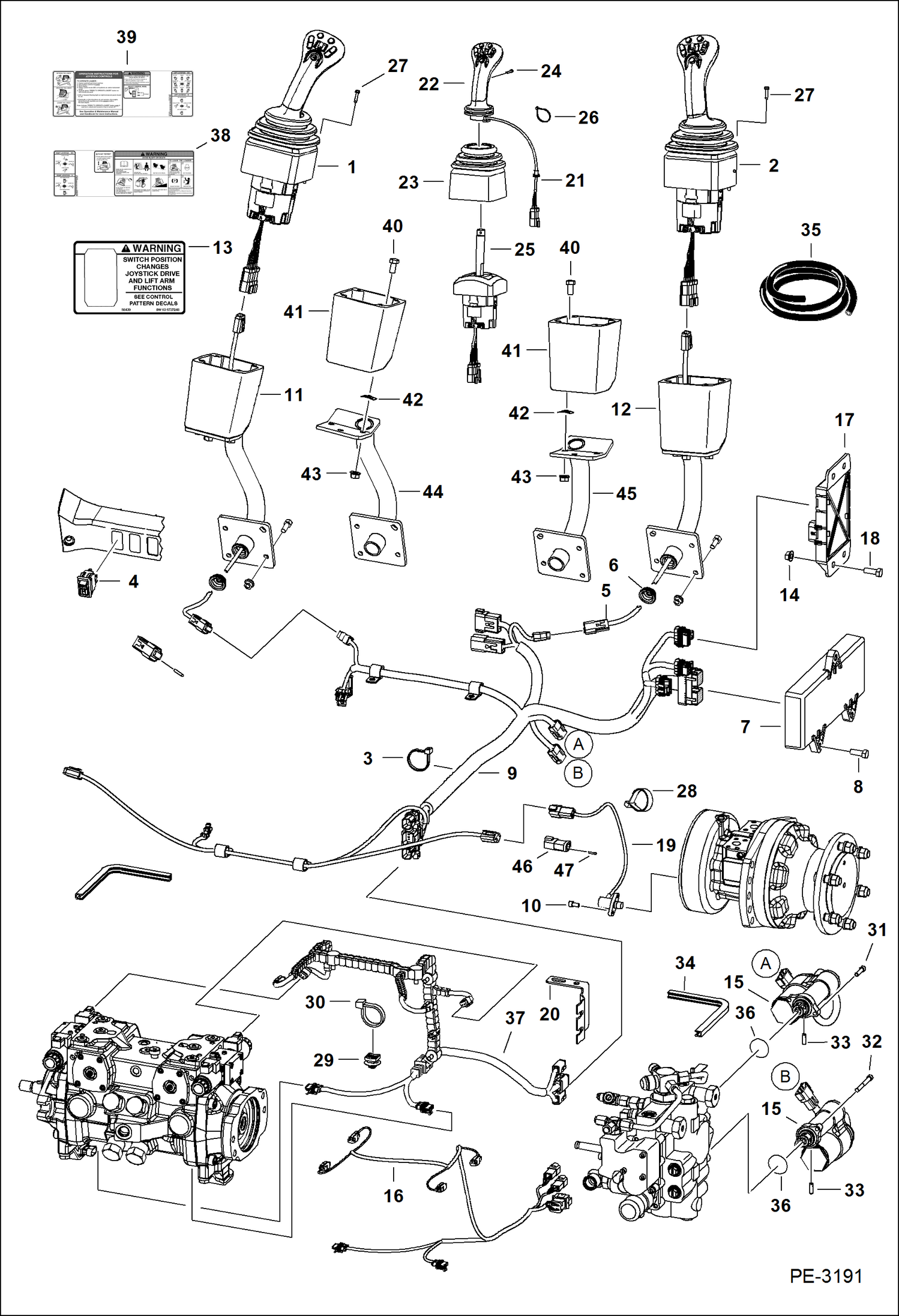

Запчасти Bobcat T-Series CONTROLS ELECTRICAL (Selectable Joystick Controls) (S/N 531812347 & Above, 531911085 & Above) ELECTRICAL SYSTEM

1

JOYSTICK, LH NLA - Order 6697904 joystick, LH & 7152616 harness, adapter - Was 6689920 - A

2

JOYSTICK, RH NLA - Order 6697905 joystick, RH & 7152616 harness, adapter - Was 6689921 - A

3

6624289

STRAP, TIE

4

6683812

SWITCH Was 6689020 - B,D

5

7112828

HARNESS Use W/Ref. 1 (6689920 joystick) & Ref. 2 (6689921 joystick)

6

6684294

GROMMET

7

6679485

CONTROLLER SJC drive - W/single 50-pin connector - Was 6679487 - B,D

8

43C616

BOLT

9

HARNESS, SJC See BTI419 - NLA - W/Speed sensor connectors - Was 7123802 - A

9

7123802

SCJ HARNESS W/O speed sensor connectors

9

HARNESS, SJC See BTI419 - NLA - W/Speed sensor connectors - Was 7136043 - A

9

7136043

HARNESS W/O speed sensor connectors

10

7102184

SCREW

11

HANDLE NLA - LH - Order Ref. 6 & 40-44 - A

12

HANDLE NLA - RH - Order Ref. 6, 40-43 & 45 - A

13

6737248

DECAL, WARNING selectable joystick control

14

97D6

NUT 10

15

7101672

ACTUATOR W/Ref. 36

16

7131601

HARNESS, PUMP Use W/hydrostatic pump Model R902095064 - Was 7114735 - B,D

16

7178411

HARNESS, ADAPTER Use W/hydrostatic pump Model R902136745

17

6680410

CONTROLLER plastic - W/ 3-connector plug

18

17C616

BOLT 5

19

SENSOR NLA - nylon conduit - Order 7139902 sensor - Was 6684443 - B

19

SENSOR, SPEED See BTI419 - NLA - Was 7139902

19

25K20016

O RING 10 Was 25K20100 - B,D

20

7122359

BRACKET

21

HARNESS NSS - Order Ref. 22

22

6689922

HANDLE LH

22

6689923

HANDLE RH

23

6689926

BOOT

24

6689927

BOLT

25

6689924

BASE, JOYSTICK RH

25

6689925

BASE, JOYSTICK LH

26

6691589

100 TIE packaged as 100 pieces

27

29G416

BOLT

28

6678669

STRAP

29

6690688

TREE MOUNT

30

6690690

STRAP, TIE

31

29G416

BOLT

32

69G436

BOLT

33

7108236

PIN

34

MOULDING NLA - 10.5'' (267 mm) long - Order Ref. 35

35

6654139

MOULDING bulk - sold per foot

36

58K120

O-RING Use W/Ref. 15 - Was 6686220 - B,D

37

7198706

HARNESS, PUMP Use W/hydrostatic pump Model R902095064 - W/ 3-pin oval connectors - Was 7139761 - A

37

7188448

HARNESS, PUMP Use W/hydrostatic pump Model R902136745 - W/ 3-pin triangle connectors - Was 7169309 - A

37

6664185

CONNECTOR 2-pin

37

6664969

CONNECTOR 8-pin

37

6687268

FEMALE CONNECTOR 3-pin oval - Use W/Ref. 37 (7198706 harness)

37

6664801

CONNECTOR 3-pin triangle - Use W/Ref. 37 (7188448 harness)

37

6691421

FEMALE CONNECTOR grey - 4-pin rectangular

37

6662248

4 PIN PLUG black

38

7131520

DECAL

39

7131521

DECAL

40

17C612

BOLT 5

41

7124929

BASE

42

6684033

NUT retaining

43

97D6

NUT 10

44

7123817

MOUNT LH

45

7123816

MOUNT RH

46

6691419

CONNECTOR, ELECTRICAL

47

6665370

PLUG
