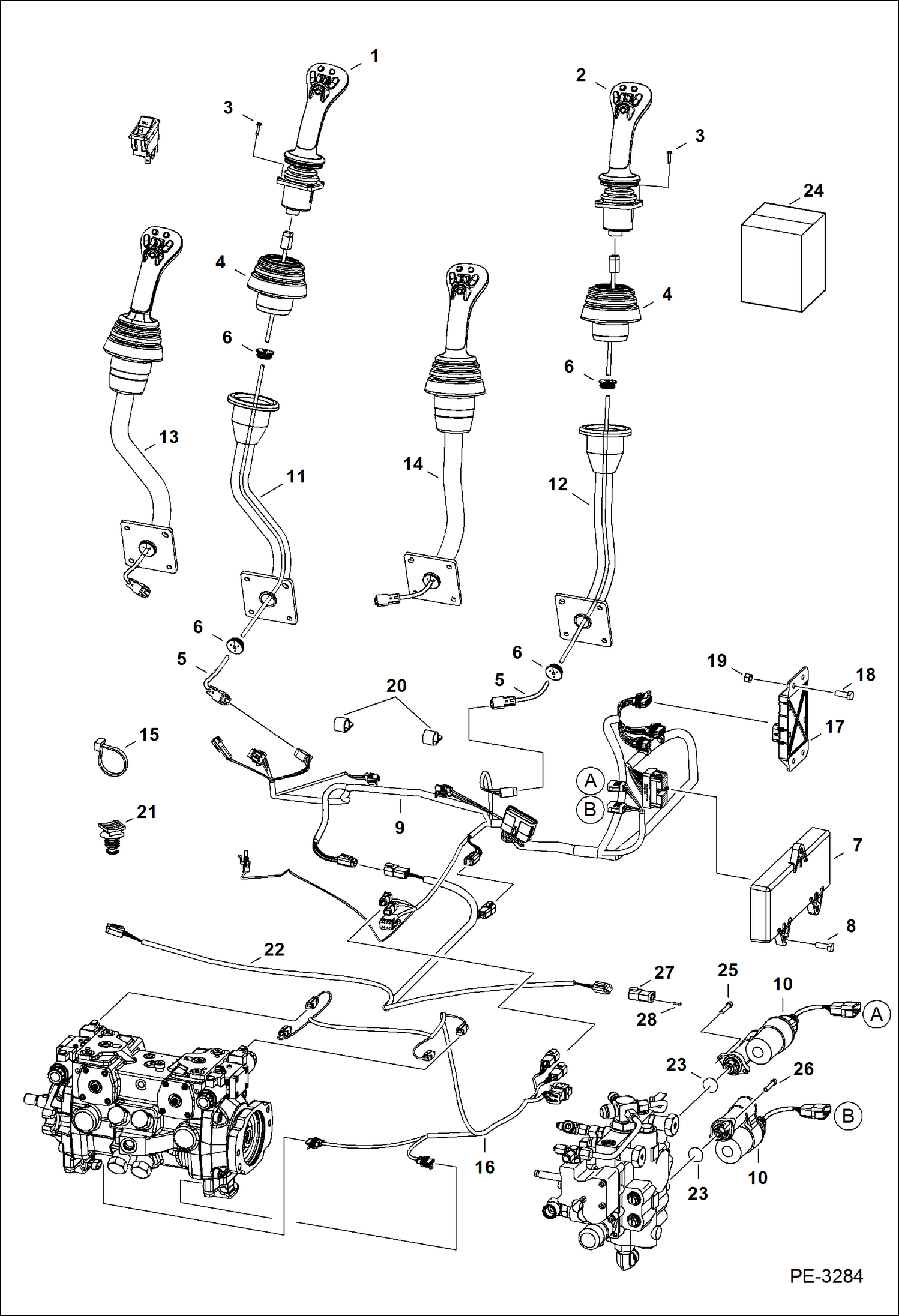

Запчасти Bobcat T-Series CONTROLS ELECTRICAL (Selectable Joystick Controls) (S/N 531811001 - 12346, 531911001 - 11084) ELECTRICAL SYSTEM

1

JOYSTICK LH NSS - Order Ref. 13 - Was 6687883 - A

2

JOYSTICK RH NSS - Order Ref. 14 - Was 6687882 - A

3

BOLT NSS- Order Ref. 24 - Was 6678659 - A

4

6678903

BOOT

5

HARNESS NSS- Order Ref. 24 - Was 6729397 - A

6

6684294

GROMMET

7

6679485

CONTROLLER SJC drive - W/single 50-pin connector

8

43C616

BOLT

9

HARNESS, SJC See BTI419 - NLA - W/Speed sensor connectors - Was 7117036 - A

9

7117036

HARNESS, SJC W/O speed sensor connectors

10

7101672

ACTUATOR W/Ref. 23

11

HANDLE NSS - LH - Order Ref. 13 - Was 6729792 - A

12

HANDLE NSS - RH - Order Ref. 14 - Was 6729791 - A

13

JOYSTICK ASMBLY LH LH - Ref. 1, 3-6 & 11 - Order Ref. 24 - Was 7111993 - C

14

JOYSTICK ASMBLY RH RH - Ref. 2-6 & 12 - Order Ref. 24 - Was 7111992 - C

15

6689641

CABLE TIE

16

7131601

HARNESS, PUMP Use W/hydrostatic pump Model R902095064 - Was 7114735 - B,D

16

7178411

HARNESS, ADAPTER Use W/hydrostatic pump Model R902136745

17

6680410

CONTROLLER plastic - W/ 3-connector plug

18

17C616

BOLT 5

19

97D6

NUT 10

20

30H42

CLAMP

21

6681871

MOUNT

22

6736808

HARNESS jumper for speed sensor

23

58K120

O-RING Use W/Ref. 10 - Was 6686220 - B,D

24

7126558

KIT, JOYSTICK

25

29G416

BOLT

26

69G436

BOLT

27

6691419

CONNECTOR, ELECTRICAL

28

6665370

PLUG
