Запчасти Bobcat T-Series CONTROL PEDALS HYDRAULIC SYSTEM

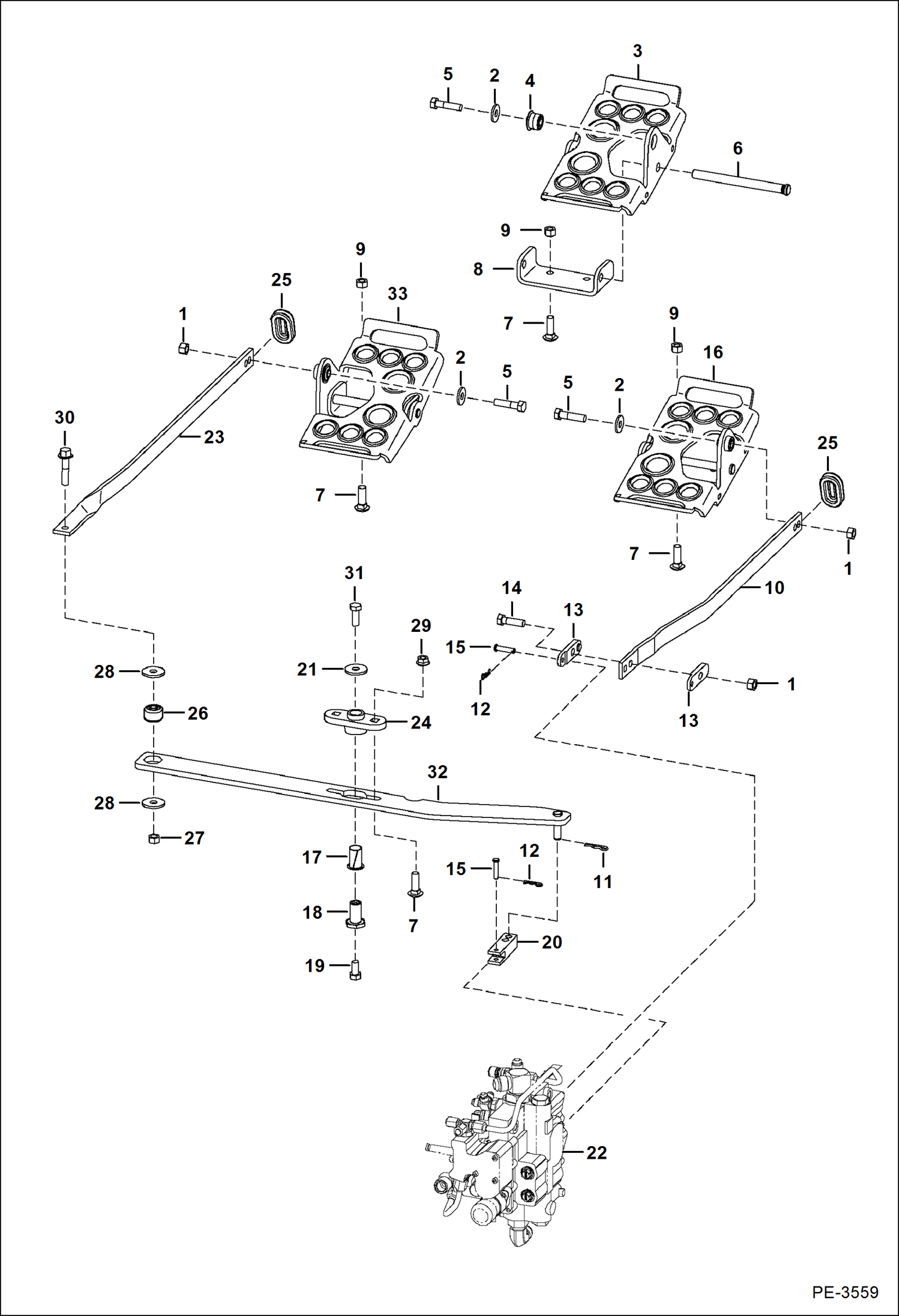

Схема запчастей Bobcat T-Series - CONTROL PEDALS HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

95D6

NUT

2

6563914

WASHER

3

PEDAL NLA - for LH Order Ref. 33, for RH Order Ref. 16

4

6665701

BUSHING, PRESS FIT

5

17C624

BOLT 5

6

PIN NLA

7

37C620

BOLT

8

7115220

MOUNT

9

57D6

NUT 5

10

6731251

BAR

11

1306637

CLIP

12

6513495

COTTER PIN

13

6708009

LINK

14

17C620

BOLT

15

6564654

PIN

16

7123942

PEDAL ASSEMBLY RH - W/Ref. 3, 4, 6 & 8

17

6512026

BUSHING

18

6706104

RETAINING NUT

19

43C612

BOLT

20

6706105

YOKE

21

619021

WASHER, 5

22

VALVE See Illustration HYDRAULIC CONTROL VALVE/ PE2379 See Illustration HYDRAULIC CONTROL VALVE/ PE2378

23

6731252

BAR

24

6708043

BUSHING

25

6577961

GROMMET

26

6685060

BUSHING, TORSION

27

63D6

NUT

28

6737388

WASHER

29

53D6

NUT

30

49C628

BOLT

31

17C616

BOLT 5

32

7122324

LEVER flat

33

7123941

PEDAL ASSEMBLY LH - W/Ref. 3, 4, 6 & 8

Выбрано товаров: 33
