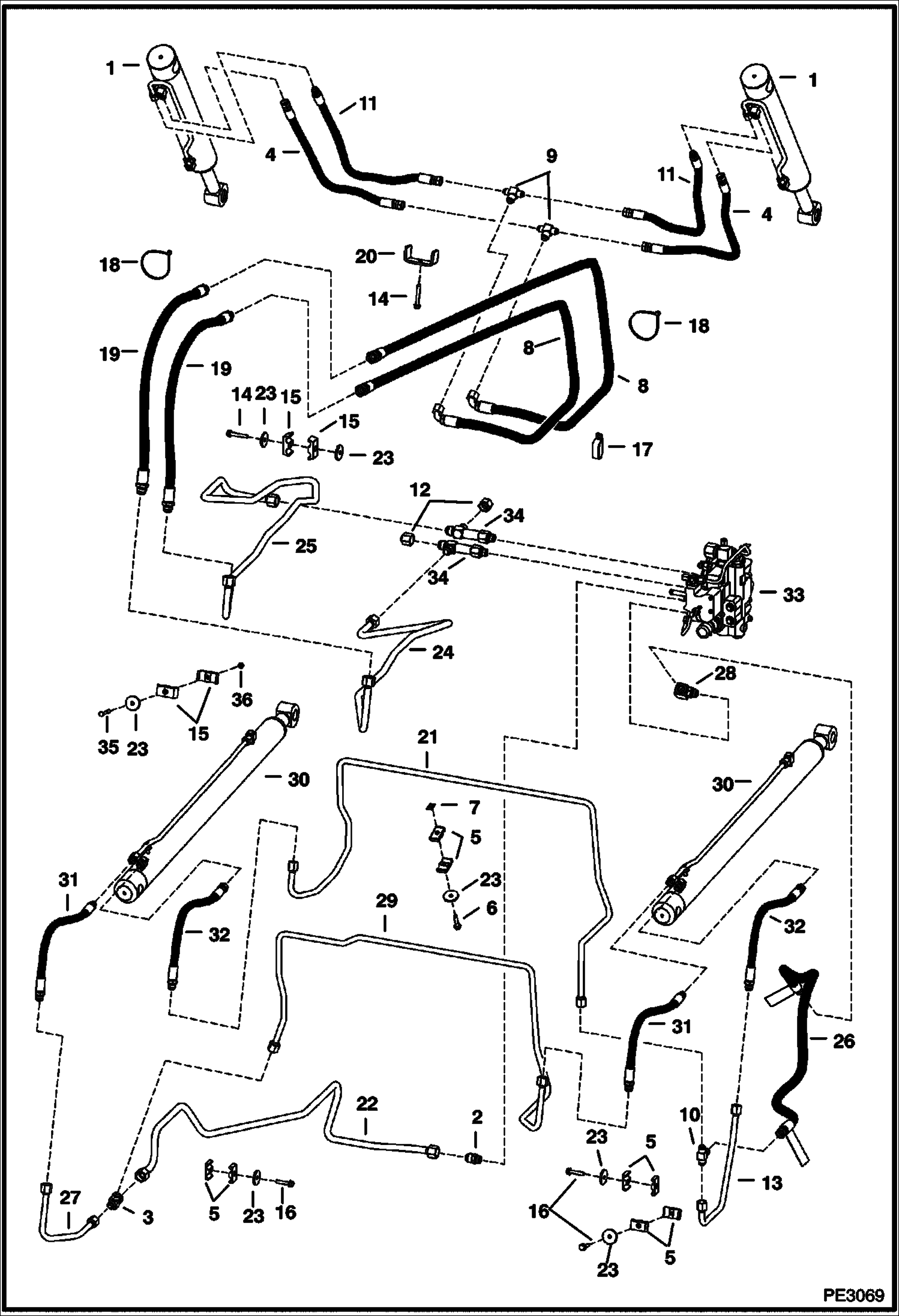

Запчасти Bobcat T-Series HYDRAULIC CIRCUITRY (W/O Bucket Positioning Valve) (W/O Cooling Upgrade) (S/N 531812825 & Below, 531911354 & Below HYDRAULIC SYSTEM

1

CYLINDER See Illustration TILT CYLINDER/ PE1520 - tilt

2

15KB1212

FITTING, HYD CONNECTOR

2

79K10

O RING 10

3

6729686

TEE

4

7102090

HOSE

5

6701893

CLAMP

6

84G3728

BOLT

7

6684033

NUT

8

6736353

HOSE

9

6716061

TEE

10

6729694

TEE

11

7102089

HOSE

12

36K8

CAP

13

6730858

TUBELINE

14

84G3740

BOLT

15

6592506

CLAMP

16

84G3732

BOLT

17

31H49

CLAMP

18

6624289

STRAP, TIE

19

6736352

HOSE

20

6735796

CLAMP

21

7114821

TUBELINE

22

7114812

TUBELINE lift

23

872229

WASHER

24

7114828

TUBELINE tilt

24

7126515

TUBELINE

25

7114829

TUBELINE tilt

25

7126516

TUBELINE

26

6729604

HOSE available only as an assembly W/two danger decals installed

26

6809511

DECAL, DANGER

26

79K10

O RING 10

27

7114820

TUBELINE lift

28

7109623

ELBOW Was 6817335 - A

28

79K10

O RING 10

29

7114813

TUBELINE

30

CYLINDER See Illustration LIFT CYLINDER/ PE2016 - lift

31

7100626

HOSE

32

7100627

HOSE

33

VALVE

34

6730914

TEE

34

79K10

O RING 10

35

1CM540

BOLT

36

59D5

NUT 5
