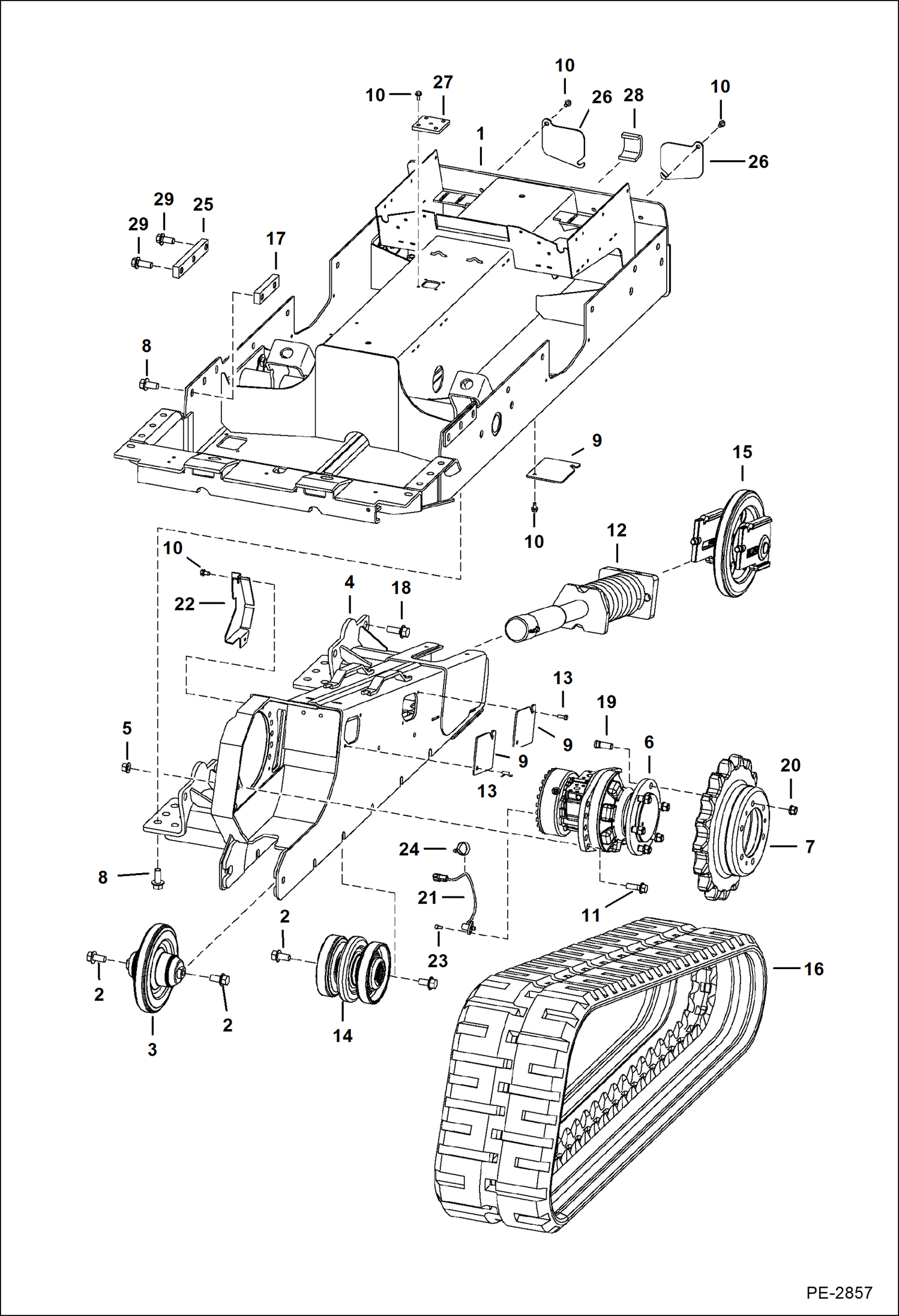

Запчасти Bobcat T-Series DRIVE TRAIN DRIVE TRAIN

1

6730373

DRIVECASE

2

31C1224

BOLT

3

IDLER, REAR 2 See Illustration REAR IDLER/ PE2555 - NLA - W/threaded holes - 1.38'' (35 mm) deep threads - Was 6693238 - B

3

6693238

IDLER, REAR 2 See Illustration REAR IDLER/ PE2555 - W/threaded holes - 1.77'' (45 mm) deep threads

4

7120454

FRAME, TRACK RH RH

4

7120455

FRAME, TRACK LH LH

5

53D10

NUT

6

MOTOR See Illustration HYDROSTATIC MOTOR & BRAKE/ MS2143

7

7165109

SPROCKET, MOTOR DRIVE TRACK Was 7107787 - A

8

31C1228

BOLT

9

7240780

COVER, ACCESS Was 6716010 - A

10

84G3712

BOLT 5

11

31C1032

BOLT

12

TENSIONER, TRACK ASSY See Illustration TRACK TENSIONER/ PE1223

13

17C616

BOLT 5

14

ROLLER, TRACK 2 See Illustration TRACK ROLLER/ PE2556 - NLA - W/threaded holes - 1.38'' (35 mm) deep threads - Was 6689371 - B

14

6689371

ROLLER, TRACK 2 See Illustration TRACK ROLLER/ PE2556 - W/threaded holes - 45 mm (1.77'') deep threads

15

6693237

IDLER, FRONT 2 See Illustration FRONT IDLER/ PE2554 Was 6691267 - A

16

TRACK, RUBBER See Illustration TRACKS/ NA6162

17

7124840

BAR 2 hole threaded

18

31C1232

SCREW

19

6674706

STUD

20

6691215

NUT Was 6674724 - A

21

SENSOR, SPEED See BTI419 - NLA

21

75K5

O-RING

22

6737543

COVER RH - selectable joystick controls

22

6737417

COVER LH - selectable joystick controls

23

7102184

SCREW selectable joystick controls

24

6624289

STRAP, TIE selectable joystick controls - Was 6678669 - B

25

6706857

BLOCK 3 hole threaded

26

6737088

COVER, ACCESS

27

6730378

COVER

28

6706485

HOOK tie down - weld-on

29

31C1224

BOLT
