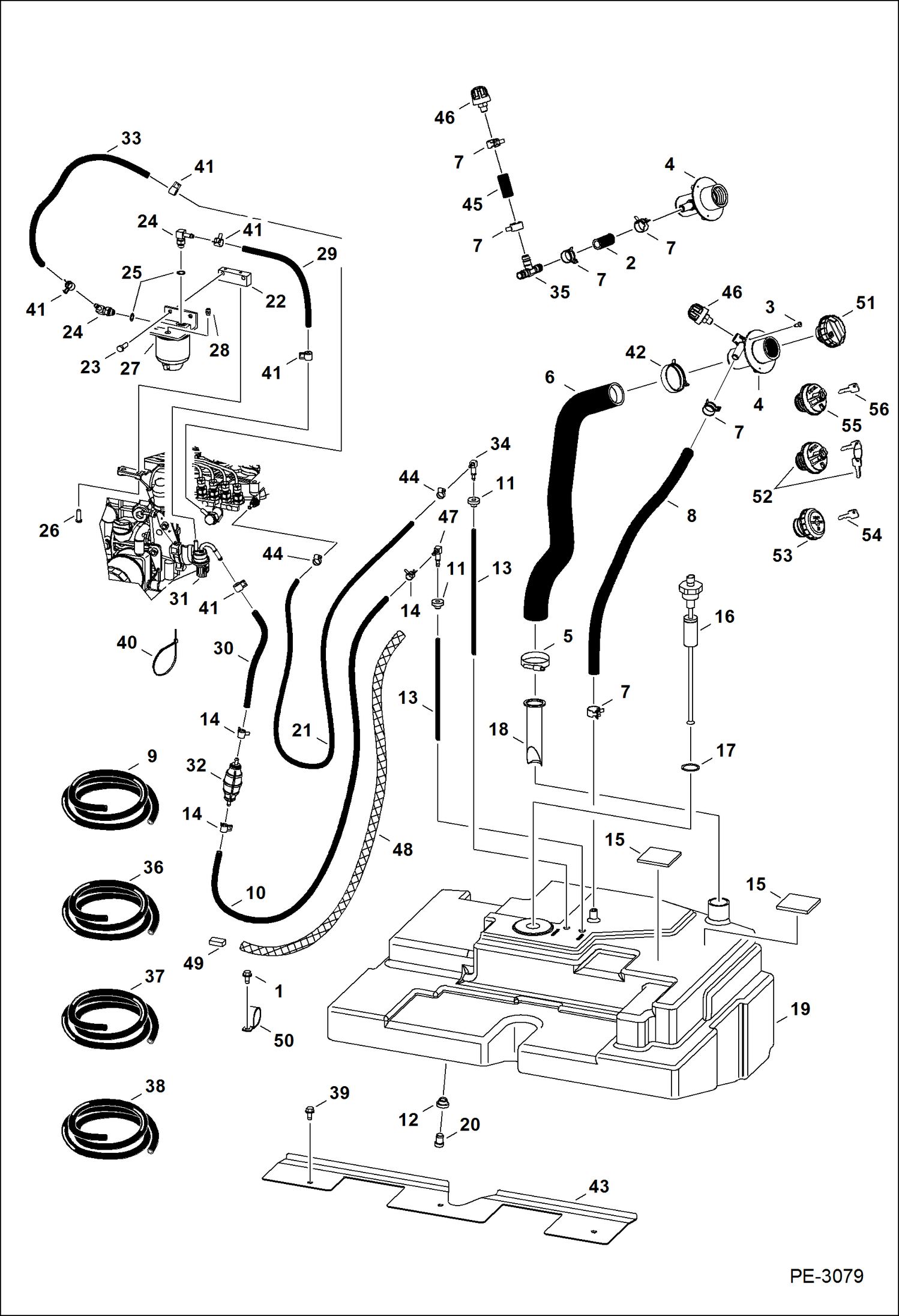

Запчасти Bobcat T-Series FUEL SYSTEM MAIN FRAME

1

84G3712

BOLT 5

2

HOSE NLA - 7'' (178mm) long - Order Ref. 36

3

7106279

BOLT

4

6701449

FILLER TUBE

4

7102303

FILLER TUBE domestic only

5

42HC250

CLAMP

6

7113794

HOSE Was 6730532 - A

7

5HM24

CLAMP

7

5HM24

CLAMP

8

HOSE NLA - 33.5 in. (850 mm) long - domestic only - Order Ref. 36

8

HOSE NLA - 37.25'' (946 mm) long - Order Ref. 36

9

6578169

HOSE bulk - sold per foot - 0.19'' ID

10

HOSE NLA - 29.5'' (749mm) long - Order Ref. 38

10

HOSE NLA - 41.5'' (1054mm) long - Order Ref. 38

11

6735696

GROMMET brown - high temp - .37'' ID

11

6553411

BUSHING 0.38'' ID

12

6717402

BUSHING 0.54'' ID

13

6735249

HOSE, FUEL 11.80'' (300mm) long

14

5HM13

CLAMP

15

6578278

PAD self adhesive one side

16

7179839

SENSOR FUEL W/Ref. 17 - Was 6680438 - A

17

6717579

GASKET

18

7120881

SCREEN, FILLER Was 6569219 - A

19

6735615

TANK

20

7203382

PLUG, STEEL fuel drain - .75'' shoulder - Was 6717401 - A

20

6599645

PLUG, STEEL .50'' (12,25 mm) shoulder

21

HOSE NLA - 50'' (1270mm) long - Order Ref. 9

21

HOSE NLA - 63'' (1600mm) long - Order Ref. 9

22

6731152

MOUNT

23

43C516

BOLT

24

6715183

ELBOW W/Ref. 25

25

79K5

O RING 10

26

45C516

SCREW Was 53C516 - A

27

6667353

FILTER ASSY W/Ref. 28

27

6667352

FILTER, FUEL W/SEPARATOR 12

27

72F1

FITTING

28

6658180

PLUG, BLEED

29

HOSE NLA - 13'' (330mm) long - Order Ref. 37

30

HOSE NLA - 9.25'' (235 mm) long - Order Ref. 38

30

HOSE NLA - 13.13'' (333mm) long - Order Ref. 38

31

FUEL PUMP See Illustration FUEL INJECTION SYSTEM/ B17612

32

6657734

PUMP, PRIMER HAND 124 mm (4.88'') long

33

HOSE NLA - 16'' (406mm) long - Order Ref. 37

34

7101291

ELBOW 3 barb on outlet end

35

7102705

TEE

36

6578172

HOSE bulk - sold per foot

37

6577822

HOSE bulk - sold per foot - .3125'' ID

38

6577821

HOSE bulk - sold per foot - .25'' ID

39

84G3712

BOLT 5

40

6610510

TIE

41

5HM14

CLAMP

42

5HM58

CLAMP

43

6730552

BRACKET

44

42HS04

CLAMP, HOSE

45

HOSE NLA - 2.5'' (63mm) long - Order Ref. 36

45

HOSE NLA - 2.5'' (63mm) long - Order Ref. 36

46

7025626

VENT, BREATHER - Was 6684923 - A

47

6598908

ELBOW

48

7124301

GUARD hose

49

7124326

RETAINER hose

50

30H75

CLAMP

51

6661114

CAP. DIESEL green fuel fill

51

7113340

CAP. DIESEL non-locking - European

52

7121223

CAP. DIESEL LOCKING black

53

6661696

CAP, FUEL LOCKING locking - W/Ref.54 - Code PK510

54

6587458

KEY Code PK510

55

7023550

CAP, DIESEL LOCKING

56

6693241

KEY 10 ignition - single key W/O ring
