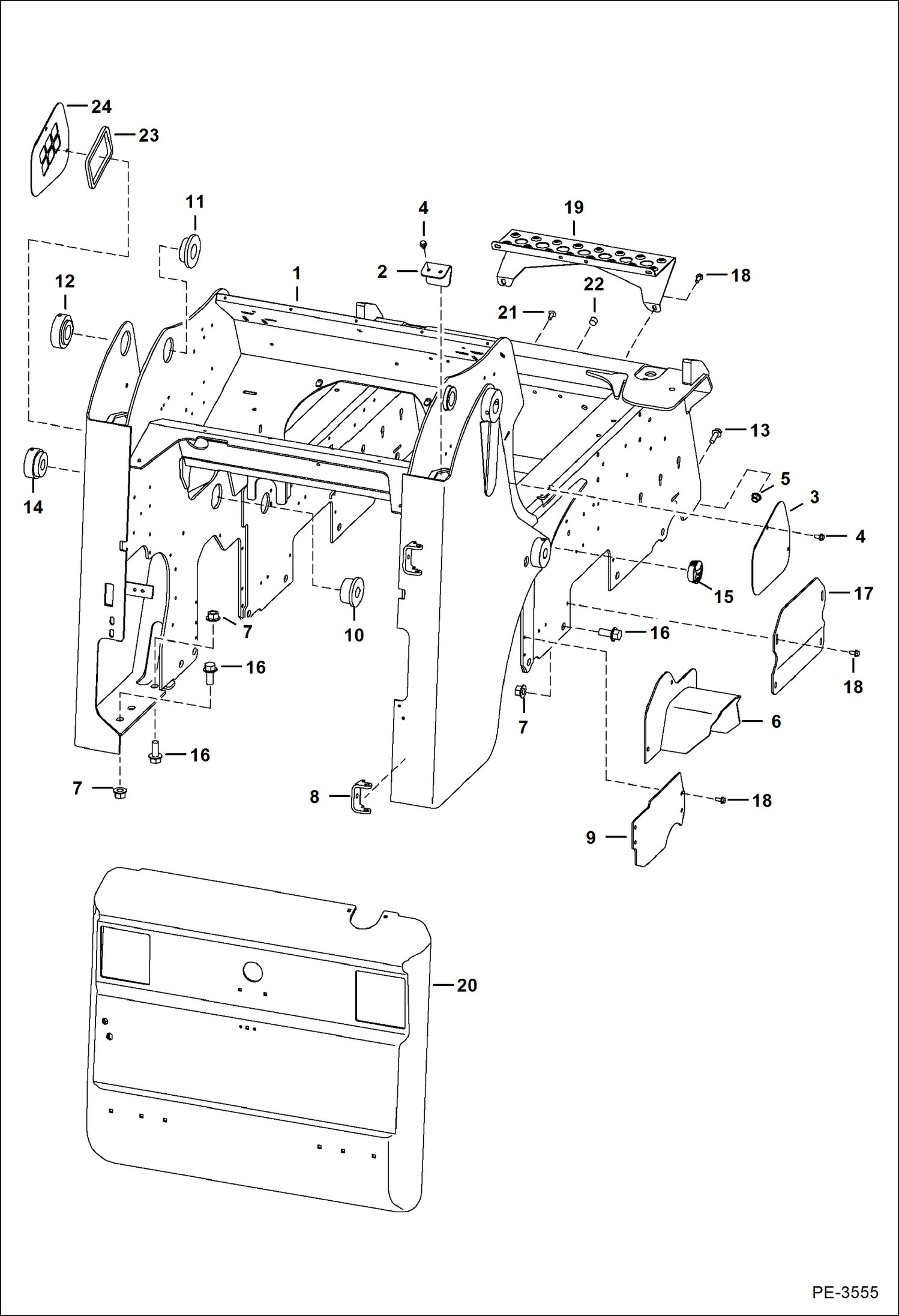

Запчасти Bobcat T-Series MAIN FRAME (S/N 531840050 & Above) MAIN FRAME

1

7147407

FRAME, MAIN ASSY

1

7114934

STOP See BTI379 weld on - 1'' thick - Was 6733784 - A

2

6736121

HOSE COVER hose

3

6733740

COVER

4

84G3708

SCREW

5

83D8

NUT 5

6

6736769

COVER RH

6

6736770

COVER LH

7

53D12

NUT

8

6708987

HINGE, WELD-ON

9

7124841

COVER

10

6730785

BUSHING inside upright weld-on

11

6729401

BUSHING inside upright weld-on

12

6729402

BUSHING outside upright weld-on

13

31C824

BOLT 10

14

6730784

BUSHING outside upright weld-on

15

6718796

PLUG Bobcat head

16

31C1228

BOLT

17

6719201

COVER

18

84G3712

BOLT 5

19

6732577

STEP, MFR

20

6729991

REAR DOOR

21

6669308

RETAINER

22

6679966

PLUG

23

7126496

SEAL

24

7124567

COVER W/vent holes
