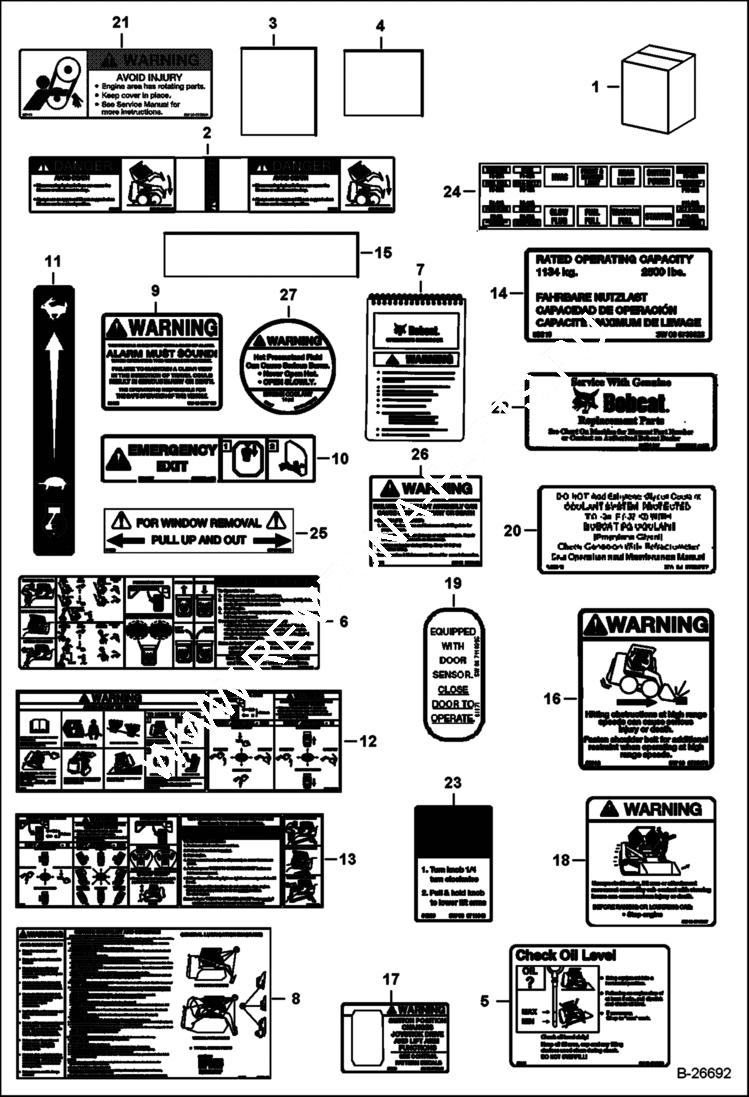

Запчасти Bobcat T-Series DECALS (Inside) ACCESSORIES & OPTIONS

1

7101426AR

TRANSLATION KIT

1

7101426BR

TRANSLATION KIT

1

6903127

DECAL KIT includes decals on this illustration and B26691 unless noted

2

6809511

DECAL, DANGER hydraulic line warning - not in kit

3

6553976

SAFETY TREAD 127 x 203 mm (5 x 8'')

4

6554100

TREAD 76,2 x 152,4 mm (3 x 6'')

5

6717679

DECAL check oil level

6

6727926

DECAL, OPERATION hand & foot controls - not in kit

7

6902808

HANDBOOK, OPERATOR'S W/WIRE ROPE not in kit

7

6558309

WIRE ROPE not in kit

7

6558310

SLEEVE sleeve - not in kit

7

84G3112

BOLT 5 not in kit

8

6734534

DECAL, SERVICE lubrication

9

6737189

DECAL, WARNING backup alarm

10

6707852

DECAL, EXIT emergency

11

6735140

DECAL, THROTTLE

12

6735255

DECAL, WARNING selectable joystick controls - not in kit

13

6735256

DECAL, OPERATION joystick operation - not in kit

14

7149434

DECAL, LOAD operating capacity - Was 6736823 - A

15

7108222

SAFETY TREAD 22.5'' (571,5 mm) wide irregular shape

16

6725370

DECAL seat belt warning

17

6737248

DECAL, WARNING selectable joystick control - not in kit

18

6718397

DECAL, WARNING no riders

19

DECAL, SAFETY NLA - door sensor - Was 7110316 - A

20

6708929

DECAL, COOLANT propylene glycol

21

6708941

DECAL, WARNING rotating parts

22

6565200

DECAL, FILTER

23

6711840

DECAL bypass instructions

24

6718774

DECAL on fuse panel

25

6726303

DECAL, OPERATION removeable rear window

26

6726423

DECAL, WARNING check before lifting - not in kit

27

6733996

DECAL, WARNING engine coolant - 14 psi
