Запчасти Bobcat T-Series CONTROLS ELECTRICAL (Selectable Joystick Controls) (S/N 525613001 & Above, 525712001 & Above) ELECTRICAL SYSTEM

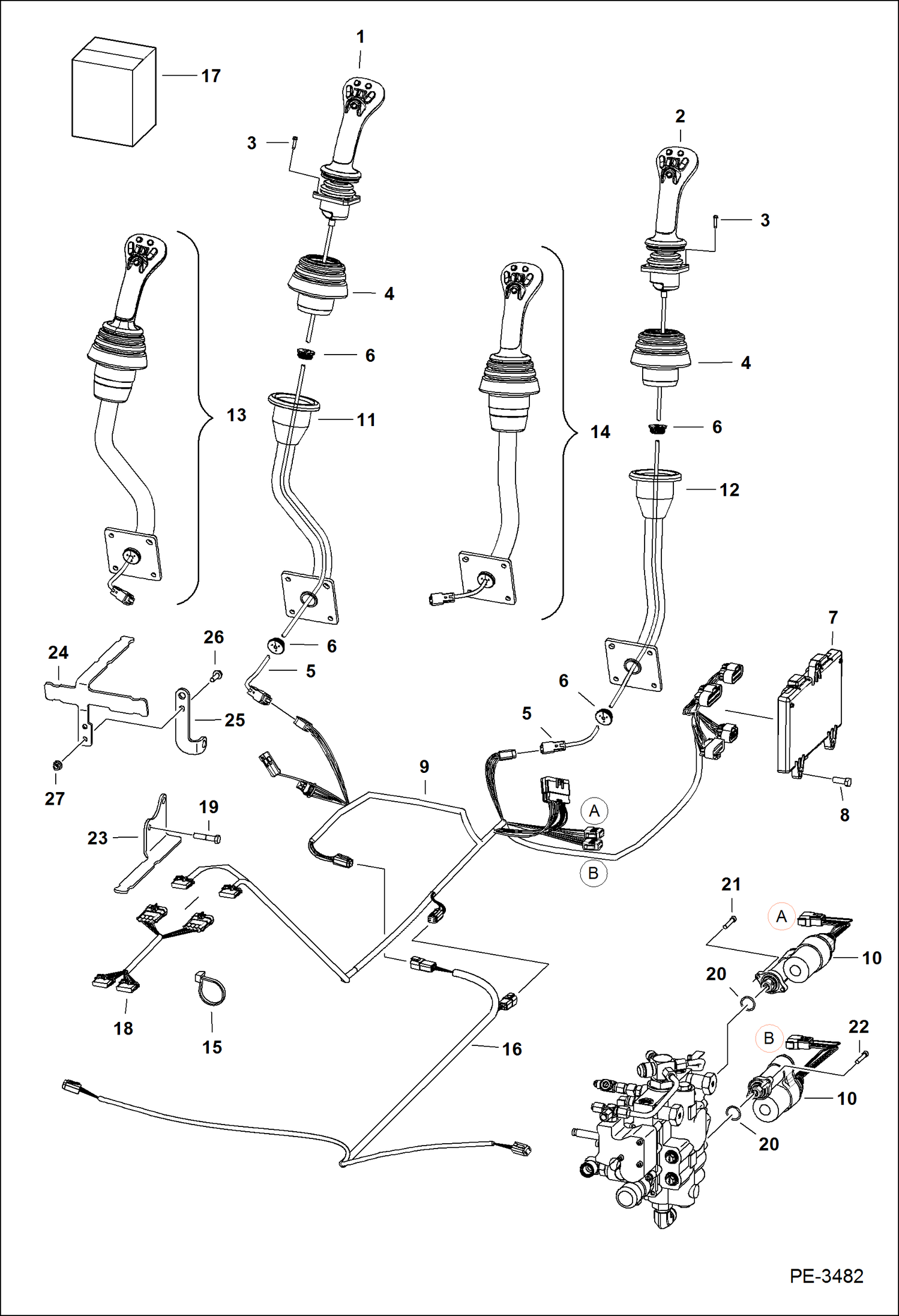

Схема запчастей Bobcat T-Series - CONTROLS ELECTRICAL (Selectable Joystick Controls) (S/N 525613001 & Above, 525712001 & Above) ELECTRICAL SYSTEM

Артикул

Название

Примечание

Количество

1

JOYSTICK LH NSS - Order Ref. 13 - Was 6687883 - A

2

JOYSTICK RH NSS - Order Ref. 14 - Was 6687882 - A

3

BOLT NSS - Order Ref. 17 - Was 6678659 - A

4

BOOT NSS - Order Ref. 17 - Was 6678903 - A

5

HARNESS NSS - Order Ref. 17 - Was 6729397 - A

6

6684294

GROMMET

7

6683608

CONTROLLER joystick

8

43C616

BOLT

9

6736028

HARNESS joystick control - Was 6733293 - B,D

10

7101672

ACTUATOR W/Ref. 20

11

HANDLE NSS - LH - Order Ref. 13 - Was 6729792 - A

12

HANDLE NSS - RH - Order Ref. 14 - Was 6729791 - A

13

JOYSTICK ASMBLY LH LH - Ref. 1, 3-6 & 11 - Order Ref. 17 - Was 7111993 - C

14

JOYSTICK ASMBLY RH RH - Ref. 2-6 & 12 - Order Ref. 17 - Was 7111992 - C

15

6624289

STRAP, TIE

16

6736808

HARNESS jumper for speed sensor

17

7126558

KIT, JOYSTICK

18

7131642

HARNESS, ADAPTER See BTI394 - Use W/Ref. 24

19

BOLT See BTI394

20

58K120

O-RING Use W/Ref. 10 - Was 6686220 - B,D

21

29G416

BOLT

22

69G436

BOLT

23

BRACKET See BTI394 - NLA - bolts to cooling fan - see BTI

24

7159310

BRACKET, HARNESS See BTI394 - bolts to pump

25

HOOK See Illustration HYDROSTATIC PUMP/ B26304

26

1C516

BOLT

27

97D5

NUT

Выбрано товаров: 27
