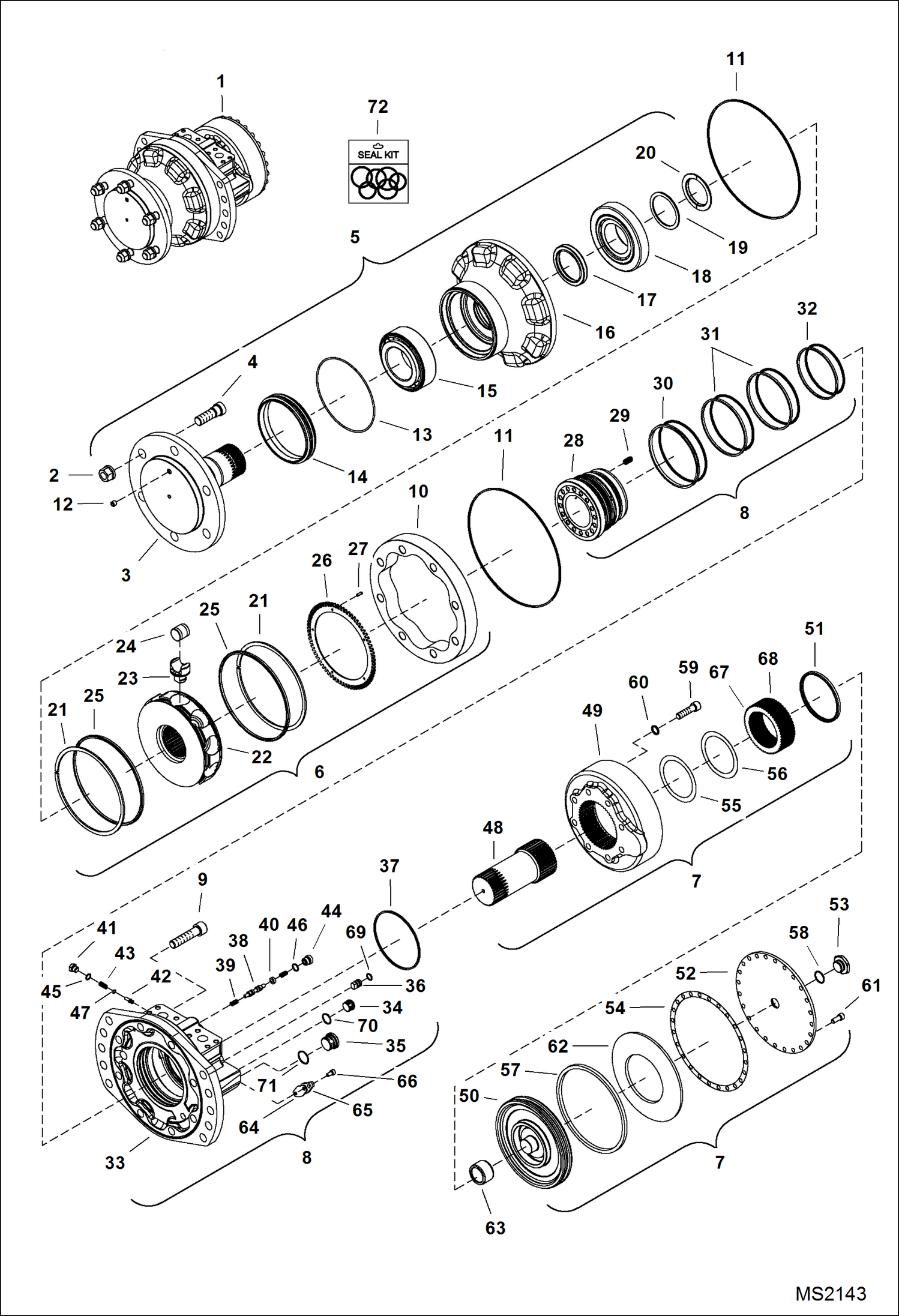

Запчасти Bobcat T-Series HYDROSTATIC MOTOR & BRAKE (Rexroth F Series) (S/N 525613798, 525712111 & Above) HYDROSTATIC SYSTEM

1

MOTOR NLA - Model R921810313 - W/speed sensor port - Order 6690156 or 6690156REM motor - Was 7109868 - A

1

MOTOR NLA - Model R921810313R - W/speed sensor port - Order 6690156 or 6690156REM motor - Was 7109868REM - A

2

6691215

NUT Was 6674724 - A

3

SHAFT NLA - Order complete motor 6690156 - Was 6689114 - A

4

6674706

STUD

5

6689067

HOUSING, MOTOR FRONT See BTI378 Ref. 3, 12, 14-20 - Use W/7107787 sprocket

5

7024981

OIL, SYNTHETIC DRIVE MOTOR 4 236 ml (8 oz) - Was 7003026 - A

6

6689124

ROTATING GROUP Ref. 21-27

7

6681637

BRAKE, HYD MOTOR Ref. 48-63, 67 & 68 - Was 6689123 - A

8

6689125

HOUSING ASSY Ref. 28-47

9

6691217

SCREW M16 x 70mm - The serial number listed is the vendor serial number - Was 6674704 - A

10

6674065

CAM Was 6675234 - A

11

6676597

O-RING

12

6680019

PLUG

13

6689121

O-RING

14

6660019

SEAL

15

6660017

BEARING Was 6689117 - A

16

CASE NLA - Was 6689115 - A

17

6691212

SEAL Was 6674056 - D

18

6660018

BEARING, MOTOR DRIVE Was 6689118 - A

19

WASHER NLA - Was 6689116 - A

20

6660016

RING, SPLIT

21

SNAP RING NLA - Was 6674719 - A

22

6675376

CYL.BLOCK NLA - Order Ref. 6 - Was 6675376 - A

23

6689126

PISTON

24

ROLLER NLA - Was 6674031 - A

25

RET.RING NLA - Was 6675377 - A

26

6685434

DISK RPM target

27

6685433

SPRING PIN

28

6676909

DISTRIBUTOR

29

6660033

SPRING

30

6660034

SEAL Was 6674848 - A

31

6676910

SEAL

32

6660037

SEAL Was 6674846 - A

33

6685436

HOUSING

34

6689129

PLUG W/Ref. 70

35

6685438

PLUG W/Ref. 71 - Was 6690462 - A

36

6660032

PIN

37

6674066

SEAL

38

6675866

SPOOL

39

6674841

SPRING

40

6675867

WASHER

41

6675345

O-RING

42

6689130

POPPET

43

6674344

SPRING

44

6691227

PLUG Was 6688866 - A

45

6676038

O-RING Was 6689132 - A

46

6689133

O-RING

47

6674343

SHIM

48

6681622

SHAFT

49

6678779

HOUSING

50

6681638

PISTON

51

6677828

SEAL

52

6674716

COVER

53

6674707

PLUG

54

6674720

GASKET, MOTOR HYD

55

6674722

SHIM

56

6674723

SHIM

57

6674728

SEAL Was 6691237 - A

58

6674705

O-RING Was 6687082 - A

59

6691238

BOLT Was 6689127 - A

60

6674708

WASHER

61

6689128

BOLT

62

6678780

WASHER

63

6674734

BUSHING

64

6688377

GASKET Was 6688717 - A

65

6688716

COVER

66

6688718

BOLT Was 6689122 - B

67

6674713

DISC inner

68

6674714

DISC outer

69

6674850

O-RING some machines may not have this o-ring, it is not needed

70

O-RING NSS - Order Ref. 34

71

ORING NSS - Order Ref. 35

72

6689681

KIT, SEAL Ref. 11, 14, 17, 30-32, 37, 45, 46, 51, 57 & 58
