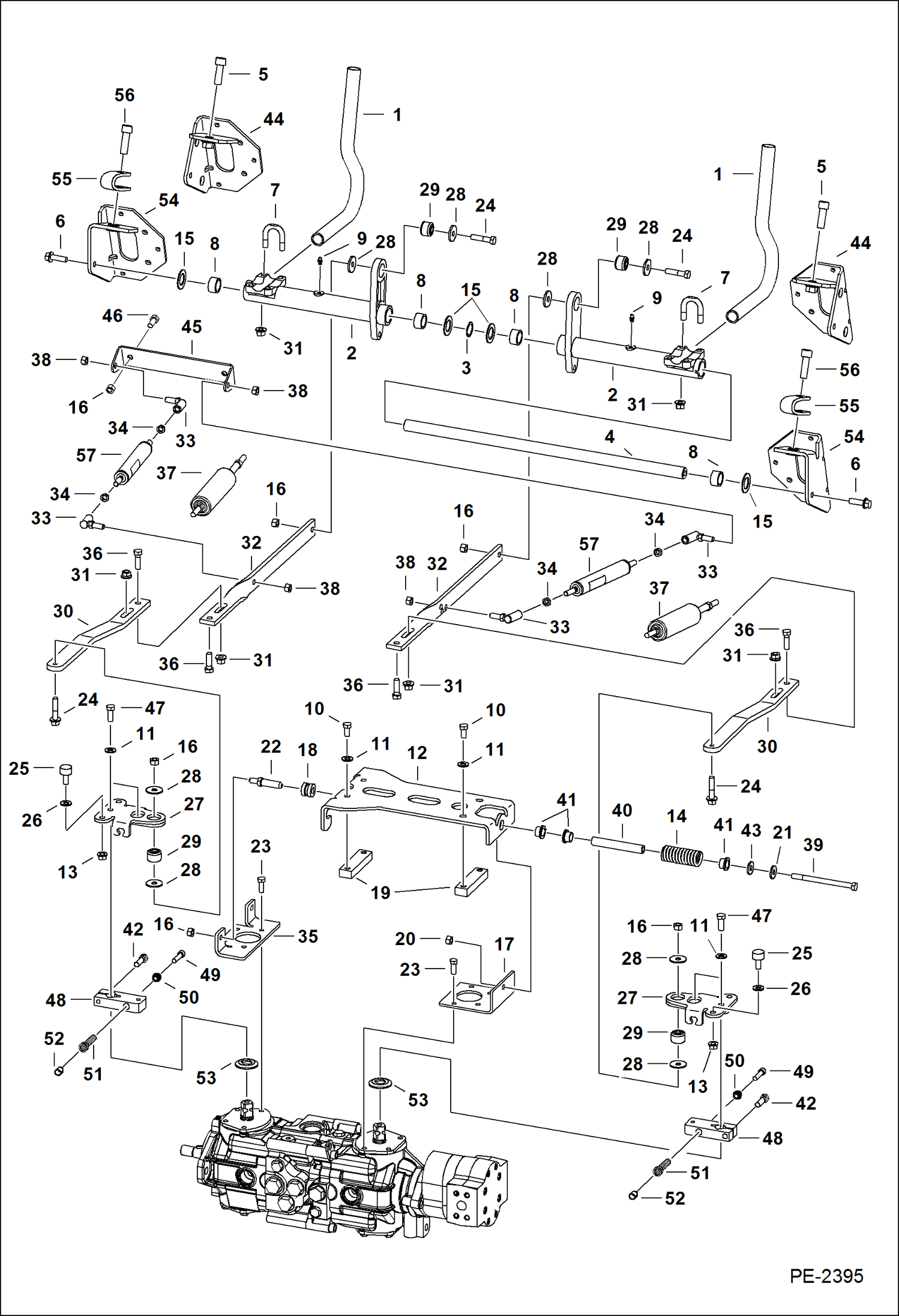

Запчасти Bobcat T-Series HAND CONTROLS (S/N 525611074, 525711003 & Above) HYDROSTATIC SYSTEM

1

6702543

LEVER, STEERING

2

BELLCRANK NLA - For Underslung shocks - Order 7110573 & Ref. 9 (10H35 grease zerk) - Was 6730264 - A

2

BELLCRANK NLA - 1.0475 in. (26,2 mm) I.D. Hole For Ref. 29 (6678067 Bushing) - Use W/Ref. 9 (6518200 Grease Zerk) - Order 7110573 Bellcrank & Ref. 9 (10H000035B Grease Zerk) - Was 7101048 - A

2

7110573

BELLCRANK Use W/Ref. 9 (10H000035B Grease Zerk)

3

6599741

WASHER wave

4

6716545

ROD

5

93G824

BOLT Was 73G824 - A

6

45C620

BOLT

7

6732997

U-BOLT

8

6673710

BEARING, NEEDLE

9

6518200

FITTNG, GREASE 10 press fit

9

10H35

FITTING, GREASE 10 threaded

10

17C616

BOLT 5 Was 7105192 - B

11

6557831

WASHER 0.15'' thick - 0.88'' OD

12

6734298

MOUNT

13

98D6

NUT

14

6701535

SPRING

15

6716916

WASHER

16

95D6

NUT

17

7109904

BRACKET Was 6734742 - A

18

6706098

GUIDE

19

6702716

BLOCK

20

57D6

NUT 5

21

6563914

WASHER

22

6577058

PIN

23

1CM820

BOLT

24

17C626

BOLT

25

6673789

BEARING

26

7100699

WASHER

27

PINTLE ARM NLA - Order 7100365 & Ref. 48 (7103708 bracket), Ref. 49 (7103711 bolt) & Ref. 51 (7105223 spacer) - Was 6734429 - A

27

7110365

ARM, PINTLE Was 7103710 - A

28

6737388

WASHER

29

6685060

BUSHING, TORSION torsion - 26,8 mm (1.055'') OD - Was 6678067 - A

30

6731253

LINK

31

83D6

NUT 5

32

6716117

LINK

33

6599744

BALL JOINT

34

8D6

NUT 5

35

7109905

BRACKET Was 7103314 - A

36

17C620

BOLT

37

GAS SPRING - A

38

96D6

NUT

39

17C680

BOLT

40

6715164

SLEEVE, SPRING

41

6715163

BUSHING, PRESS FIT

42

73G624

BOLT

43

25E24

WASHER AHC & ACS

44

BRACKET NLA - RH - Order Ref. 54-56 - Was 6733022

44

BRACKET NLA - LH - Order Ref. 54-56 - Was 6733024

45

6706106

MOUNT damper - W/O mount for back-up alarm switch

45

7147580

MOUNT damper - W/mount for back-up alarm switch - Was 7100795 - A

46

17C612

BOLT 5

47

47C620

BOLT Was 7105193 - A

48

BRACKET NLA - Order 7103708 pintle arm, Ref. 27 (7110365 pintle arm), Ref. 49 (7103711 bolt) & Ref. 51 (7105223 spacer) - Was 6734299

48

7103708

BRACKET pintle arm

49

74G520

BOLT Use W/Ref. 48 (NLA/ 6734299 bracket)

49

7103711

BOLT Use W/Ref. 48 (NLA/ 6734299 bracket)

50

INSERT NLA - threaded - Use W/Ref. 48 (NLA/ 6734299 bracket) - Was 6737378 - A

50

7105223

SPACER Use W/Ref. 48 (7103708 bracket)

51

6734433

SPRING Use W/Ref. 48 (NLA/ 6734299 bracket)

52

ROLL PIN NLA - Use W/Ref. 48 (NLA/ 6734299 bracket) - Was 4JM01214B - A

53

6687913

SEAL

54

7128600

BRACKET RH

54

7128601

BRACKET LH

55

7121779

PAD

56

73G828

BOLT

57

7188108

GAS SPRING
