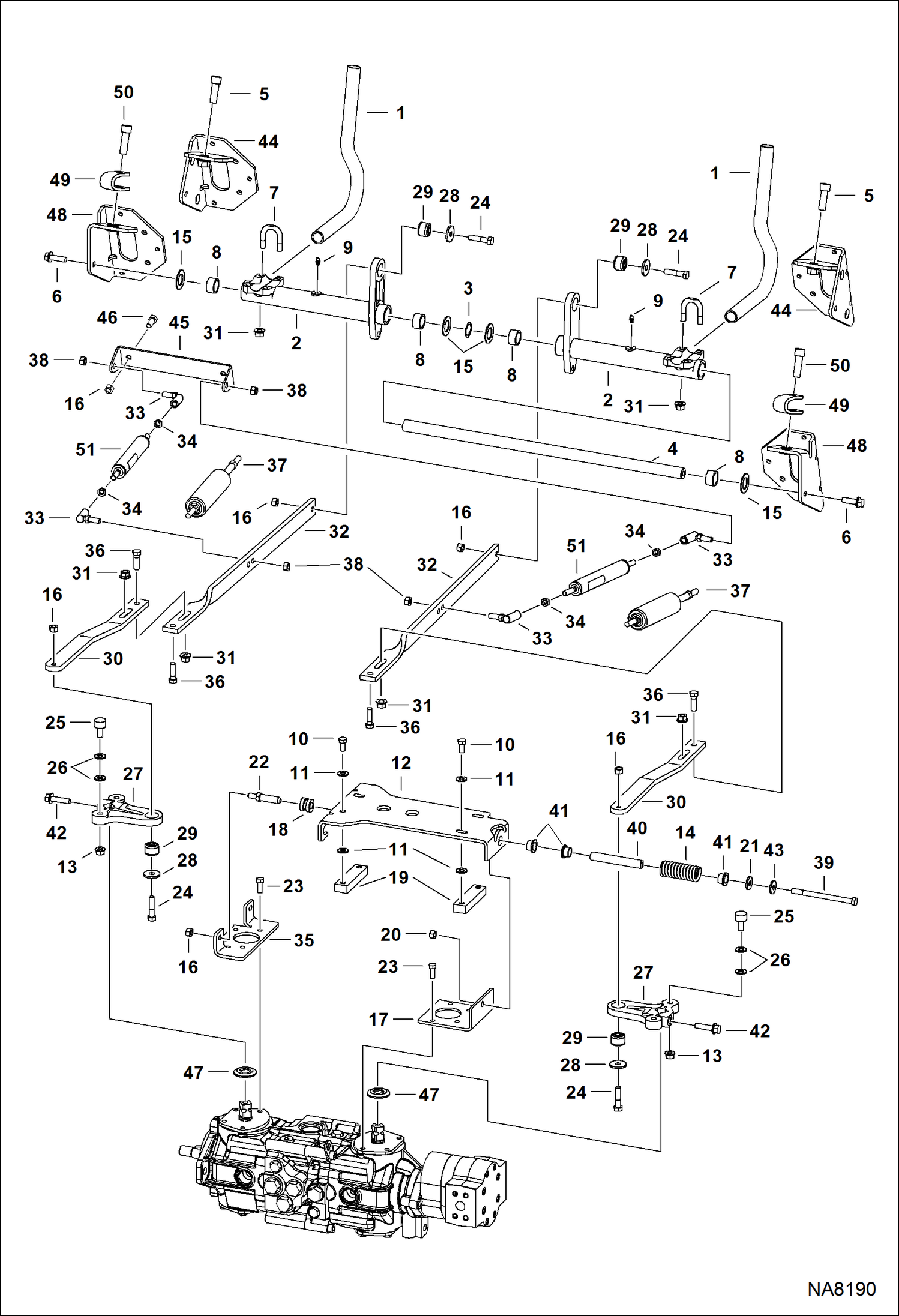

Запчасти Bobcat T-Series HAND CONTROLS (S/N 523011001, 523111001 & Above) (S/N 525611001-11073, 525711001-11002) HYDROSTATIC SYSTEM

1

6702543

LEVER, STEERING

2

BELLCRANK NLA - 1.0475 in. (26,2 mm) I.D. Hole For Ref. 29 (6678067 Bushing) - Use W/Ref. 9 (6518200 Grease Zerk) - Order 7110573 Bellcrank & Ref. 9 (10H000035B Grease Zerk) - Was 7101052 - A

2

7110573

BELLCRANK Use W/Ref. 9 (10H000035B Grease Zerk)

3

6599741

WASHER wave

4

6716545

ROD

5

93G824

BOLT Was 73G824 - A

6

45C620

BOLT

7

6732997

U-BOLT

8

6673710

BEARING, NEEDLE

9

6518200

FITTNG, GREASE 10 press fit

9

10H35

FITTING, GREASE 10 threaded

10

8C616

SCREW

11

6557831

WASHER

12

6706095

MOUNT

13

98D6

NUT

14

6701535

SPRING

15

6716916

WASHER

16

95D6

NUT

17

6576196

MOUNT

18

6706098

GUIDE

19

6702716

BLOCK

20

57D6

NUT 5

21

6563914

WASHER

22

6577058

PIN

23

1CM820

BOLT

24

17C626

BOLT

25

6673789

BEARING

26

25E17

WASHER 5

27

6729956

LEVER, PINTLE

28

619021

WASHER, 5

29

6685060

BUSHING, TORSION torsion - 26,8 mm (1.055'') OD - Was 6678067 - A

30

6731253

LINK

31

83D6

NUT 5

32

6716117

LINK

33

6599744

BALL JOINT

34

8D6

NUT 5

35

7109905

BRACKET

36

17C620

BOLT

37

GAS SPRING NLA - Japan Option - Order Ref. 51 - Was 6649551 - A

38

96D6

NUT

39

17C680

BOLT

40

6715164

SLEEVE, SPRING

41

6715163

BUSHING, PRESS FIT

42

35C624

BOLT

43

25E24

WASHER AHC

44

BRACKET NLA - R.H. - Order Ref. 48-50 - Was 6733022

44

BRACKET NLA - L.H. - Order Ref. 48-50 - Was 6733024

45

6706106

MOUNT damper

46

17C612

BOLT 5

47

6687913

SEAL

48

7128600

BRACKET RH

48

7128601

BRACKET LH

49

7121779

PAD

50

73G828

BOLT

51

7188108

GAS SPRING
