Запчасти Bobcat T-Series HYDROSTATIC MOTOR & BRAKE HYDROSTATIC SYSTEM

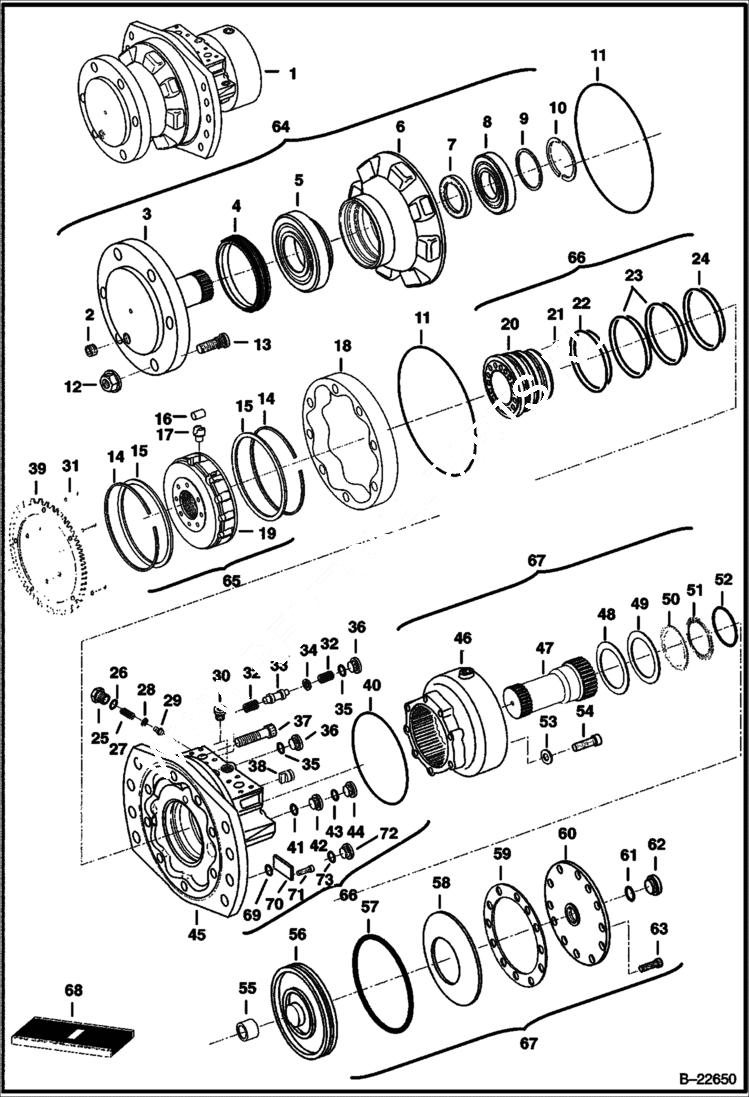

Схема запчастей Bobcat T-Series - HYDROSTATIC MOTOR & BRAKE HYDROSTATIC SYSTEM

Артикул

Название

Примечание

Количество

1

MOTOR See Illustration HYDROSTATIC MOTOR & BRAKE/ MS2290 - NLA - model R921806893 - w/ twin distributor seals - Order 6690156 or 6690156REM motor & 7107787 sprocket - Was 6684440 - A

2

6680019

PLUG

3

6681620

SHAFT

4

6674727

SEAL, OIL

5

6684933

BEARING

6

6681621

HOUSING

7

6691212

SEAL Was 6674056 - D

8

6660018

BEARING, MOTOR DRIVE

9

WASHER NLA - preload - .087'' (2,2mm) thick - Was 6674058 - A

9

WASHER NLA - preload - .091'' (2,3mm) thick - Was 6674059 - A

9

WASHER NLA - preload - .098'' (2,5mm) thick - Was 6689116 - A

9

WASHER NLA - preload - .108'' (2.75mm) thick- Was 6674061 - A

10

6660016

RING, SPLIT

11

6676597

O-RING

12

6691215

NUT Was 6674724 - A

13

6674706

STUD

14

SNAP RING NSS - Order Ref. 19

15

RETAINER NSS - Order Ref. 19

16

ROLLER NSS - Order Ref. 19

17

PISTON NSS - Order Ref. 19

18

6674065

CAM

19

BLOCK NLA - Order Ref. 65

20

6676909

DISTRIBUTOR

21

6660033

SPRING

22

6660034

SEAL W/ O-ring - Was 6674848 - A

23

6676910

SEAL W/ O-ring

24

6674846

SEAL W/ O-ring

25

6674345

PLUG

26

6675869

O-RING

27

6674344

SPRING

28

6674343

SHIM .024'' (0,6mm) thick

29

6674853

POPPET

30

6685437

PLUG

31

6685433

SPRING PIN

32

6674841

SPRING

33

6675866

SPOOL

34

6675867

WASHER

35

6676023

O-RING

36

6676952

PLUG W/Ref. 35

37

6691217

SCREW M16 x 70mm - The serial number listed is the vendor serial number - Was 6674704 - A

38

6660032

PIN

39

6685434

DISK RPM target

40

6674066

SEAL

41

6685460

O-RING

42

6666364

PLUG W/Ref. 41

43

SEAL NSS - Order Ref. 44

44

6685438

PLUG W/Ref. 43

45

6685436

HOUSING

46

6678779

HOUSING

47

6681622

SHAFT

48

6674722

SHIM .004'' (0,1mm) thick

49

6674723

SHIM .012'' (0,3mm) thick

50

6674714

DISC outer brake

51

6674713

DISC inner brake

52

6677828

SEAL green W/ metal washer

53

6674708

WASHER

54

6674703

BOLT Was 6685440 - A

55

6674734

BUSHING

56

6681638

PISTON brake

57

6674728

SEAL Was 6691237 - A

58

6678780

WASHER

59

6674720

GASKET, MOTOR HYD

60

6674716

COVER

61

6685456

O-RING

62

6674707

PLUG

63

3GM820

SCREW

64

HOUSING ASSY NLA - front - Ref. 2-10 - Order 6689067 housing assy & 7107787 sprocket - Was 6685431 - A

64

7024981

OIL, SYNTHETIC DRIVE MOTOR 4 236 ml (8 oz) - Was 6682546 - A

65

6689124

ROTATING GROUP Ref. 14-17 & 19 - Was 6685430 - A

66

6689125

HOUSING ASSY rear - Ref. 20-45 - Was 6685432 - A

67

6681637

BRAKE, HYD MOTOR Ref. 46-63

68

6678778

KIT, SEAL Ref. 4, 7, 11, 22, 23 (2), 24, 26, 40, 52, 57, 59 & 61

69

6688377

GASKET Was 6688717 - A

70

6688716

COVER Speed Sensor

71

6688718

BOLT

72

90KV5

PLUG W/Ref. 73

73

95K6

O'RING
