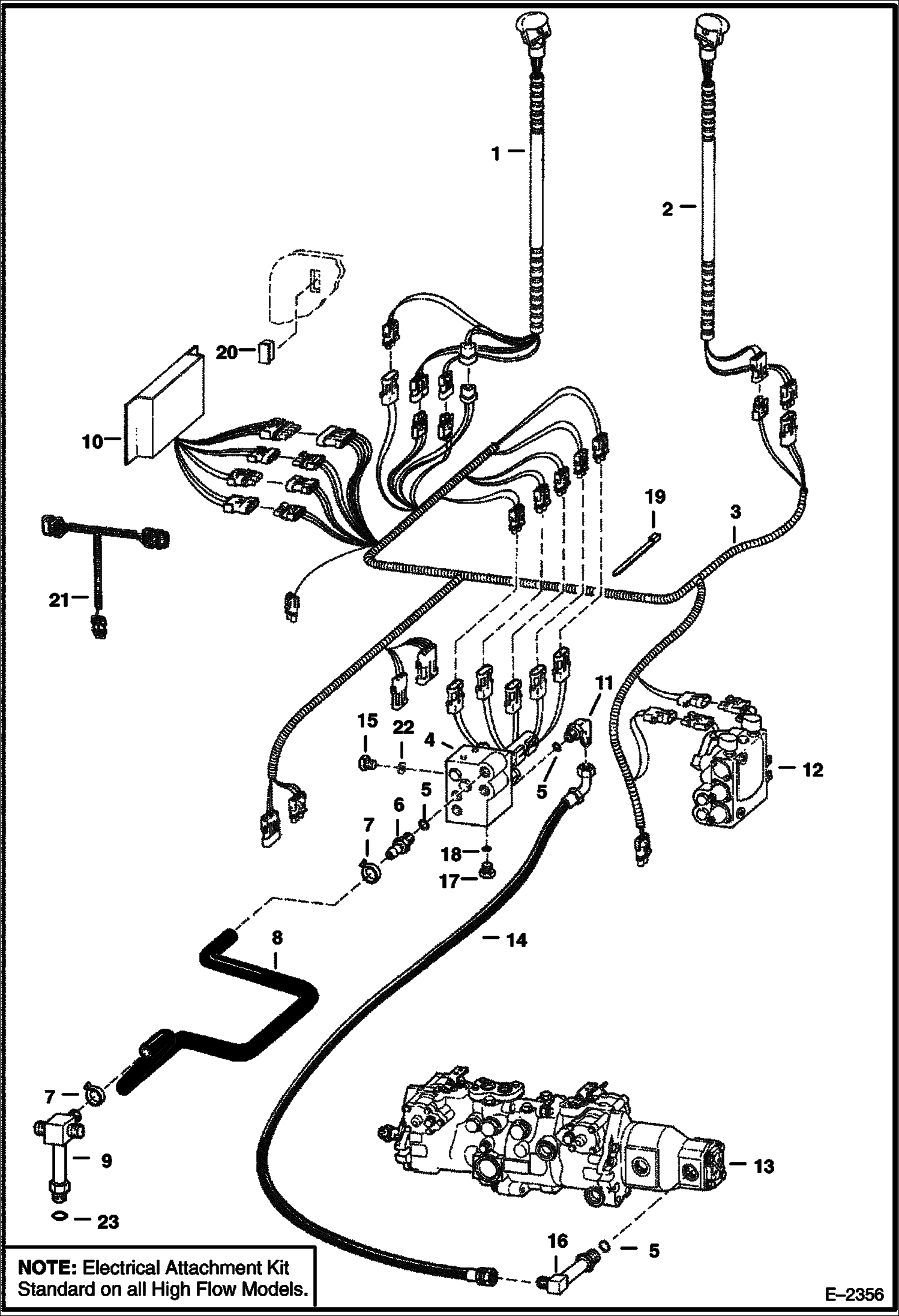

Запчасти Bobcat T-Series HIGH HORSEPOWER HYDRAULICS (S/N 5189 16427, 5175 15146 & Below) HIGH FLOW HYDRAULICS

1

6706568

KIT LH Multi-Switch Handle

2

6706735

KIT RH Multi-Switch Handle

3

6712524

HARNESS

4

VALVE See Illustration HIGH HORSEPOWER HYDRAULICS/ TS1434R

5

79K10

O RING 10 flat boss face

6

1316263

ADAPTER W/Ref. 5

7

5HM29

HOSECLAMP constant tension - Was 5HM00027B - A

8

6719103

HOSE

9

6718949

TEE W/Ref.

10

6673757

CONTROLLER PWM

11

6714134

ELBOW W/Ref. 5 - tapered boss face

12

VALVE See Illustration HYDRAULIC CONTROL VALVE/ MS1614 - Control

13

PUMP See Illustration HYDROSTATIC PUMP/ B18119

14

6715459

HOSE

15

17C612

BOLT 5

16

6719054

ELBOW W/Ref. 5 - tapered boss face

16

97K10

O-RING 10 flared end

17

90KV5

PLUG W/Ref. 18 - tapered boss face - Was 24KN00005B - B

18

99K6

O RING tapered boss face

19

HARNESS attachment control

20

6664035

CAP

20

6668813

SWITCH

21

6710435

HARNESS adapter bleed

22

25E17

WASHER 5

23

99K16

O-RING
