Запчасти Bobcat T-Series HIGH HORSEPOWER HYDRAULICS (S/N 5189 16427, 5175 15146 & Below) HIGH FLOW HYDRAULICS

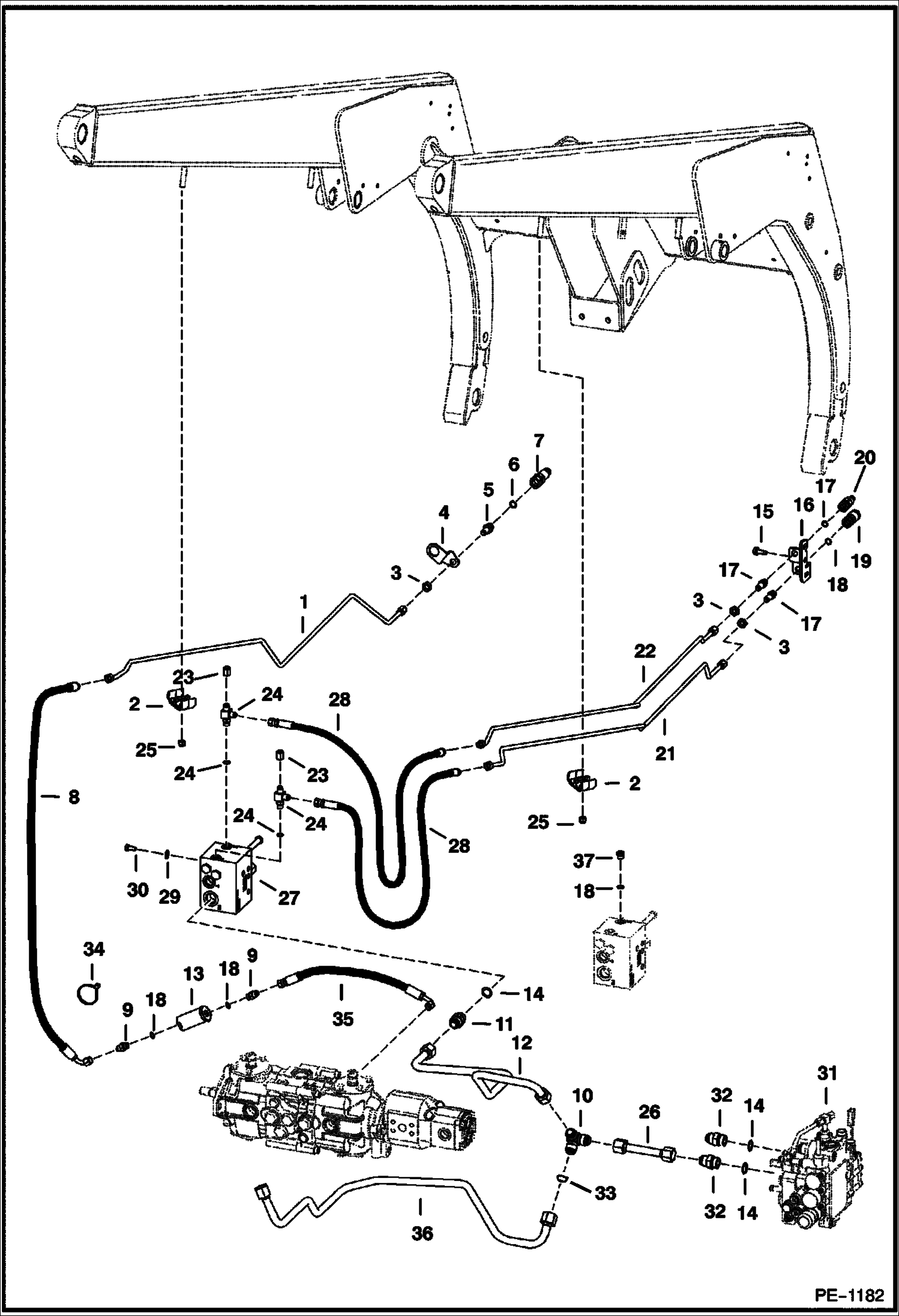

Схема запчастей Bobcat T-Series - HIGH HORSEPOWER HYDRAULICS (S/N 5189 16427, 5175 15146 & Below) HIGH FLOW HYDRAULICS

Артикул

Название

Примечание

Количество

1

6718253

TUBELINE case drain return

2

6703216

CLAMP

3

86F5

NUT

3

86F5

NUT

4

6711913

BRACKET Use W/Ref. 7 (6667806 coupler)

5

6726479

ADAPTER W/Ref. 6 - flat boss face - Was 6711628 - A

5

6726479

ADAPTER W/Ref. 6 - tapered boss face - Was 6711628 - A

5

97K6

O RING flared end

6

79K8

O RING 10 flat boss face

6

99K8

O-RING tapered boss face

7

6667806

COUPLER male - F.F.

7

6669659

O-RING flat boss face

8

6719531

HOSE 96'' (2,438,4 mm) long

8

6725424

HOSE

9

15KB0606

FITTING, HYD CONNECTOR W/Ref. 18

9

97K6

O RING flared end

10

6719053

TEE flat boss face - W/Ref. 33

10

97K10

O-RING 10 flared end

11

6655572

VALVE inline check - W/Ref. 14

12

6719069

TUBELINE

13

6661022

FILTER, OIL HYD IN-LINE See Illustration HYDROSTATIC OIL FILTER/ B13527

14

99K12

O RING tapered boss face

15

84G3716

SCREW 5

16

6711674

MOUNT

17

6716089

CONNECTOR tapered boss face - W/Ref. 18

17

97K6

O RING flared end

18

99K6

O RING tapered boss face

19

6667803

COUPLER, FF FEMALE

20

6667804

COUPLER, FF MALE

20

6669657

SEAL KIT

21

6719165

TUBELINE

22

6719166

TUBELINE

23

36K5

CAP

24

21KB0606

FTG HYD STRAIGHT TEE W/Ref. 18 - tapered boss face - Was 21KV00005B - A

24

97K6

O RING flared end

25

59D6

NUT

26

6719067

TUBELINE

27

6669203

VALVE See Illustration HIGH HORSEPOWER HYDRAULICS/ TS1434R - select

28

6719266

HOSE

29

25E17

WASHER 5

30

17C612

BOLT 5

31

VALVE See Illustration HYDRAULIC CONTROL VALVE/ MS1614

32

15KB1212

FITTING, HYD CONNECTOR W/Ref. 14 - tapered boss face - Was 15KN00008B - A

32

97K12

O'RING flared end

32

6812646

ADAPTER 1.0625-12 UN-2A threads

33

79K10

O RING 10

34

6624289

STRAP, TIE

34

6624289

STRAP, TIE

35

6702079

HOSE 20'' (508 mm) long

36

6719068

TUBELINE

37

90KV5

PLUG W/Ref. 18

Выбрано товаров: 51
