Запчасти Bobcat T-Series HYDRAULIC CONTROL VALVE (Advanced Hand Control System) HYDRAULIC SYSTEM

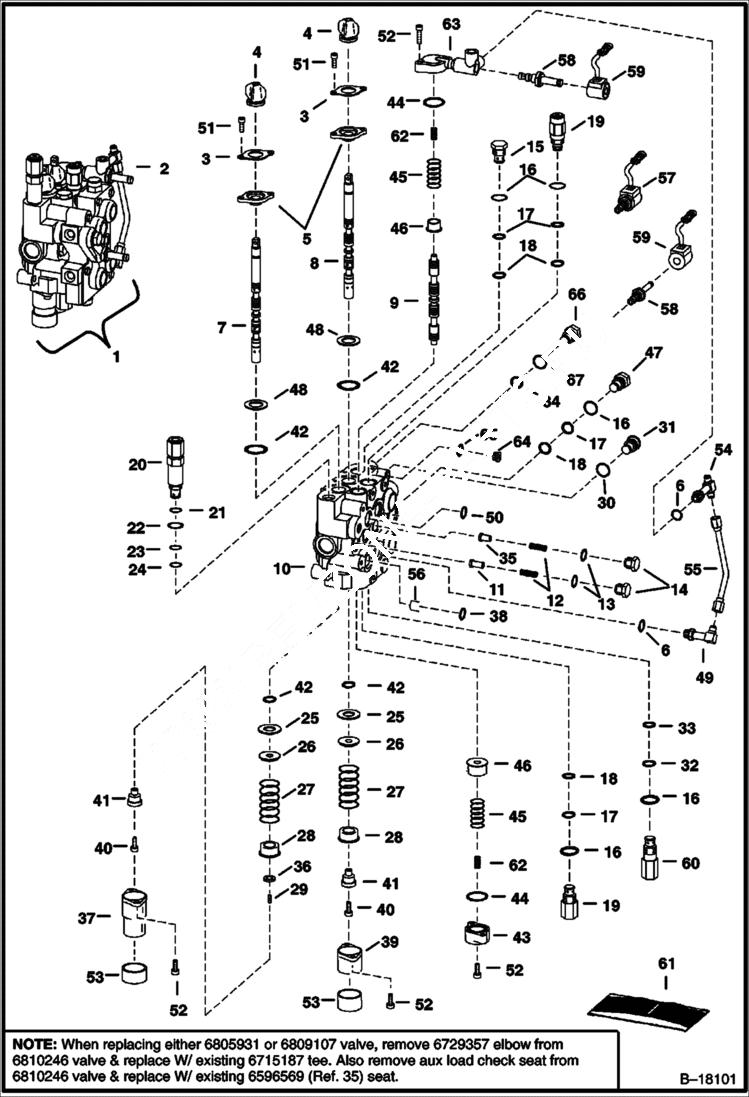

Схема запчастей Bobcat T-Series - HYDRAULIC CONTROL VALVE (Advanced Hand Control System) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

VALVE See BTI368 - NLA - valve is minus all fittings, relief valves, anti-cavitation valves, solenoid coils & solenoid spools - remove & use existing parts from old valve or order new parts as needed

1

VALVE See BTI368 - NLA - valve is minus all fittings, relief valves, anti-cavitation valves, solenoid coils & solenoid spools - remove & use existing parts from old valve or order new parts as needed

2

6628571

VALVE ASSY See Illustration BICS CONTROL VALVE/ TS1365 - AHC

3

6589564

RETAINER

4

6587763

BOOT

5

6589565

BUSHING

6

99K6

O RING tapered boss face

7

SPOOL NLA - lift - # 1 or Red - Order 7108251 - Was 6677660 - A

7

SPOOL NLA - lift - # 2 or Green - Order 7108251 - Was 6677661 - A

7

7108251

SPOOL, LIFT Was 7101151 - A

8

SPOOL NLA - tilt - # 1 or Red - Order 7108242 - Was 6677662 - A

8

SPOOL NLA - tilt - # 2 or Green - Order 7108242 - Was 6677663 - A

8

7108242

SPOOL, TILT

9

6588074

SPOOL auxiliary

10

BODY NSS

11

6592115

SEAT load check - W/ 6809107 valve

11

6592115

SEAT load check - W/ 6810246 valve

12

6592117

SPRING, LOAD CHECK

13

79K8

O RING 10

14

6592116

NUT load check - W/Ref. 13

15

6667549

VALVE anti-cavity check - W/Ref. 16-18

16

79K10

O RING 10

17

80K14

BACK-UP WASHER Was 73K000014B - B

18

58K014

O-RING 10 back-up washer required

18

6677106

O-RING back-up washer not required

19

6678574

RELIEF VALVE port relief - W/Ref. 16-18 - Was 6673184 - A

20

VALVE NLA - Main relief - W/Ref. 21-24 - Pressure preset at factory - Was 6676198 - A

20

7219324

VALVE, RELIEF W/ O-rings - pressure to be set in field - Was 6686360 - A

21

58K017

O-RING 10

22

6665569

WASHER back-up

23

25K20016

O RING 10

24

6665570

RING glide

25

6595663

BUSHING

26

7211397

WASHER, SPRING Was 6587523 - A

27

6587580

SPRING

28

6592100

COLLAR

29

6801167

PLUG plastic - 0.69'' long

30

95K12

O-RING

31

90K8

PLUG W/Ref. 30 - socket head - Was 90KV00008B - A

32

O-RING NSS- Order Ref. 60 - kit

33

O-RING NSS - Order Ref. 60 - kit

34

25K20012

O RING 10 Was 58K000012B - B

35

6596569

SEAT auxiliary load check - used on 6809107 valve

36

54K20002

O'RING 10

37

6803092

BONNET .625 flange

38

55K212

O RING 10

39

7101345

BONNET, DETENT HYD VALVE Was 6587633 - A

40

30G416

BOLT

41

6592109

ADAPTER

42

6683274

SEAL, SPOOL 10 spool - Was 6665846 - A

43

6588781

END CAP .87'' thick

44

58K124

O RING 10

45

6596332

SPRING

46

7108780

SLEEVE Was 6595951 - A

47

6592720

PLUG W/Ref. 16-18

48

1K127

O-RING 10 Was 93K127 - A

49

6727931

TEE W/Ref. 6

49

97K6

O RING flared end

50

55K204

O RING 10

51

29G412

BOLT

52

29G416

BOLT 1'' long

53

6662848

CAP

54

6805696

TEE W/Ref. 6

54

97K6

O RING flared end

55

6806496

TUBELINE

56

79K7

O RING 10

57

SOLENOID NLA - Order Ref. 58 & 59 - Was 6677201 - A

58

6676249

STEM, VALVE SOLENOID Was 6666616 - B

58

6679961

NUT

58

6586459

SEAL KIT

59

6717706

COIL, 10 VOLT W/ nut - pwm - 10 volt

59

6676566

NUT

60

6678552

VALVE port relief & anti-cav. - W/Ref. 16, 32 & 33 - 3500 PSI - use in tilt cylinder base end port - Was 6671632 - A

60

6673904

SEAL KIT W/Ref. 16, 32 & 33

61

6816250

KIT, SEAL one spool - Ref. 4, 42 & 51 - Was 6803605

61

6809448

SEAL KIT complete - Ref. 4, 13, 16-18, 21-24, 42, 44, 50 & 63

61

6661328

SEAL KIT main relief - Ref. 21-24

61

6809425

SEAL KIT Ref. 13 & 16-18

61

6586459

SEAL KIT W/Ref. 16, 32, 33

62

6595131

SPRING .72'' OD

63

6805651

BLOCK aux

64

6812171

PLUG W/Ref. 55 - Was 90KV00005B - B

65

95K6

O'RING

66

6806561

PLUG W/Ref. 34 & 56
