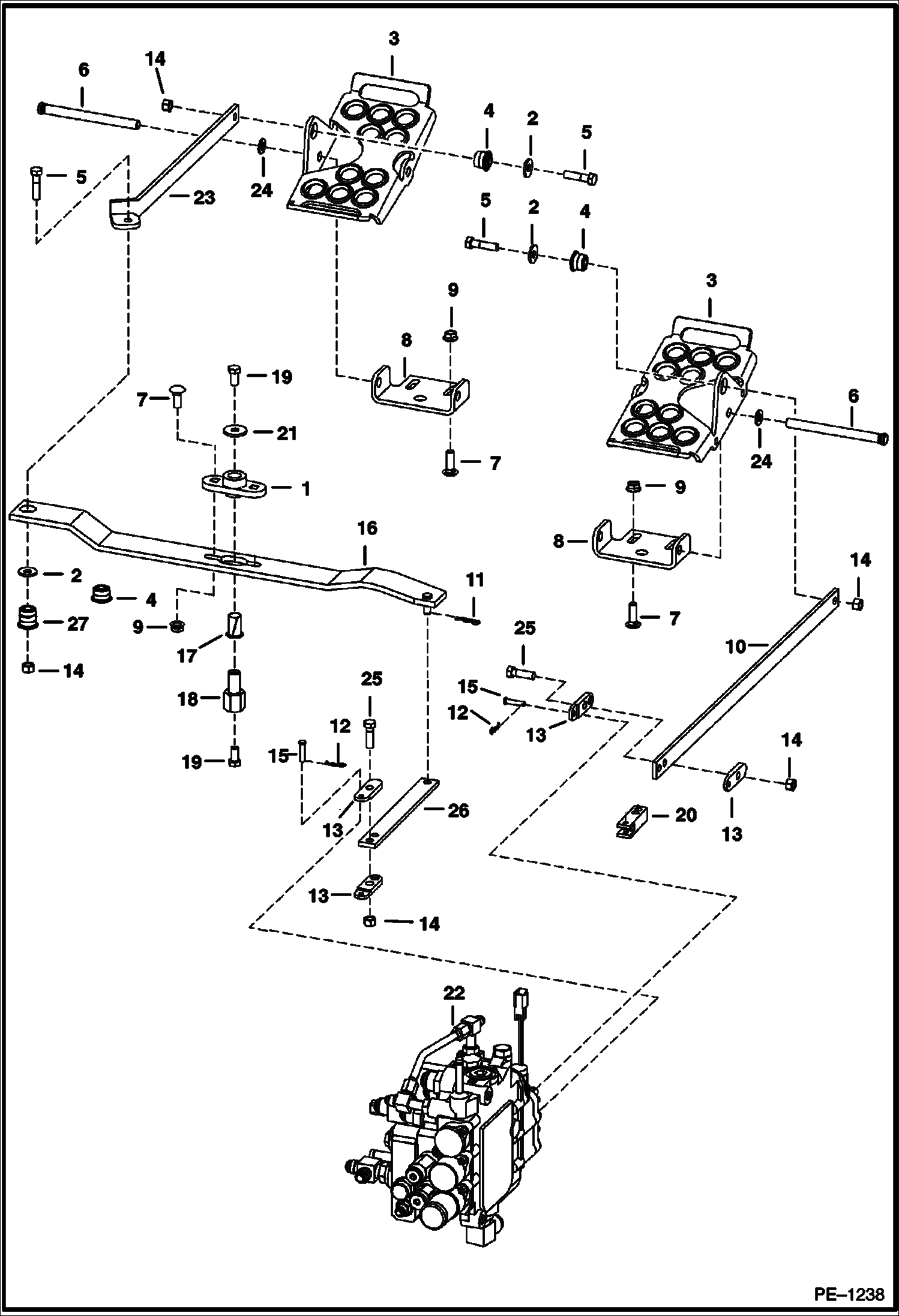

Запчасти Bobcat T-Series CONTROL PEDALS HYDRAULIC SYSTEM

1

6708043

BUSHING

2

6563914

WASHER

3

7115219

PEDAL Was 6726680 - A

4

6665701

BUSHING, PRESS FIT

5

17C624

BOLT 5

6

6564657

PIN

7

37C620

BOLT Was 7C000620B - B

8

6726679

MOUNT Was 6564658 - A

9

57D6

NUT 5

10

6717823

BAR Was 6710329 - B,D

11

1306637

CLIP

12

6513495

COTTER PIN

13

6708009

LINK

14

95D6

NUT

15

PIN NLA - Was 6564654 - A

16

LEVER NLA - W/ .875'' hole - Order 6719397, also Order Ref. 27 - Was 6719397 - A

16

6719397

LEVER W/ 1.1875'' hole

17

6512026

BUSHING

18

6718283

RETAINING NUT Was 6706104 - B,D

19

17C612

BOLT 5

20

6706105

YOKE

21

619021

WASHER, 5

22

VALVE See Illustration HYDRAULIC CONTROL VALVE/ MS1614

23

6719398

BAR Was 6710328 - B,D

24

25E21

WASHER 5 Use if serrations on pins are too long

25

17C620

BOLT

26

6719381

LINK

27

6685060

BUSHING, TORSION torsion - 26,8 mm (1.055'') OD - Was 6678067 - A
