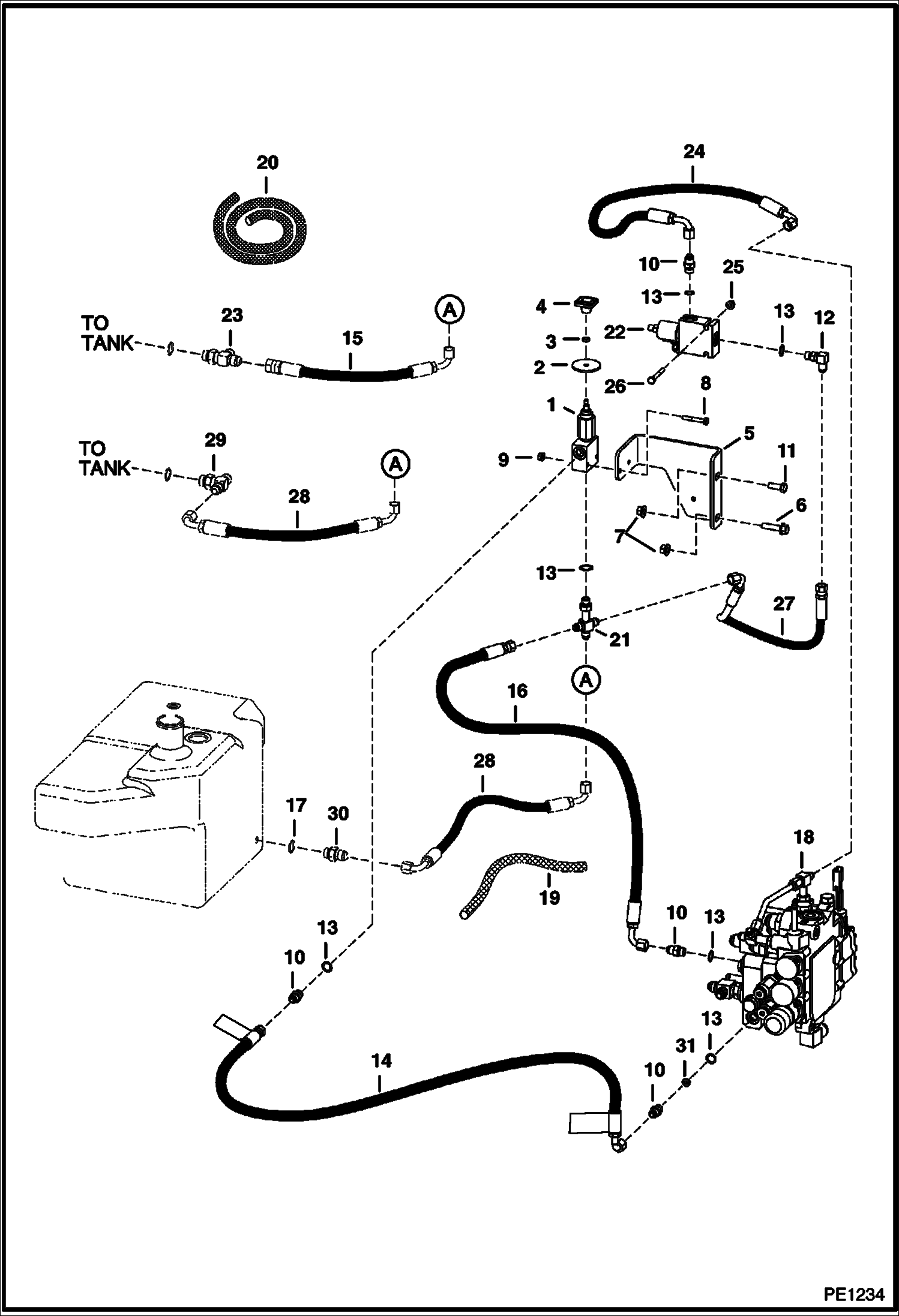

Запчасти Bobcat T-Series MANUAL LIFT RELEASE SYSTEM & BRAKE (S/N 518911354, 516811037, 517511033 & Above) HYDRAULIC SYSTEM

1

7230495

VALVE, LIFT MANUAL See Illustration MANUAL LIFT RELEASE VALVE/ PE1547 - manual lift release - Was 6667844 - A

2

6707101

SEAL neoprene

3

7D4

NUT for 6667874

4

6737524

KNOB red square - Was 6668913 - A

5

6718881

BRACKET

6

35C624

BOLT

7

83D6

NUT 5

8

17C428

BOLT

9

83D4

NUT 10

10

ADAPTOR NLA - W/Ref. 13 - tapered boss face - Was 15KV00005B - A

10

97K6

O RING flared end

10

15KB0606

FITTING, HYD CONNECTOR W/Ref. 13 - flat boss face

10

6669676

CHECK VALVE W/Ref. 13 - In-line

11

35C616

BOLT 5

12

FITTING NLA - tapered boss face - W/Ref. 13 - Was 17KV00005B - A

12

97K6

O RING flared end

12

17KB0606

FITTING W/Ref. 13 - flat boss face

13

99K6

O RING tapered boss face

13

79K6

O RING 10 flat boss face

14

6714856

HOSE 21'' (533mm) long

14

6729602

HOSE 21'' (533 mm) long - available only as an assembly W/two danger decals installed

14

6809511

DECAL, DANGER

15

6725430

HOSE

16

6706790

HOSE

17

99K8

O-RING

18

CONTROL VALVE See Illustration HYDRAULIC CONTROL VALVE/ MS1614

19

SHIELD NLA - 21'' (533 mm) long - Order Ref. 20

20

6650108

HOSE COVER bulk - 1.35'' (33,5mm) ID - Sold Per foot

21

6817553

CROSS W/Ref.13 - Flat boss face - Was 6805241 - A

21

6732558

FITTING

22

VALVE ASSY See Illustration BRAKE VALVE/ MS1144 - brake

23

21KB0808

FTG HYD STRAIGHT TEE W/Ref. 17 - flat boss face - Was 21KV00006B - A

23

97K8

O-RING flared end

24

6627313

HOSE Was 6719461 - A

25

83D4

NUT 10

26

17C432

BOLT

27

6716463

HOSE

28

6731897

HOSE

29

19KB0808

Fitting Hydraulic Branch Tee W/Ref. 13 - Was 19KN00006B - A

29

97K8

O-RING flared end

30

15KB0808

FITTING, HYD CONNECTOR W/Ref. 13 - Was 15KN00006B - A

31

6668791

ORIFICE
