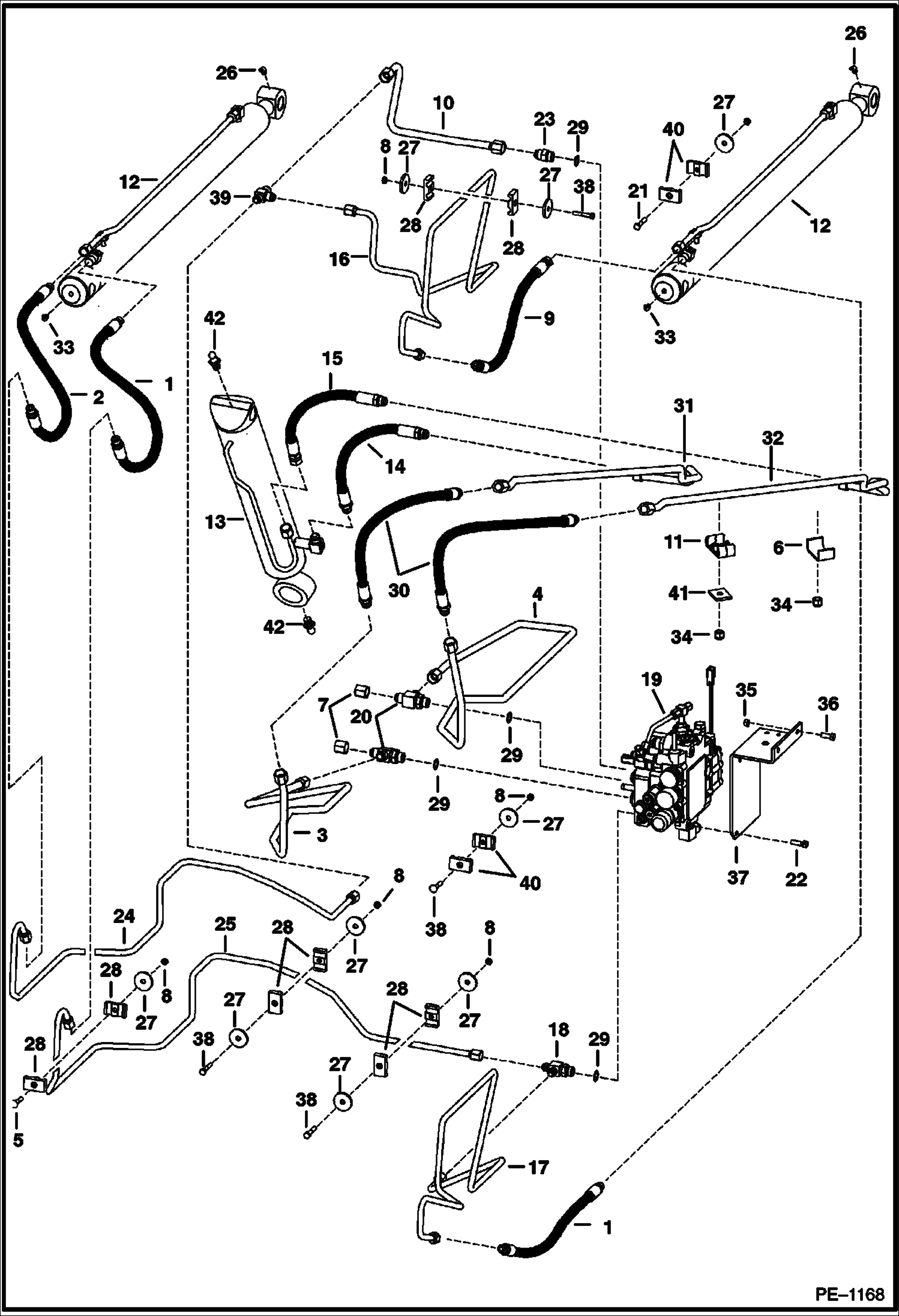

Запчасти Bobcat T-Series HYDRAULIC CIRCUITRY W/O Bucket Positioning Valve (S/N 518915181, 516815031, 517515005 & Below) HYDRAULIC SYSTEM

1

6669460

HOSE

2

6669461

HOSE

3

6719027

TUBELINE

4

6719354

TUBELINE

5

10C528

BOLT

6

6718754

CLAMP

7

36K7

FITTING

8

85D5

NUT 5

9

6727810

HOSE

10

6718878

TUBELINE

11

6717933

CLAMP

12

CYLINDER See Illustration LIFT CYLINDER/ TS1451 - lift

13

CYLINDER See Illustration TILT CYLINDER/ MS1988 - tilt

14

6578773

HOSE

15

6578774

HOSE

16

6718971

TUBE

17

6718167

TUBE

18

TEE NLA - tapered boss face - W/Ref. 29 - Was 6715187 - A

18

97K8

O-RING flared end

18

21KB0810

FITTING, HYD TEE W/Ref. 29 - flat boss face

19

VALVE See Illustration HYDRAULIC CONTROL VALVE/ MS1614 - Control

20

21KB1010

FITTING, HYD TEE W/Ref. 29 - Was 21KN00007B - A

20

97K10

O-RING 10 flared end

21

84G3728

BOLT

22

17C620

BOLT Was 6717378 - B

23

15KB1010

FITTING, HYD CONNECTOR W/Ref. 29 - tapered boss face - Was 15KV00007B - A

23

97K10

O-RING 10 flared end

24

6718946

TUBE

25

6718947

TUBE

26

12H15

FITTING, GREASE 5

27

872229

WASHER

28

6701892

CLAMP

29

99K10

O'RING tapered boss face

29

79K10

O RING 10 flat boss face

30

6669674

HOSE

31

6718161

TUBELINE

32

6718162

TUBELINE

33

11H15

GREASE FITTING

34

59D8

NUT 5

35

85D6

NUT, 5

36

17C616

BOLT 5

37

6727750

BRACKET Was 6710301 - A

38

17C528

BOLT

39

6718911

TEE Was 6716061 - B,D

39

97K8

O-RING flared end

39

97K10

O-RING 10 flared end

40

6701893

CLAMP

41

6553709

WASHER rectangular

42

10H25

FITTING, GREASE 5
