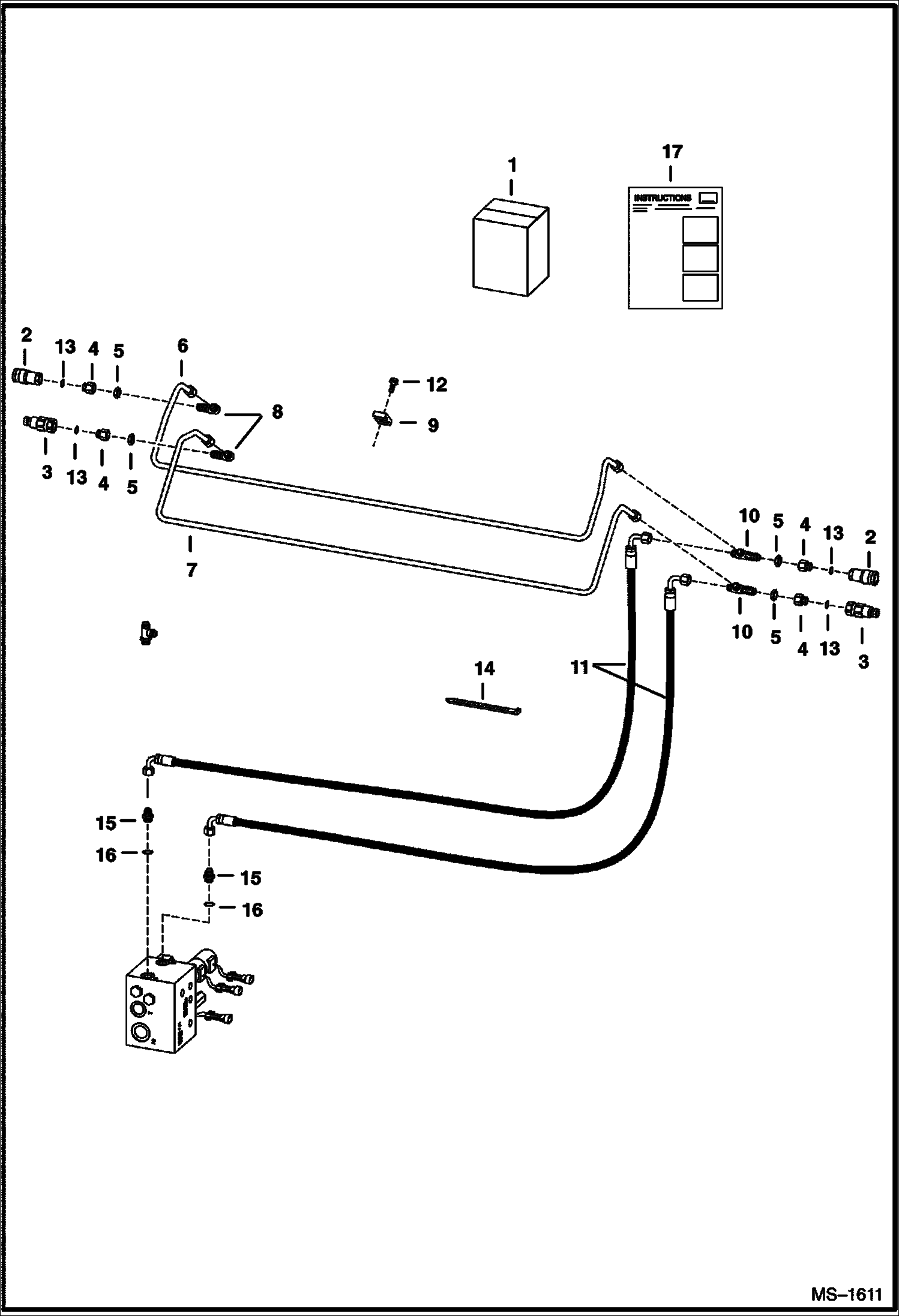

Запчасти Bobcat T-Series REAR AUXILIARY HYDRAULICS KIT (High Horsepower) (S/N 518916260, 517515146 & Below) ACCESSORIES & OPTIONS

1

6719627

KIT Ref. 2-12, 14 and 17 - W/O integrated high flow pump - order 6719627 from SALES - Was NLA - D

2

6667803

COUPLER, FF FEMALE

3

6667804

COUPLER, FF MALE

4

6706633

ADAPTER W/Ref. 13

5

86F5

NUT

6

6719296

TUBELINE

7

6719297

TUBELINE

8

88F5

ELBOW Was 88FN00005B - A

8

97K6

O RING flared end

9

6500989

CLAMP

10

TEE NLA - Was 6719298 - A

10

97K6

O RING flared end

10

91K5

TEE

11

6719847

HOSE

12

84G3116

SCREW

13

79K6

O RING 10

14

6624289

STRAP, TIE

15

15KB0606

FITTING, HYD CONNECTOR W/Ref. 16 - not it kit

16

99K6

O RING

17

6900941

INSTRUCTIONS
