Запчасти Bobcat T-Series REAR AUXILIARY HYDRAULICS KIT (S/N 518916260, 516815100 & Below, 517515146 & Below) ACCESSORIES & OPTIONS

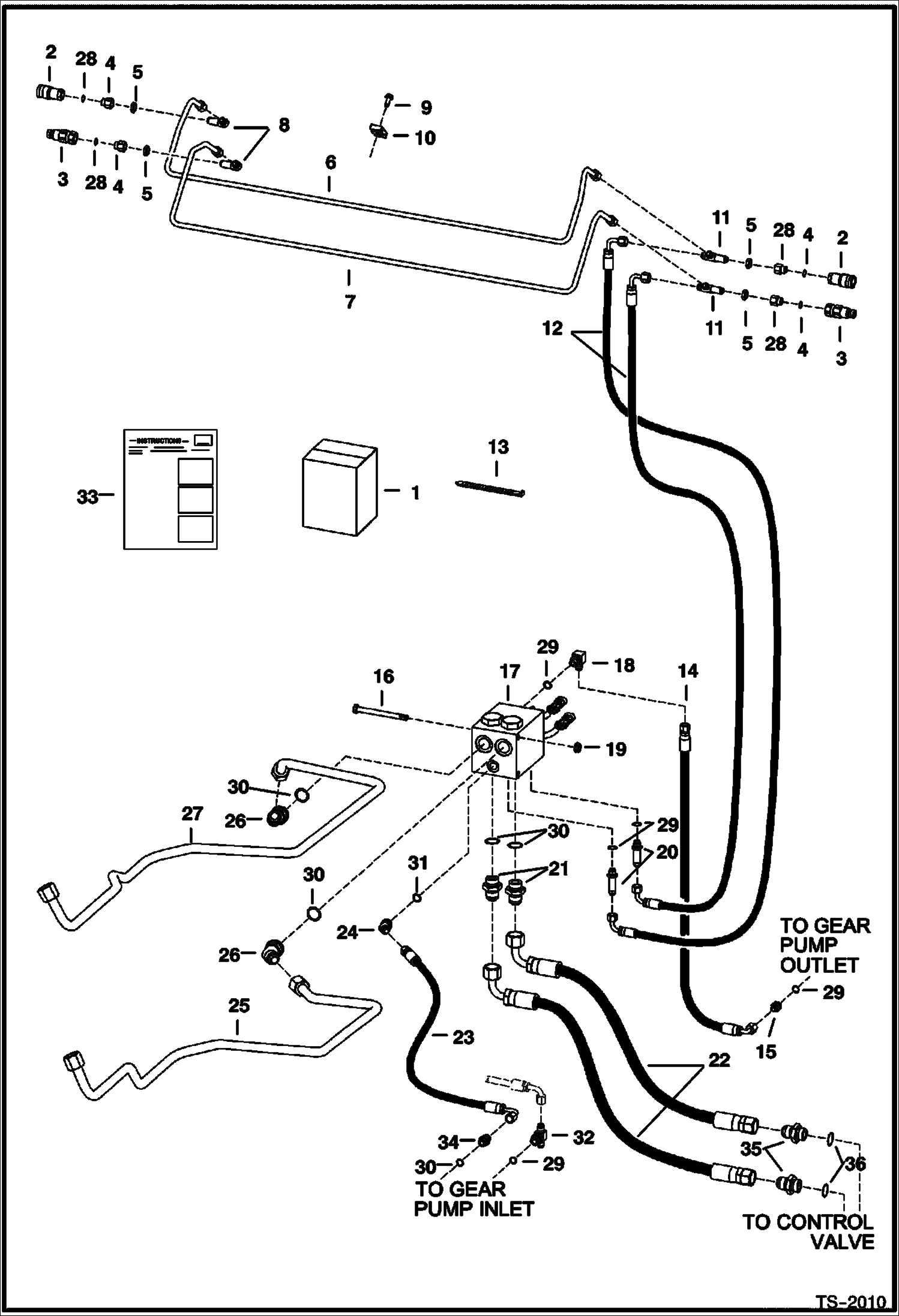

Схема запчастей Bobcat T-Series - REAR AUXILIARY HYDRAULICS KIT (S/N 518916260, 516815100 & Below, 517515146 & Below) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

6719601

KIT Ref. 2-27 & 36 - high flow S/N 5189 16427 and Below - Was NLA - D

2

6667803

COUPLER, FF FEMALE

3

6667804

COUPLER, FF MALE

4

6706633

ADAPTER W/Ref. 28

5

86F5

NUT

6

6719296

TUBELINE

7

6719297

TUBELINE

8

88F5

ELBOW Was 88FN00005B - A

8

97K6

O RING flared end

9

84G3716

SCREW 5

10

6500989

CLAMP

11

TEE NLA - W/Flared end o-ring - Was 6719298 - D

11

97K6

O RING flared end

11

91K5

TEE W/O Flared end o-ring

12

6719847

HOSE

13

6610510

TIE

14

6537283

HOSE SEE NOTE

15

15KB0606

FITTING, HYD CONNECTOR W/Ref. 29 - for machines W/ power bob-tach

15

97K6

O RING flared end

16

17C680

BOLT

17

DIVERTER VALVE See Illustration REAR AUXILIARY VALVE/ TS1362

18

17KB0606

FITTING W/Ref. 29 - Was 17KV00005B - A

18

15KB0606

FITTING, HYD CONNECTOR W/Ref. 29 - for machines W/ power bob-tach

18

97K6

O RING flared end

19

83D6

NUT 5

20

16KB0606

FTG HYD L CONNECTOR W/Ref. 29 - Was 16KN00005B - A

20

97K6

O RING flared end

21

15KB1212

FITTING, HYD CONNECTOR W/Ref. 30 - Was 15KN00008B - A

21

97K12

O'RING flared end

22

6725311

HOSE

23

6587291

HOSE 43'' (1092mm) long

23

6587293

HOSE 50.5'' (1283mm) long

24

18KB0404

FTG HYD ELBOW 45 45 degree - W/Ref. 31 - Was 18KN00003B - A

24

97K4

O'RING flared end

25

6719849

TUBELINE

26

18KB1212

FITTING, HYD ELBOW 45 degree - W/Ref. 30 - Was 18KN00008B - A

26

97K12

O'RING flared end

27

6719850

TUBELINE

28

79K6

O RING 10

29

99K6

O RING tapered boss face

29

79K6

O RING 10 flat boss face

30

99K12

O RING Tapered boss face

30

79K12

O RING 10 Flat boss face

31

99K4

O'RING

32

TEE NLA - for machines w/power bobtach - W/Ref. 29 - tapered boss face - Was 14KN00005B - A

32

97K6

O RING Flared end

32

14K5

TEE for power bobtach - W/Ref. 29 - flat bass face

33

6900935

INSTRUCTIONS

34

15KB0612

FITTING, HYD CONNECTOR

35

15KB0606

FITTING, HYD CONNECTOR

36

99K6

O RING

Выбрано товаров: 51
