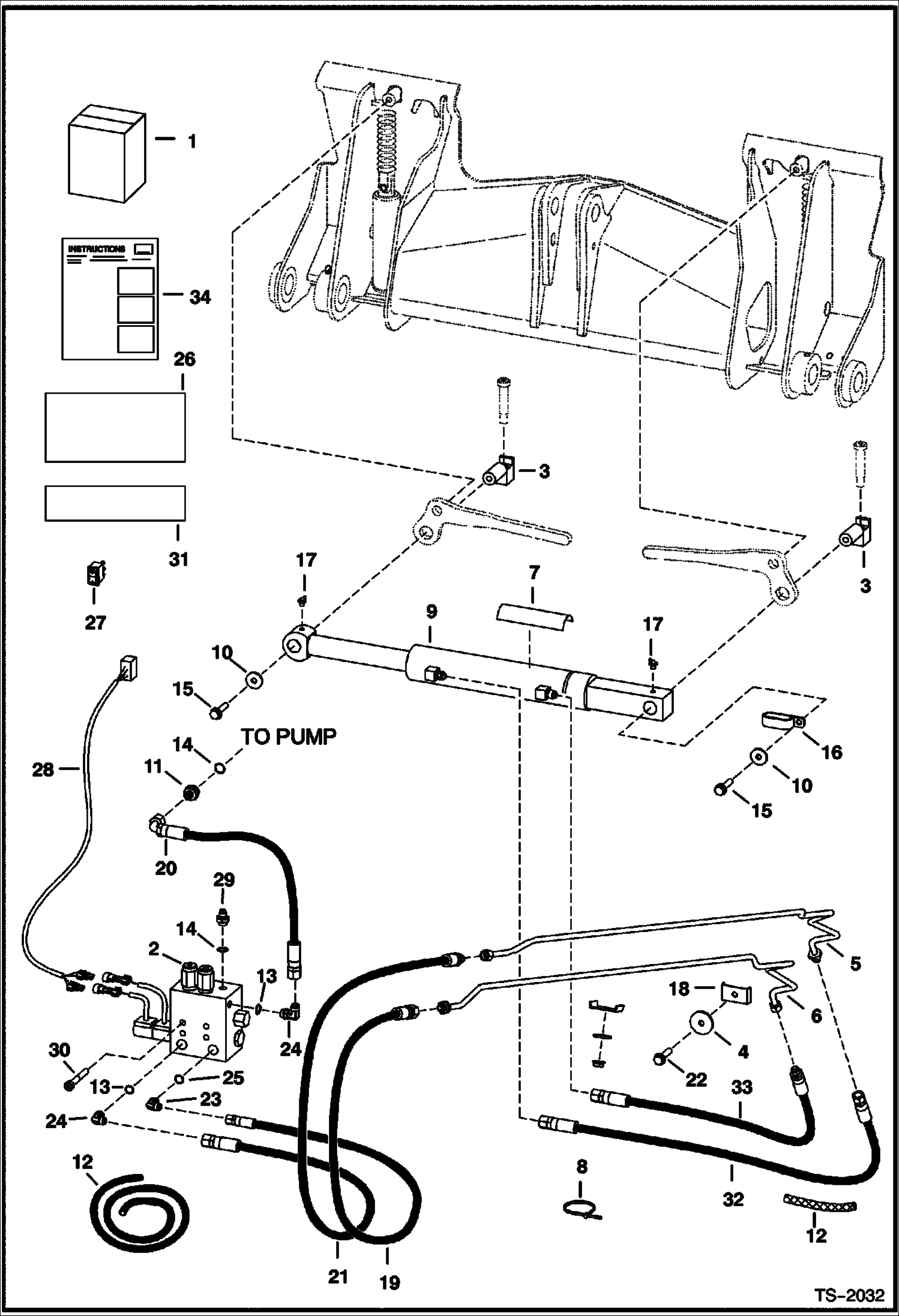

Запчасти Bobcat T-Series POWER BOB-TACH KIT (Aluminum Gear Pump) (S/N 518916260, 516815100, 517515146 & Below) ACCESSORIES & OPTIONS

1

6719841

KIT Ref. 2-34 - Domestic high flow S/N is 5189 16427 and Below

2

MANIFOLD See Illustration POWER BOB-TACH/ TS2051

3

6731119

PIVOT, WEDGE Not in kit - Was 6714576

4

872229

WASHER

5

6719164

TUBE

6

6719167

TUBE

7

6554100

TREAD 76,2 x 152,4 mm (3 x 6'')

8

6624289

STRAP, TIE

9

CYLINDER See Illustration POWER BOB-TACH/ PE1064A See Illustration POWER BOB-TACH/ PE1064

10

619021

WASHER, 5

11

ADAPTER NLA - W/Ref. 14 - Tapered boss face - Was 6715186 - A

11

97K6

O RING flared end

11

79K6

O RING 10 W/Ref. 14 - Flat boss face

12

6656155

HOSE COVER bulk - sold per foot - 1.25'' (31,8mm) ID

13

99K6

O RING

14

99K12

O RING tapered boss face

14

79K12

O RING 10 Flat boss face

15

35C616

BOLT 5

16

31H42

CLIP

17

11H15

GREASE FITTING 45 degree

17

10H35

FITTING, GREASE 10 straight

18

6502203

CLAMP

19

6726987

HOSE Was 6719629 - A

19

COVER NSS - Order Ref. 12

20

6719605

HOSE

21

6726986

HOSE Was 6719628 - A

21

COVER NSS - Order Ref. 12

22

84G3724

BOLT

23

17KB0404

FTG HYD ELBOW 90 W/Ref. 25 - Was 17KV00003B - A

23

97K4

O'RING flared end

24

17KB0606

FITTING W/Ref. 13 - Was 17KV00005B - A

24

97K6

O RING flared end

25

99K4

O'RING

26

6725907

DECAL, OPERATION power Bob-Tach - Was 6717842 - A

27

6674585

SWITCH horizontal

27

6676732

SWITCH vertical

28

6718652

HARNESS

29

15KB1212

FITTING, HYD CONNECTOR W/Ref. 14 - Was 15KV00008B - A

29

97K12

O'RING flared end

30

73G656

SCREW

31

6719888

DECAL power bob-tach

32

6725198

HOSE

32

COVER NSS - Order Ref. 12 - A

33

6725199

HOSE

33

COVER NSS - Order Ref. 12 - A

34

6900951

INSTRUCTIONS
