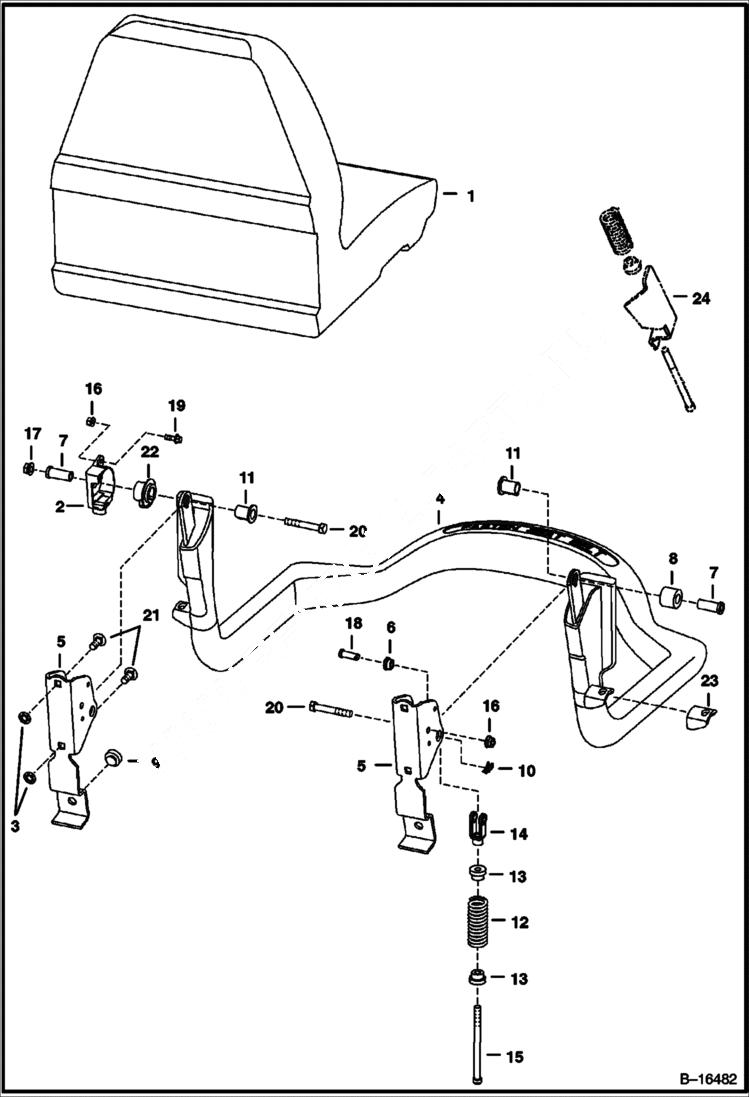

Запчасти Bobcat T-Series SEAT & SEAT BAR MAIN FRAME

1

SEAT See Illustration SEAT/ B25136

2

6691714

SENSOR, SEATBAR BICS Was 6680429 - A

3

6674894

NUT

4

6715860

SEAT BAR

5

6715863

BRACKET

6

6715864

BUSHING

7

6715865

BUSHING

8

6715866

BUSHING

9

6519178

BUMPER

10

6631418

RING, RETAINING

11

6680441

BUSHING keyed - Was 6664882 - A

12

6701535

SPRING

13

6710659

BUSHING

14

6713589

CLEVIS

15

6713887

BOLT

16

83D4

NUT 10

17

53D6

NUT

18

4F6106

PIN

19

35C412

BOLT

20

17C640

BOLT 5

21

10C616

BOLT 10

22

6680443

BUSHING, MAGNET Was 6674405 - A

23

MOUNT NLA - Order Ref. 4

24

MOUNT NLA - Order Ref. 4
