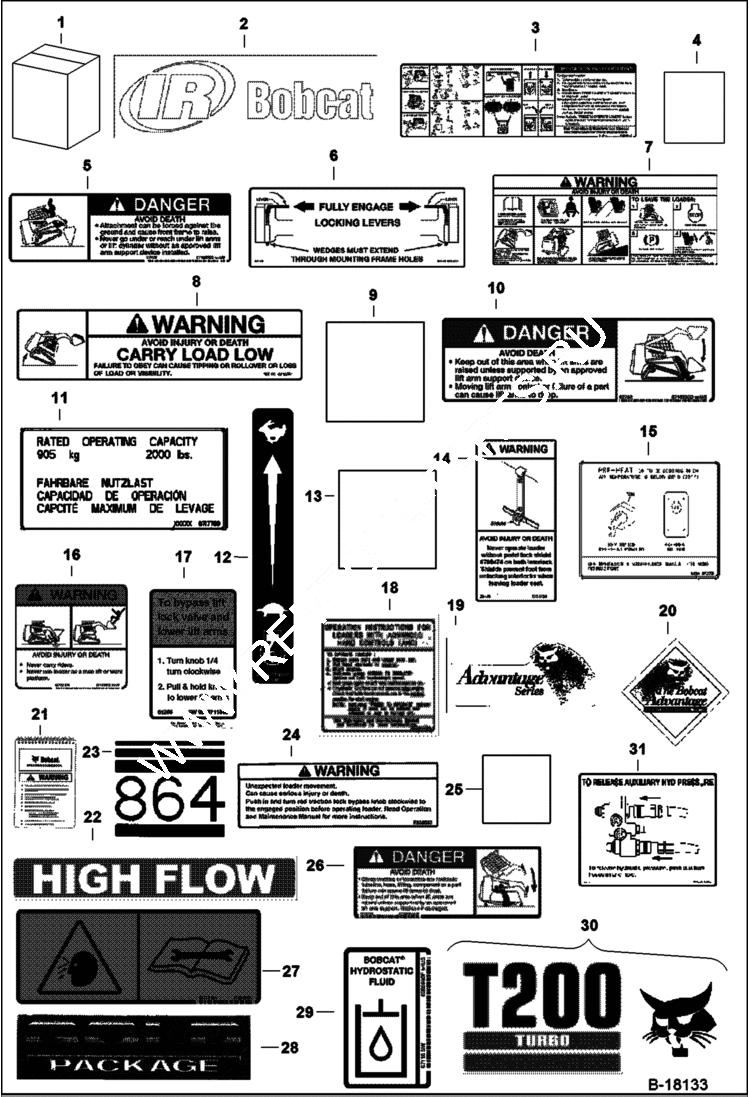

Запчасти Bobcat T-Series DECALS ACCESSORIES & OPTIONS

1

6901378

KIT See Illustration DECALS/ B18134 - decal - Ref. 2-16 on this page and 2-18 on Ill B18133

1

6725187AR

KIT translation - SEE NOTE

1

6725187BR

KIT translation - SEE NOTE

1

6725034AR

KIT decal - SEE NOTE

1

6725034BR

KIT decal - SEE NOTE

1

6725034JP

KIT decal - SEE NOTE

2

DECAL NLA - Ingersoll Rand - Was 6727310 - A

3

6727926

DECAL, OPERATION hand & foot controls - not in kit - Was 6728325 - B

4

6554100

TREAD 76,2 x 152,4 mm (3 x 6'')

5

6718392

DECAL, DANGER

6

6561383

DECAL, OPERATION 5 Bob-Tach locking levers

7

6728540

DECAL, WARNING Was 6718390 - A

8

6718391

DECAL, WARNING carry load low

9

6577947

SAFETY TREAD 190,5 x 381 mm (7.5 x 15'')

10

6718393

DECAL, DANGER

11

6717799

DECAL capacity - 1900 lbs.

12

6735140

DECAL, THROTTLE Was 6557565 - A

13

6577949

SAFETY TREAD 6.8 in. x 8.75 in (173 mm x 222 mm)

14

6705720

DECAL lock shield

15

6713715

DECAL pre heat

16

6718396

DECAL, WARNING no riders

17

6711840

DECAL lift lock

18

DECAL NLA - seat & seat bar operating - Order Ref. 3 - Was 6718703 - A

18

6717639

DECAL seat & seat bar operating - AHC - W/O seat sensor

19

6718271

DECAL advantage series - LH - not in Kit

20

6718275

DECAL Bobcat advantage

21

6902808

HANDBOOK, OPERATOR'S W/WIRE ROPE not in kit - Was 6728607 - A

21

6558309

WIRE ROPE bulk - sold per foot - Also Order (2) of 6558310 sleeve

21

6558310

SLEEVE wire rope

21

84G3112

BOLT 5

22

6727913

DECAL high flow - Not in kit

23

6717233

DECAL model no. 864

24

6803932

DECAL warning - lift lock valve

25

6710746

SAFETY TREAD 1.5 in. x 15 in. (38 mm x 381 mm)

26

6717343

DECAL, DANGER Was 6718399 - A

27

7168039

DECAL, WARNING See Illustration DECALS/ NA6216 - high pressure grease - Was 6804114 - A

28

6735862

DECAL Gold package

29

6565990

DECAL, OIL HYD 5 hydrostatic fluid fill

30

DECAL NLA - model no. T200 - LH - Order 6729474 decal, also Order 6731508 Bobcat head decal - Was 6729624 - A

31

6731757

DECAL, OPERATION to release auxiliary hyd. pressure - not in kit
