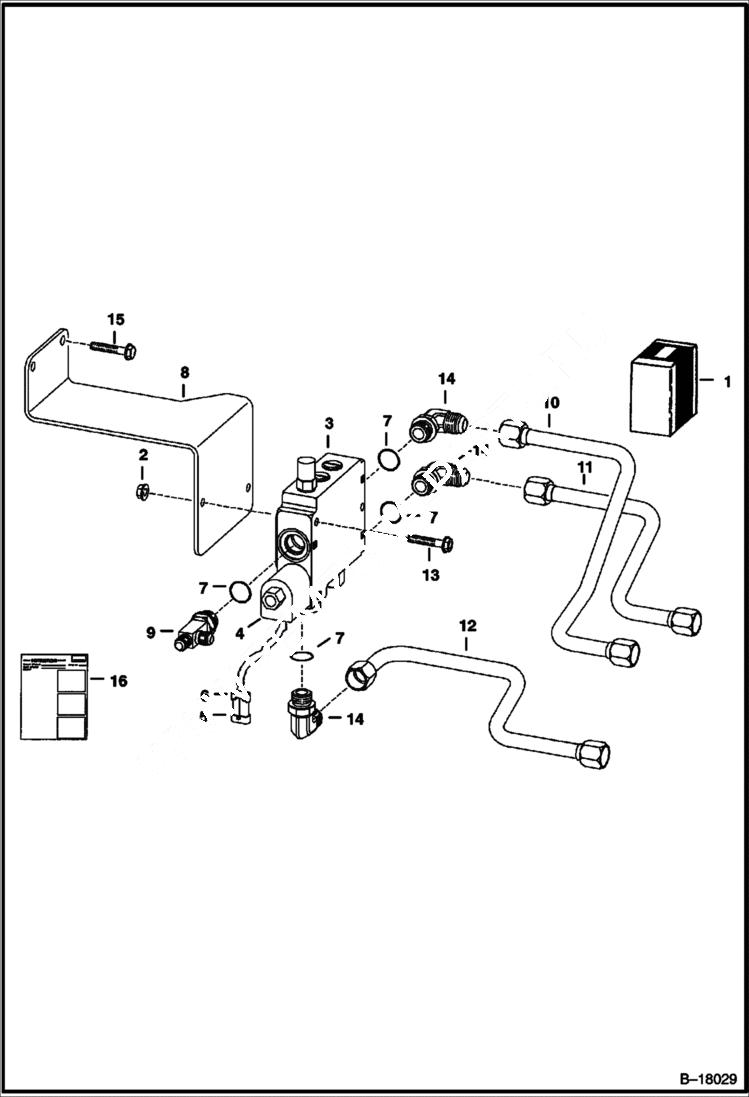

Запчасти Bobcat T-Series BUCKET POSITIONING KIT (S/N 518915182, 516815032, 517515006 & Above) ACCESSORIES & OPTIONS

1

6730045

KIT Ref. 2-4 & 9-15

2

83D5

NUT 5

3

VALVE - NLA - Order 6673959 valve - Was 6666341 - A

4

6672863

VALVE, SOLENOID W/Ref. 5 & 6

4

6671527

NUT

4

6670634

SEAL KIT

5

6641179

CONNECTOR 2-pin

6

6641180

LOCK Use W/ 2-pin connector

7

99K10

O'RING Tapered boss face

7

79K10

O RING 10 Flat boss face

8

6718726

MOUNT BPV - not in kit - mounting face 5.28'' (134.11 mm)

8

6731906

MOUNT BPV - not in kit - mounting face 6.14'' (155.9 mm)

9

TEE NLA - W/Ref. 7 - Tapered boss face - Was 6715187 - A

9

97K10

O-RING 10 flared end

9

21KB0810

FITTING, HYD TEE W/Ref. 7 - Flat boss face

10

6729794

TUBELINE

11

6718832

TUBELINE

12

6718877

TUBELINE

13

17C540

BOLT

14

17KB1010

FITTING, HYD ELBOW 90 degree - Was 17KV00007B - A

14

97K10

O-RING 10 flared end

15

84G3716

SCREW 5 3/8 x 1''

16

6900880

INSTRUCTIONS
