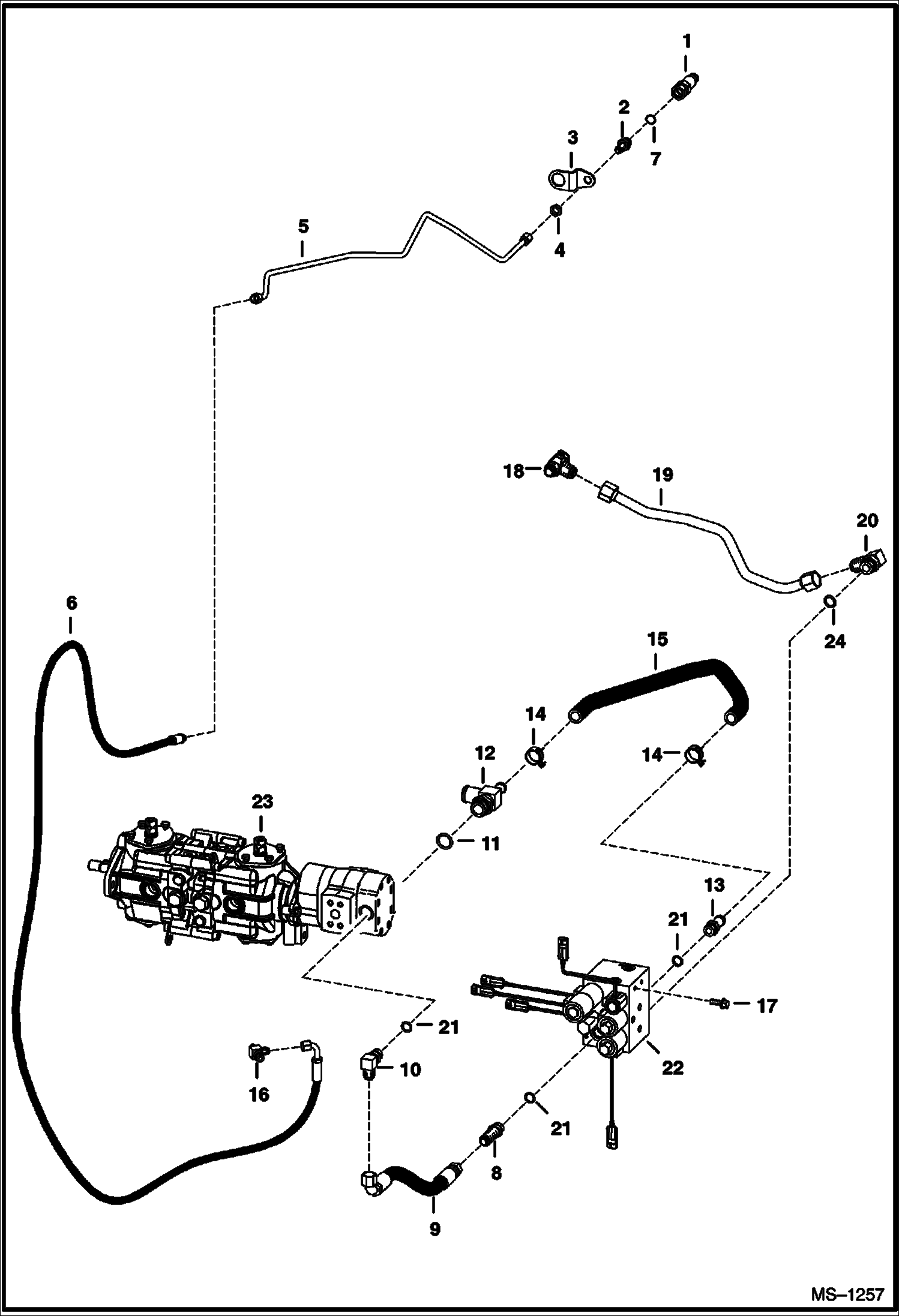

Запчасти Bobcat T-Series HIGH FLOW HYDRAULICS (S/N 5193 11762-12091, 5194 11112-11186) HIGH FLOW HYDRAULICS

1

6667806

COUPLER male

1

6669659

O-RING

2

6726479

ADAPTER W/Ref. 25 - tapered boss face - Was 6711628 - A

2

97K6

O RING flared end

3

6711913

BRACKET

4

86F5

NUT

5

6718136

TUBE

6

7114121

HOSE Was 6734664 - A

7

99K8

O-RING tapered boss face

8

ADAPTER NLA - W/Ref. 21 - tapered boss face - Was 16KN00007B - A

8

16KB1010

FITTING, HYD ELBOW W/Ref. 21 - flat boss face

9

6729094

HOSE

10

ELBOW NLA - W/Ref. 21 - tapered boss face - Was 17KV00007B - A

10

97K10

O-RING 10 flared end

10

17KB1010

FITTING, HYD ELBOW W/Ref. 21 - flat boss face

11

79K16

O RING 10 flat boss face

11

99K16

O-RING tapered boss face

12

6714904

TEE W/Ref. 11 - check boss face to determine correct replacement O-ring

13

1316263

ADAPTER W/Ref. 21 - flat boss face

14

5HM29

HOSECLAMP constant tension - Was 5HM00027B - A

15

6726196

HOSE

16

TEE NLA - tapered boss face - Was 21KV00005B - A

16

97K6

O RING flared end

16

21KB0606

FTG HYD STRAIGHT TEE W/Ref. 21 - flat boss face

16

ELBOW See Illustration HYDROSTATIC CIRCUITRY/ PE1318R NLA - FOR STANDARD FLOW HYDRAULICS - SEE REF. 52 FLAT BOSS FACE - WAS 17KV00005B - A

16

17KB0606

FITTING See Illustration HYDROSTATIC CIRCUITRY/ PE1318R W/REF. 21 - FOR STANDARD FLOW HYD. - SEE REF. 52 FLAT BOSS FACE

17

35C616

BOLT 5

18

6718098

CONNECTOR

19

6726192

TUBE

20

6676944

VALVE 90 degree inline check - W/Ref. 24 - check boss face to determine correct replacement O-ring

21

99K10

O'RING tapered boss face

21

79K10

O RING 10 flat boss face

22

6669203

VALVE See Illustration HIGH FLOW HYDRAULICS/ TS1434R - select

23

PUMP See Illustration HYDROSTATIC PUMP/ B17103

24

99K12

O RING tapered boss face

24

79K12

O RING 10 flat boss face
