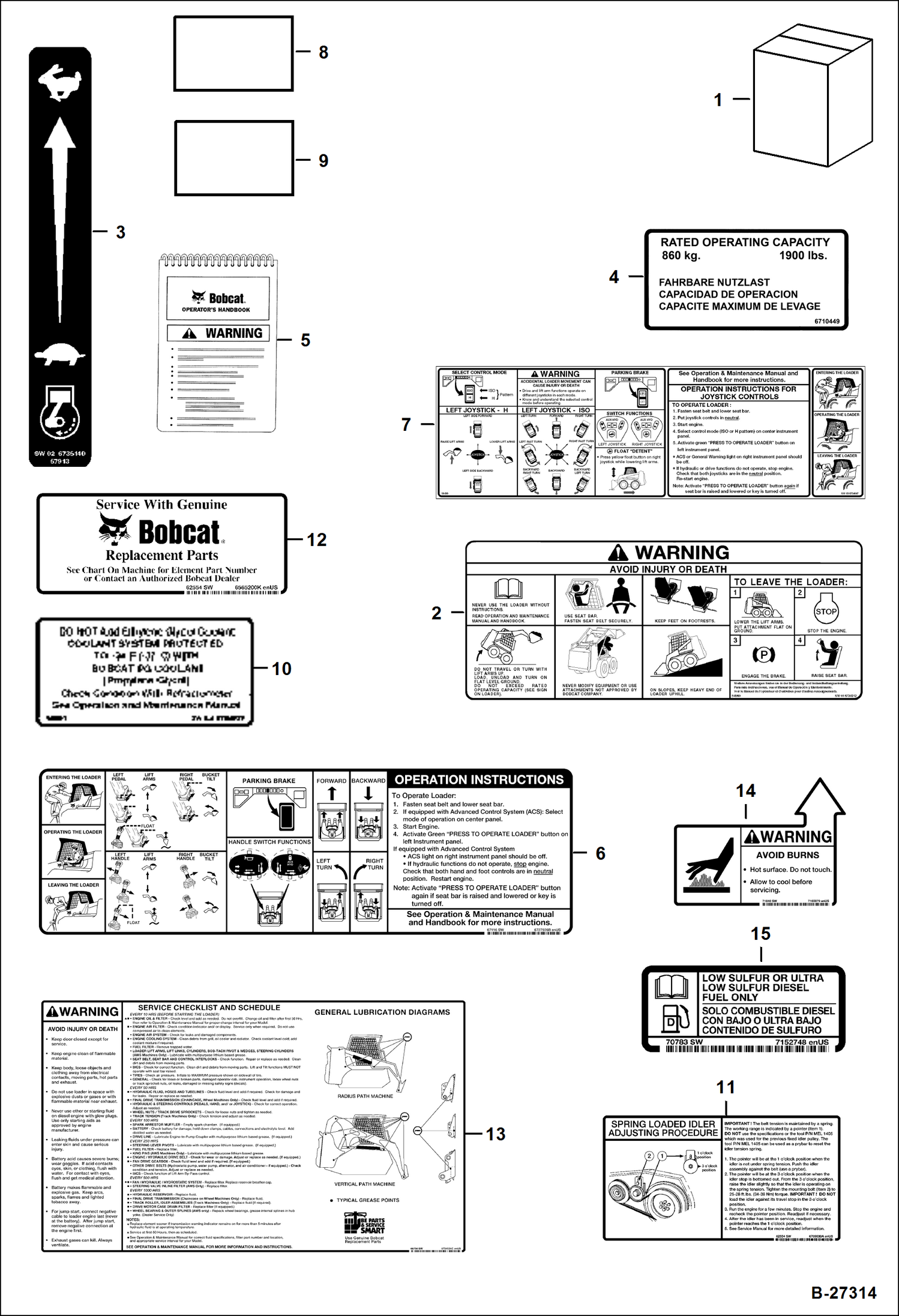

Запчасти Bobcat T-Series DECALS (Inside) ACCESSORIES & OPTIONS

1

6986501

KIT, DECAL

1

7164423AR

KIT, DECAL TRANSLATION

1

7164423BR

KIT, DECAL TRANSLATION

1

7164423CA

KIT, DECAL TRANSLATION Was 7164423JP - D

1

7164424AR

KIT, TRANSLATION translation

1

7164424BR

KIT, TRANSLATION translation

2

6728540

DECAL, WARNING

2

6735255

DECAL, WARNING selectable joystick controls - not in kit

3

6735140

DECAL, THROTTLE

4

7184775

DECAL, CAPACITY LIFT Was 6710449 - A

5

6986652

OHB, W WIRE ROPE - operation & maintenance - W/wire rope - not in kit - Was 6902808 - B,D

5

6558309

WIRE ROPE bulk - sold per foot - Also Order (2) of 6558310 sleeve

5

6558310

SLEEVE wire rope

5

17C512

BOLT 5

5

61D5

NUT

5

84G3112

BOLT 5

6

6727926

DECAL, OPERATION hand & foot controls - not in kit

7

6735256

DECAL, OPERATION seat & seat bar operation - selectable joystick controls - not in kit

8

6553976

SAFETY TREAD 127 x 203 mm (5 x 8'')

9

6554100

TREAD 76,2 x 152,4 mm (3 x 6'')

10

6708929

DECAL, COOLANT propylene glycol

11

6709030

DECAL belt tension - spring loaded idler

12

6565200

DECAL, FILTER not in kit

13

6734534

DECAL, SERVICE service checklist & schedule

14

7160879

DECAL warning

15

7152748

DECAL, FUEL DIESEL low sulfer
