Запчасти Bobcat T-Series FUEL & INJECTION PUMP POWER UNIT

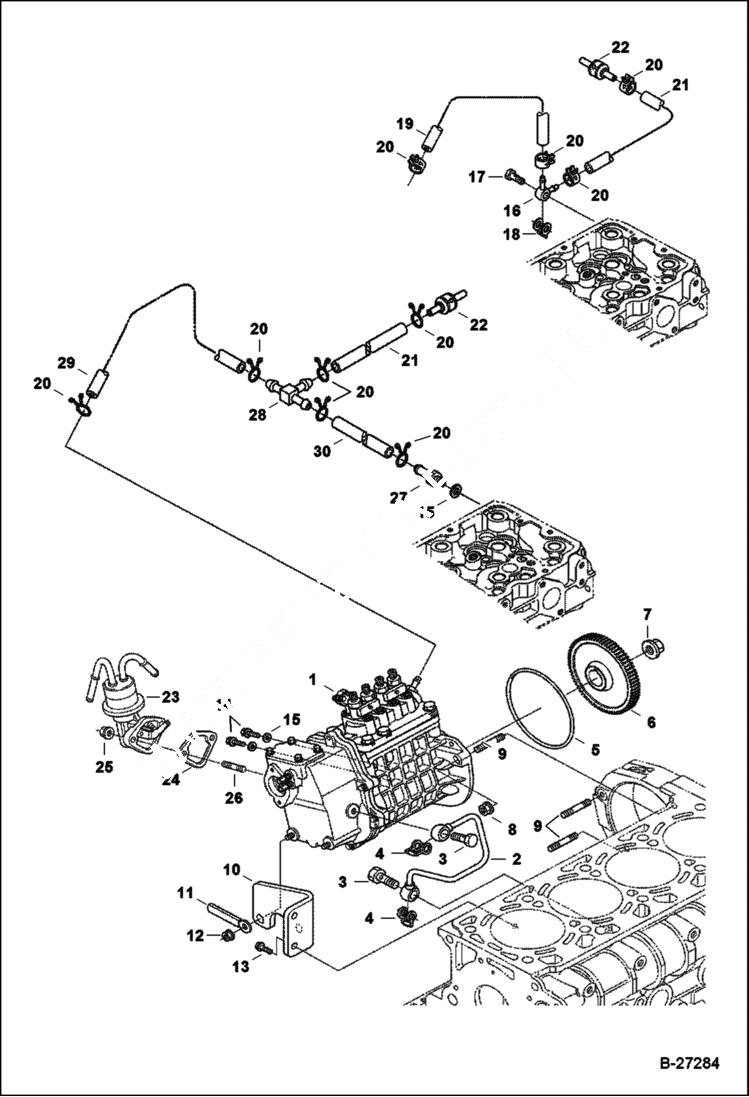

Схема запчастей Bobcat T-Series - FUEL & INJECTION PUMP POWER UNIT

Артикул

Название

Примечание

Количество

1

7000484

PUMP, FUEL INJ W/GOVERNOR See BTI418ldr

1

7020982

PUMP, FUEL INJ UNIT See BTI418ldr - Was 7012016 - A

2

7000711

PIPE, OIL

3

6680900

BOLT

4

6685962

WASHER, SEALING ALUMINUM

5

7000618

GASKET, PUMP INJ

6

7000722

GEAR, PUMP INJ

7

7000613

NUT

8

6969819

NUT, FLANGE

9

6685919

STUD

10

7000723

BRACKET, PUMP INJ

11

6653891

CLAMP

12

6969819

NUT, FLANGE

13

6680662

BOLT

14

6680662

BOLT

14

6680815

SET SCREW for locking pump when removing for service

15

3974095

MET-GASK

16

7000627

FITTING, BANJO

16

7008517

FITTING, BANJO

17

7022765

BOLT, EYE Was 6680791 - A

18

6698528

WASHER, SEALING

19

7000605

TUBE, FUEL LINE ASSY

20

6654718

CLAMP

21

7000604

TUBE, FUEL LINE ASSY

22

6680796

VALVE

23

7000767

PUMP, FUEL

24

6670782

GASKET

25

6670533

NUT

26

6680264

STUD

27

7021002

SCREW, BLEEDER AIR

28

6680797

TEE

29

7020984

TUBE FUEL

30

6687670

TUBE, FUEL LINE ASSY

Выбрано товаров: 33
