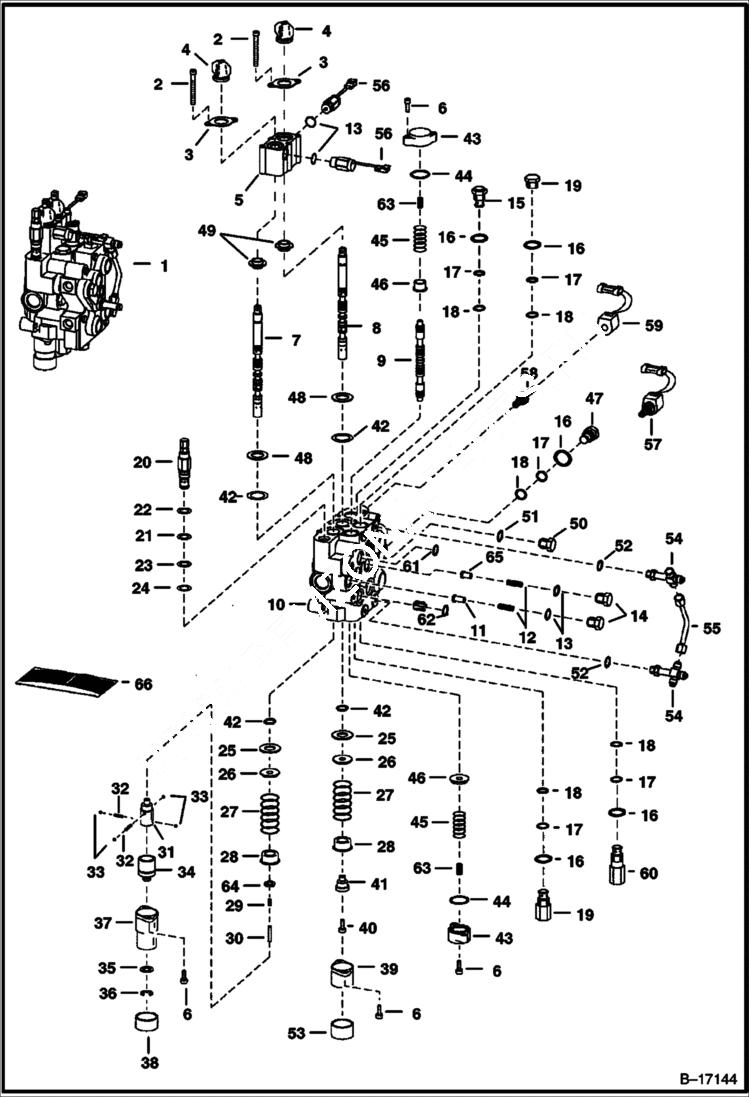

Запчасти Bobcat T-Series HYDRAULIC CONTROL VALVE (BICS Combo Valve) (S/N 5193 11001-12999, 5194 11001-11999) HYDRAULIC SYSTEM

1

VALVE See BTI336 - NLA - valve is minus all fittings, relief valves, anti-cavitation valves, solenoid coils & solenoid spools - remove & use existing parts from old valve or order new parts as needed

1

VALVE See BTI336 - NLA - valve is minus all fittings, relief valves, anti-cavitation valves, solenoid coils & solenoid spools - remove & use existing parts from old valve or order new parts as needed

1

6628571

VALVE ASSY See Illustration BICS CONTROL VALVE/ TS1365

2

29G444

BOLT

3

6589564

RETAINER

4

6587763

BOOT

5

6812031

BLOCK Was 6805657 - A

6

29G416

BOLT

7

6674808

SPOOL lift

8

6815152

SPOOL, TILT Was 6811412 - A

9

6588074

SPOOL auxiliary

10

BODY NSS

11

6592115

SEAT load check

12

6592117

SPRING, LOAD CHECK

13

79K8

O RING 10

14

6592116

NUT load check

15

6667549

VALVE anti-cavity check -W/Ref. 16-18

16

79K10

O RING 10

17

80K14

BACK-UP WASHER Was 73K000014B - B

18

58K014

O-RING 10

19

6678574

RELIEF VALVE port relief - W/Ref. 16-18 - Was 6673184 - A

20

VALVE NLA - main relief - W/Ref. 21-24 - pressure preset at factory - Was 6677669 - A

20

7219324

VALVE, RELIEF W/ O-rings - pressure to be set in field - Was 6686360 - A

21

58K017

O-RING 10

22

6665569

WASHER back-up

23

25K20016

O RING 10

24

6665570

RING glide

25

6595663

BUSHING

26

7211397

WASHER, SPRING Was 6587523 - A

27

6587580

SPRING

28

6592100

COLLAR

29

6596807

PLUG plastic - 0.46'' long

30

6586918

SCREW

31

6587575

ADAPTER

32

6592107

SPRING

33

6592105

BALL

34

6531270

SLEEVE, DETENT

35

6592098

WASHER

36

799119

RING

37

6589226

COVER, END 0.63'' flange

38

6660644

CAP

39

7101345

BONNET, DETENT HYD VALVE Was 6587633 - A

40

30G416

BOLT

41

6592109

ADAPTER

42

6683274

SEAL, SPOOL 10 spool - Was 6665846 - A

43

6588781

END CAP

44

58K124

O RING 10

45

6806007

SPRING

46

7108780

SLEEVE Was 6595951 - A

47

6592720

PLUG W/Ref. 16-18

48

1K127

O-RING 10 Was 93K127 - A

49

7202038

BUSHING, ALIGNMENT Also Order 82K019 alignment O-ring - Was 6805102 - A

50

PLUG NLA - W/Ref. 51 - tapered boss face - allen socket head - Was 90KV00008B - A

50

90K8

PLUG W/Ref. 51 - flat boss face - allen socket head

51

95K12

O-RING tapered boss face

51

75K12

O'RING 10 flat boss face

52

99K6

O RING tapered boss face

52

79K6

O RING 10 flat boss face

53

6662848

CAP

54

6817553

CROSS W/Ref. 52 - flat boss face - Was 6805241 - A

54

97K6

O RING flared end

55

6577690

TUBE

56

6676029

SOLENOID, LOCK SPOOL 127 mm (5'') wire - Was 6677383 - B,D

57

6665084

SOLENOID W/Ref. 58 & 59

57

6586459

SEAL KIT

58

6666616

STEM

58

79K7

O RING 10

59

6717706

COIL, 10 VOLT 10 volt

59

6676566

NUT

60

6678552

VALVE standard - port relief & anti-cav. W/Ref. 16 - 3500 PSI - use in tilt cylinder base end port - Was 6671632 - A

61

55K204

O RING 10 See Illustration BICS CONTROL VALVE/ TS1365

62

55K212

O RING 10 See Illustration BICS CONTROL VALVE/ TS1365

63

6596332

SPRING

64

54K20002

O'RING 10

65

6596569

SEAT

66

6816252

SEAL KIT two spool - Ref. 2, 4, 29, 42, 48 & 64 - Was 6806941 - A

66

6632279

KIT, SEAL main relief - Ref. 21-24

66

6809425

SEAL KIT Ref. 13 & 16-18

66

6816253

KIT, SEAL complete - Ref. 2, 4, 6, 13, 16-18, 21-24, 42, 44, 48, 52, 58, 61 & 62 - Was 6809448 - A
