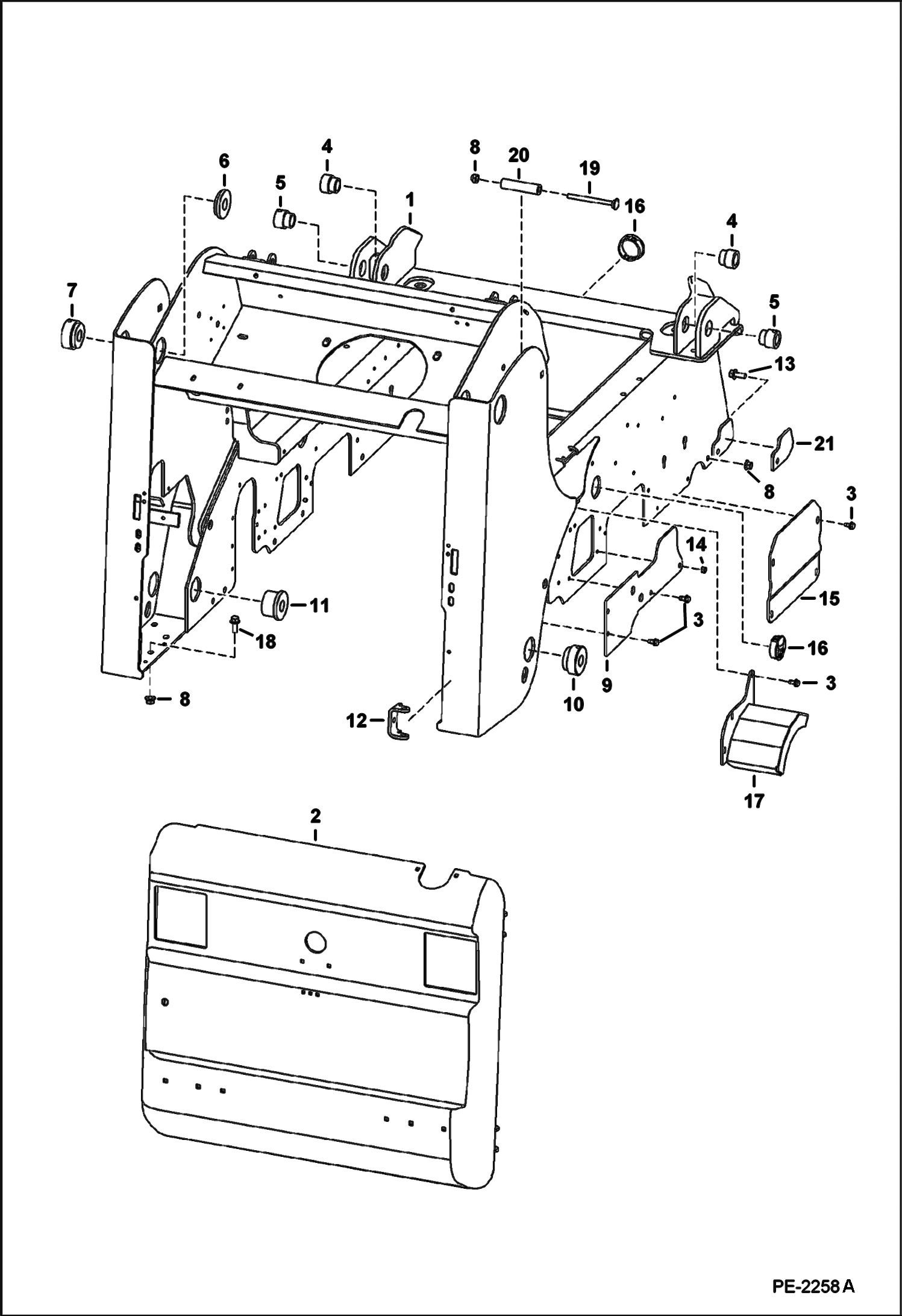

Запчасти Bobcat T-Series MAIN FRAME (S/N A3LN36500 & Above, A3LP36500 & Above) MAIN FRAME

1

7141836

MAINFRAME - Uses hyd oil filter mounted W/ports vertical

2

6729991

REAR DOOR

3

84G3712

BOLT 5

4

6717278

BUSHING, WELD-ON

5

6717277

BUSHING, WELD-ON weld on

6

6717356

BUSHING, WELD-ON weld on

7

6731578

BUSHING, WELD-ON

8

83D8

NUT 5

9

6726063

SHIELD lever

10

6731578

BUSHING, WELD-ON

11

6717358

BUSHING WELD-ON weld on

12

6708987

HINGE, WELD-ON

13

31C820

BOLT

14

61D6

NUT 5

15

6719201

COVER

16

6718796

PLUG

17

7172684

SHIELD, W/A RH 6.09'' (155 mm) wide - 320 mm track W/solid mounted suspension

17

7172688

SHIELD, W/A RH 7.44'' (189 mm) wide - 400 mm track W/solid mounted suspension

17

7172686

SHIELD, W/A RH 7.97'' (202 mm) wide - 320 mm or 400 mm track W/roller suspension

17

7172685

SHIELD, W/A LH 6.09'' (155 mm) wide - 320 mm track W/solid mounted suspension

17

7172689

SHIELD, W/A LH 7.44'' (189 mm) wide - 400 mm track W/solid mounted suspension

17

7172687

SHIELD, W/A LH 7.97'' (202 mm) wide - 320 mm or 400 mm track W/roller suspension

18

31C828

BOLT

19

10C888

BOLT Was 37C888 - D

20

6732225

SPACER tube

21

7141656

PLATE, WELD-ON weld-on
