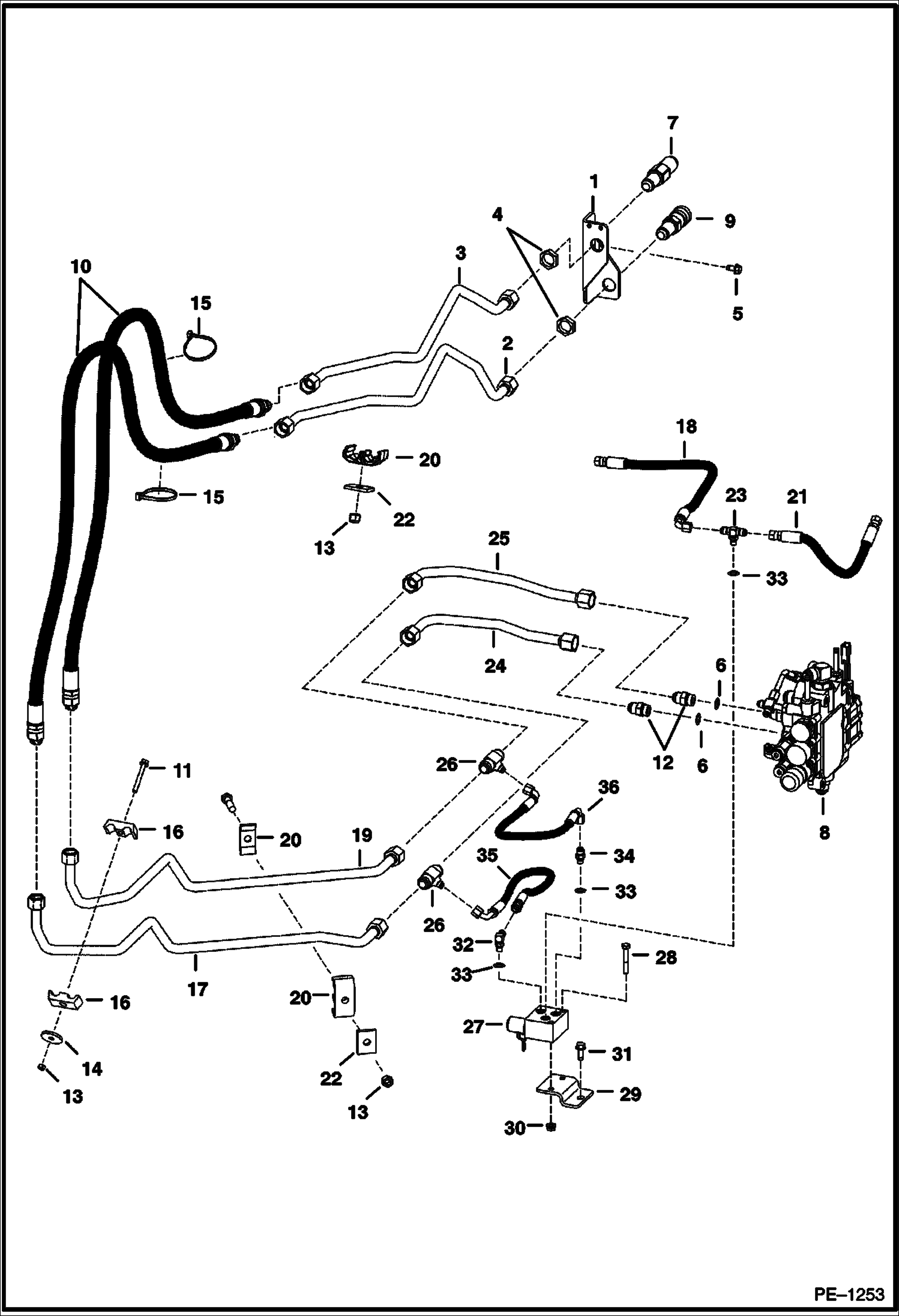

Запчасти Bobcat T-Series AUXILIARY HYDRAULICS (W/Pressure Relief Block) (S/N 5193 12091 & Bel, 5194 11186 & Bel) HYDRAULIC SYSTEM

1

6714665

MOUNT

2

6727649

TUBE

3

6727658

TUBE

4

86F8

NUT 5

5

84G3712

BOLT 5

6

99K12

O RING tapered boss face

6

79K12

O RING 10 flat boss face

7

6676445

COUPLER male - FF

8

VALVE See Illustration HYDRAULIC CONTROL VALVE/ B17144

9

6676447

COUPLER female - FF

10

6727657

HOSE W/cover

11

84G3736

BOLT

12

ADAPTER NLA - W/Ref. 6 - tapered boss face - Was 15KV00008B - A

12

97K12

O'RING flared end

12

15KB1212

FITTING, HYD CONNECTOR W/Ref. 6 - flat boss face

13

59D8

NUT 5

14

872229

WASHER

15

6624289

STRAP, TIE

16

6592506

CLAMP

17

6726186

TUBE

18

6702669

HOSE

19

6726185

TUBE

20

6717951

CLAMP

21

6717385

HOSE

22

6553709

WASHER

23

19KB0604

FITTING, HYD TEE W/Ref. 33 - flat boss face - Use W/Ref. 27 (NLA/6674372 Valve) - Was 6718183 - A

23

97K6

O RING flared end

23

TEE NLA - W/Ref. 33 - tapered boss face - Use W/Ref. 27 (6678150 Valve) - Was 19KV00005B - A

23

97K6

O RING flared end

23

19KB0606

TEE W/Ref. 33 - flat boss face

24

6726188

TUBE

25

6726187

TUBE

26

6717923

TEE

26

97K12

O'RING flared end

27

VALVE See Illustration PRESSURE RELEASE VALVE/ PE1017 NLA - W/.4375'' THREADED PORTS - ORDER 6678150 VALVE, REF. 23 (19KB-606 TEE), REF. 32 (17KB-606 ELBOW) & REF. 34 (15KB-606 ADAPTER) - WAS 6674372

27

6678150

VALVE See Illustration PRESSURE RELEASE VALVE/ PE1017 W/.5625'' THREADED PORTS

28

17C636

BOLT

29

6717384

BRACKET

30

55D6

NUT

31

84G3716

SCREW 5

32

17KB0604

ELBOW UNION W/Ref. 33 - flat boss face - Use W/Ref. 27 (NLA/6674372 Valve) - Was 6718182 - A

32

ELBOW NLA - W/Ref. 33 - tapered boss face - Use W/Ref. 27 (6678150 Valve) - Was 17KV00005B - A

32

97K6

O RING flared end

32

17KB0606

FITTING W/Ref. 33 - flat boss face

33

79K4

O RING 10 flat boss face

33

99K6

O RING tapered boss face

34

15KB0604

FTG HYD S CONNECTOR W/Ref. 33 (79K4) - flat boss face - Use W/Ref. 27 (NLA/ 6674372 valve)

34

ADAPTER NLA - W/Ref. 33 - tapered boss face - Use W/Ref. 27 (6678150 Valve) - Was 15KV00005B - A

34

97K6

O RING flared end

34

15KB0606

FITTING, HYD CONNECTOR W/Ref. 33 - flat boss face

35

6726270

HOSE

36

6717387

HOSE
